Demo 14 of 68 in category RedBook
 |
# colormat.tcl
#
# An example of the OpenGL red book modified to work with Tcl3D.
# The original C sources are Copyright (c) 1993-2003, Silicon Graphics, Inc.
# The Tcl3D sources are Copyright (c) 2005-2022, Paul Obermeier.
# See file LICENSE for complete license information.
#
# After initialization, the program will be in
# ColorMaterial mode. Interaction: pressing the
# mouse buttons will change the diffuse reflection values.
package require tcl3d
set diffuseMaterial { 0.5 0.5 0.5 1.0 }
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc AddEvents {} {
event add <<LeftMousePress>> <ButtonPress-1>
if { $::tcl_platform(os) eq "Darwin" } {
event add <<MiddleMousePress>> <ButtonPress-3>
event add <<RightMousePress>> <ButtonPress-2>
event add <<RightMousePress>> <Control-ButtonPress-1>
} else {
event add <<MiddleMousePress>> <ButtonPress-2>
event add <<RightMousePress>> <ButtonPress-3>
}
}
# Initialize material property, light source, lighting model,
# and depth buffer.
#
proc CreateCallback { toglwin } {
global diffuseMaterial
set mat_specular { 1.0 1.0 1.0 1.0 }
set light_position { 1.0 1.0 1.0 0.0 }
glClearColor 0.0 0.0 0.0 0.0
glShadeModel GL_SMOOTH
glEnable GL_DEPTH_TEST
glMaterialfv GL_FRONT GL_DIFFUSE $diffuseMaterial
glMaterialfv GL_FRONT GL_SPECULAR $mat_specular
glMaterialf GL_FRONT GL_SHININESS 25.0
glLightfv GL_LIGHT0 GL_POSITION $light_position
glEnable GL_LIGHTING
glEnable GL_LIGHT0
glColorMaterial GL_FRONT GL_DIFFUSE
glEnable GL_COLOR_MATERIAL
}
proc DisplayCallback { toglwin } {
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glutSolidSphere 1.0 20 16
glFlush
$toglwin swapbuffers
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
glMatrixMode GL_PROJECTION
glLoadIdentity
if { $w <= $h } {
glOrtho -1.5 1.5 [expr -1.5*double($h)/double($w)] \
[expr 1.5*double($h)/double($w)] -10.0 10.0
} else {
glOrtho [expr -1.5*double($w)/double($h)] \
[expr 1.5*double($w)/double($h)] -1.5 1.5 -10.0 10.0
}
glMatrixMode GL_MODELVIEW
glLoadIdentity
}
proc changeDiffuse { comp } {
global diffuseMaterial
lset diffuseMaterial $comp [expr [lindex $diffuseMaterial $comp] + 0.1]
if { [lindex $diffuseMaterial $comp] > 1.0 } {
lset diffuseMaterial $comp 0.0
}
glColor4fv $diffuseMaterial
.fr.toglwin postredisplay
}
proc ChangeRedDiffuse {} {
changeDiffuse 0
}
proc ChangeGreenDiffuse {} {
changeDiffuse 1
}
proc ChangeBlueDiffuse {} {
changeDiffuse 2
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width 500 -height 500 -double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 4
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

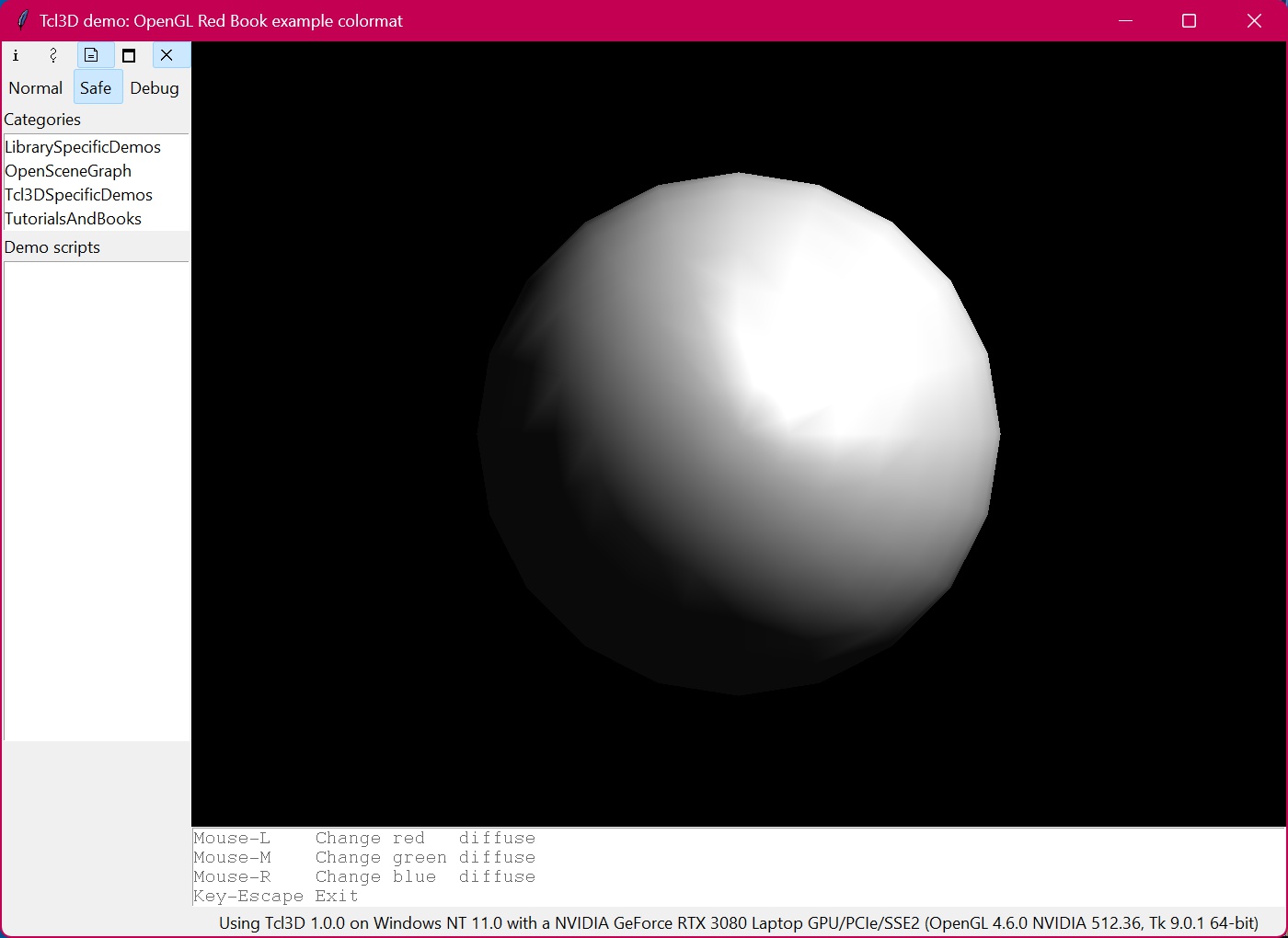

wm title . "Tcl3D demo: OpenGL Red Book example colormat"
AddEvents
bind .fr.toglwin <<LeftMousePress>> "ChangeRedDiffuse"
bind .fr.toglwin <<MiddleMousePress>> "ChangeGreenDiffuse"
bind .fr.toglwin <<RightMousePress>> "ChangeBlueDiffuse"
bind . <Key-Escape> "exit"
.fr.usage insert end "Mouse-L Change red diffuse"
.fr.usage insert end "Mouse-M Change green diffuse"
.fr.usage insert end "Mouse-R Change blue diffuse"
.fr.usage insert end "Key-Escape Exit"
.fr.usage configure -state disabled
PrintInfo [tcl3dOglGetInfoString]
|
