# Lesson13.tcl
#
# NeHe's Bitmap Font Tutorial
#
# This Code Was Created By Jeff Molofee 2000
# Modified by Shawn T. to handle (%3.2f, num) parameters.
# A HUGE Thanks To Fredric Echols For Cleaning Up
# And Optimizing The Base Code, Making It More Flexible!
# If You've Found This Code Useful, Please Let Me Know.
# Visit My Site At nehe.gamedev.net
#
# Modified for Tcl3D by Paul Obermeier 2006/01/25
# See www.tcl3d.org for the Tcl3D extension.
package require tcl3d
# Font to be used in the Tk listbox.
set gDemo(listFont) {-family {Courier} -size 10}
# Display mode.
set gDemo(fullScreen) false
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
set gDemo(cnt1) 0.0 ; # 1st Counter Used To Move Text & For Coloring
set gDemo(cnt2) 0.0 ; # 2nd Counter Used To Move Text & For Coloring
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetFullScreenMode { win } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win $sw $sh
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+0" $sw $sh]
wm geometry $win $fmtStr
wm overrideredirect $win 1
focus -force $win
}
proc SetWindowMode { win w h } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win 10 10
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+25" $w $h]
wm geometry $win $fmtStr
wm overrideredirect $win 0
focus -force $win
}
# Toggle between windowing and fullscreen mode.
proc ToggleWindowMode {} {
if { $::gDemo(fullScreen) } {
SetFullScreenMode .
set ::gDemo(fullScreen) false
} else {
SetWindowMode . $::gDemo(winWidth) $::gDemo(winHeight)
set ::gDemo(fullScreen) true
}
}
# Custom GL "Print" Routine
proc printString { str font } {
set len [string length $str]
if { $len > 0 } {
glPushAttrib GL_LIST_BIT
glListBase $font
set sa [tcl3dVectorFromString GLubyte $str]
glCallLists $len GL_UNSIGNED_BYTE $sa
$sa delete
glPopAttrib
}
}
# Resize And Initialize The GL Window
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h ; # Reset The Current Viewport
glMatrixMode GL_PROJECTION ; # Select The Projection Matrix
glLoadIdentity ; # Reset The Projection Matrix
# Calculate The Aspect Ratio Of The Window
gluPerspective 45.0 [expr double($w)/double($h)] 0.1 100.0
glMatrixMode GL_MODELVIEW ; # Select The Modelview Matrix
glLoadIdentity ; # Reset The Modelview Matrix
set ::gDemo(winWidth) $w
set ::gDemo(winHeight) $h
}
# All Setup For OpenGL Goes Here
proc CreateCallback { toglwin } {
glShadeModel GL_SMOOTH ; # Enable Smooth Shading
glClearColor 0.0 0.0 0.0 0.5 ; # Black Background
glClearDepth 1.0 ; # Depth Buffer Setup
glEnable GL_DEPTH_TEST ; # Enables Depth Testing
glDepthFunc GL_LEQUAL ; # The Type Of Depth Testing To Do
glHint GL_PERSPECTIVE_CORRECTION_HINT GL_NICEST ; # Really Nice Perspective Calculations
# Build The Font
set fontName "-*-courier-bold-r-*-*-24-*-*-*-*-*-*-*"
set retVal [catch { $toglwin loadbitmapfont $fontName } ::fontBase]
if { $retVal != 0 } {
set ::fontBase [$toglwin loadbitmapfont]
}
}
proc Animate {} {
.fr.toglwin postredisplay
set ::animateId [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
if { ! [info exists ::animateId] } {
Animate
}
}
proc StopAnimation {} {
if { [info exists ::animateId] } {
after cancel $::animateId
unset ::animateId
}
}
# Here's Where We Do All The Drawing
proc DisplayCallback { toglwin } {
# Clear Screen And Depth Buffer
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glLoadIdentity ; # Reset The Current Modelview Matrix
glTranslatef 0.0 0.0 -1.0 ; # Move One Unit Into The Screen
# Pulsing Colors Based On Text Position
glColor3f [expr {double(cos($::gDemo(cnt1)))}] \
[expr {double(sin($::gDemo(cnt2)))}] \
[expr {1.0-0.5*double(cos($::gDemo(cnt1)+$::gDemo(cnt2)))}]
# Position The Text On The Screen
glRasterPos2f [expr {-0.45+0.05*double(cos($::gDemo(cnt1)))}] \
[expr {0.32*double(sin($::gDemo(cnt2)))}]
# Print GL Text To The Screen
printString [format "Active OpenGL Text With NeHe - %7.2f" $::gDemo(cnt1)] $::fontBase
set ::gDemo(cnt1) [expr $::gDemo(cnt1) + 0.051] ; # Increase The First Counter
set ::gDemo(cnt2) [expr $::gDemo(cnt2) + 0.005] ; # Increase The Second Counter
$toglwin swapbuffers
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
frame .fr
pack .fr -expand 1 -fill both
# Create Our OpenGL Window
togl .fr.toglwin -width $::gDemo(winWidth) -height $::gDemo(winHeight) \
-swapinterval 1 \
-double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::gDemo(listFont) -height 3
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

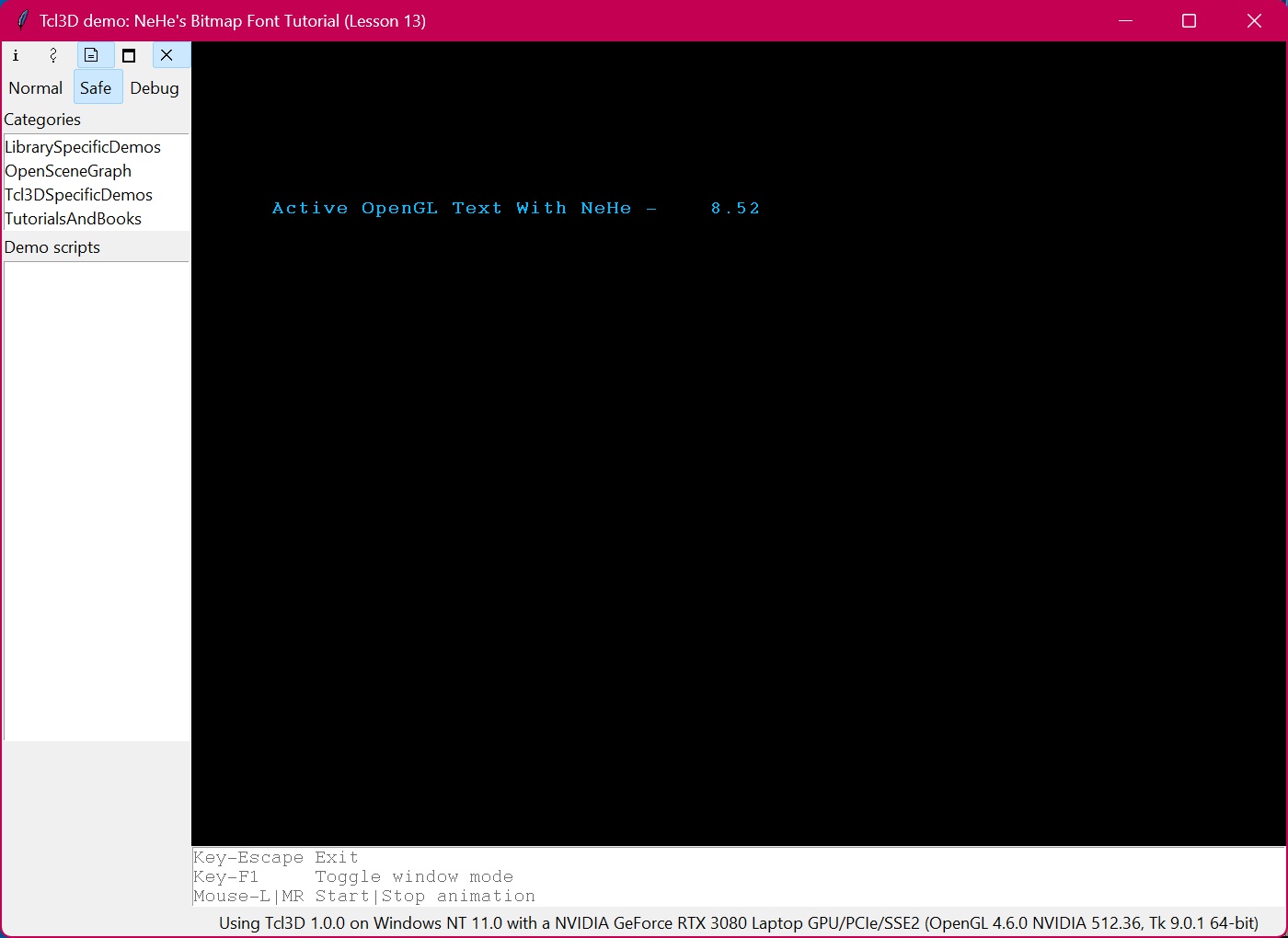

wm title . "Tcl3D demo: NeHe's Bitmap Font Tutorial (Lesson 13)"
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-F1> "ToggleWindowMode"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-F1 Toggle window mode"
.fr.usage insert end "Mouse-L|MR Start|Stop animation"
.fr.usage configure -state disabled
}
CreateWindow
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
