Demo 12 of 35 in category NeHe
 |
# Lesson12.tcl
#
# NeHe's Display List Tutorial
#
# This Code Was Created By Jeff Molofee 2000
# A HUGE Thanks To Fredric Echols For Cleaning Up
# And Optimizing This Code, Making It More Flexible!
# If You've Found This Code Useful, Please Let Me Know.
# Visit My Site At nehe.gamedev.net
#
# Modified for Tcl3D by Paul Obermeier 2006/01/25
# See www.tcl3d.org for the Tcl3D extension.
package require Img
package require tcl3d
# Font to be used in the Tk listbox.
set gDemo(listFont) {-family {Courier} -size 10}
# Determine the directory of this script.
set gDemo(scriptDir) [file dirname [info script]]
# Display mode.
set gDemo(fullScreen) false
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
set gDemo(xrot) 0.0 ; # Rotates Cube On The X Axis
set gDemo(yrot) 0.0 ; # Rotates Cube On The Y Axis
set gDemo(boxcol,0) {1.0 0.0 0.0}
set gDemo(boxcol,1) {1.0 0.5 0.0}
set gDemo(boxcol,2) {1.0 1.0 0.0}
set gDemo(boxcol,3) {0.0 1.0 0.0}
set gDemo(boxcol,4) {0.0 1.0 1.0}
set gDemo(topcol,0) {0.5 0.0 0.0}
set gDemo(topcol,1) {0.5 0.25 0.0}
set gDemo(topcol,2) {0.5 0.5 0.0}
set gDemo(topcol,3) {0.0 0.5 0.0}
set gDemo(topcol,4) {0.0 0.5 0.5}
set gDemo(texture) [tcl3dVector GLuint 1] ; # Storage For One Texture
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetFullScreenMode { win } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win $sw $sh
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+0" $sw $sh]
wm geometry $win $fmtStr
wm overrideredirect $win 1
focus -force $win
}
proc SetWindowMode { win w h } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win 10 10
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+25" $w $h]
wm geometry $win $fmtStr
wm overrideredirect $win 0
focus -force $win
}
# Toggle between windowing and fullscreen mode.
proc ToggleWindowMode {} {
if { $::gDemo(fullScreen) } {
SetFullScreenMode .
set ::gDemo(fullScreen) false
} else {
SetWindowMode . $::gDemo(winWidth) $::gDemo(winHeight)
set ::gDemo(fullScreen) true
}
}
# Increase/Decrease the rotation in X.
proc IncrXRot { toglwin val } {
set ::gDemo(xrot) [expr {$::gDemo(xrot) + $val}]
$toglwin postredisplay
}
# Increase/Decrease the rotation in Y.
proc IncrYRot { toglwin val } {
set ::gDemo(yrot) [expr {$::gDemo(yrot) + $val}]
$toglwin postredisplay
}
# Build Cube Display Lists
proc BuildLists {} {
set ::box [glGenLists 2] ; # Generate 2 Different Lists
glNewList $::box GL_COMPILE ; # Start With The Box List
glBegin GL_QUADS
# Bottom Face
glNormal3f 0.0 -1.0 0.0
glTexCoord2f 1.0 1.0 ; glVertex3f -1.0 -1.0 -1.0
glTexCoord2f 0.0 1.0 ; glVertex3f 1.0 -1.0 -1.0
glTexCoord2f 0.0 0.0 ; glVertex3f 1.0 -1.0 1.0
glTexCoord2f 1.0 0.0 ; glVertex3f -1.0 -1.0 1.0
# Front Face
glNormal3f 0.0 0.0 1.0
glTexCoord2f 0.0 0.0 ; glVertex3f -1.0 -1.0 1.0
glTexCoord2f 1.0 0.0 ; glVertex3f 1.0 -1.0 1.0
glTexCoord2f 1.0 1.0 ; glVertex3f 1.0 1.0 1.0
glTexCoord2f 0.0 1.0 ; glVertex3f -1.0 1.0 1.0
# Back Face
glNormal3f 0.0 0.0 -1.0
glTexCoord2f 1.0 0.0 ; glVertex3f -1.0 -1.0 -1.0
glTexCoord2f 1.0 1.0 ; glVertex3f -1.0 1.0 -1.0
glTexCoord2f 0.0 1.0 ; glVertex3f 1.0 1.0 -1.0
glTexCoord2f 0.0 0.0 ; glVertex3f 1.0 -1.0 -1.0
# Right face
glNormal3f 1.0 0.0 0.0
glTexCoord2f 1.0 0.0 ; glVertex3f 1.0 -1.0 -1.0
glTexCoord2f 1.0 1.0 ; glVertex3f 1.0 1.0 -1.0
glTexCoord2f 0.0 1.0 ; glVertex3f 1.0 1.0 1.0
glTexCoord2f 0.0 0.0 ; glVertex3f 1.0 -1.0 1.0
# Left Face
glNormal3f -1.0 0.0 0.0
glTexCoord2f 0.0 0.0 ; glVertex3f -1.0 -1.0 -1.0
glTexCoord2f 1.0 0.0 ; glVertex3f -1.0 -1.0 1.0
glTexCoord2f 1.0 1.0 ; glVertex3f -1.0 1.0 1.0
glTexCoord2f 0.0 1.0 ; glVertex3f -1.0 1.0 -1.0
glEnd
glEndList
set ::top [expr $::box+1] ; # Storage For "Top" Is "Box" Plus One
glNewList $::top GL_COMPILE ; # Now The "Top" Display List
glBegin GL_QUADS
# Top Face
glNormal3f 0.0 1.0 0.0
glTexCoord2f 0.0 1.0 ; glVertex3f -1.0 1.0 -1.0
glTexCoord2f 0.0 0.0 ; glVertex3f -1.0 1.0 1.0
glTexCoord2f 1.0 0.0 ; glVertex3f 1.0 1.0 1.0
glTexCoord2f 1.0 1.0 ; glVertex3f 1.0 1.0 -1.0
glEnd
glEndList
}
proc LoadGLTextures {} {
# Load texture image.
set texName [file join $::gDemo(scriptDir) "Data" "Cube.bmp"]
set retVal [catch {set phImg [image create photo -file $texName]} err1]
if { $retVal != 0 } {
error "Error reading image $texName ($err1)"
} else {
set w [image width $phImg]
set h [image height $phImg]
set n [tcl3dPhotoChans $phImg]
set TextureImage [tcl3dVectorFromPhoto $phImg]
image delete $phImg
}
glGenTextures 1 $::gDemo(texture) ; # Create The Texture
# Typical Texture Generation Using Data From The Bitmap
glBindTexture GL_TEXTURE_2D [$::gDemo(texture) get 0]
if { $n == 3 } {
set type $::GL_RGB
} else {
set type $::GL_RGBA
}
glTexImage2D GL_TEXTURE_2D 0 $n $w $h 0 $type GL_UNSIGNED_BYTE $TextureImage
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_LINEAR
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_LINEAR
$TextureImage delete ; # Free The Texture Image Memory
}
# Resize And Initialize The GL Window
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h ; # Reset The Current Viewport
glMatrixMode GL_PROJECTION ; # Select The Projection Matrix
glLoadIdentity ; # Reset The Projection Matrix
# Calculate The Aspect Ratio Of The Window
gluPerspective 45.0 [expr double($w)/double($h)] 0.1 100.0
glMatrixMode GL_MODELVIEW ; # Select The Modelview Matrix
glLoadIdentity ; # Reset The Modelview Matrix
set ::gDemo(winWidth) $w
set ::gDemo(winHeight) $h
}
# All Setup For OpenGL Goes Here
proc CreateCallback { toglwin } {
LoadGLTextures ; # Jump To Texture Loading Routine
BuildLists ; # Jump To The Code That Creates Our Display Lists
glEnable GL_TEXTURE_2D ; # Enable Texture Mapping
glShadeModel GL_SMOOTH ; # Enable Smooth Shading
glClearColor 0.0 0.0 0.0 0.5 ; # Black Background
glClearDepth 1.0 ; # Depth Buffer Setup
glEnable GL_DEPTH_TEST ; # Enables Depth Testing
glDepthFunc GL_LEQUAL ; # The Type Of Depth Testing To Do
glEnable GL_LIGHT0 ; # Quick And Dirty Lighting (Assumes Light0 Is Set Up)
glEnable GL_LIGHTING ; # Enable Lighting
glEnable GL_COLOR_MATERIAL ; # Enable Material Coloring
glHint GL_PERSPECTIVE_CORRECTION_HINT GL_NICEST ; # Really Nice Perspective Calc/startlations
}
# Here's Where We Do All The Drawing
proc DisplayCallback { toglwin } {
# Clear Screen And Depth Buffer
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glBindTexture GL_TEXTURE_2D [$::gDemo(texture) get 0]
for { set yloop 1 } { $yloop < 6 } { incr yloop } {
for { set xloop 0 } { $xloop < $yloop } { incr xloop } {
glLoadIdentity
glTranslatef [expr {1.4+(double($xloop)*2.8)-(double($yloop)*1.4)}] \
[expr {((6.0-double($yloop))*2.4)-7.0}] \
-20.0
glRotatef [expr {45.0-(2.0*$yloop)+$::gDemo(xrot)}] 1.0 0.0 0.0
glRotatef [expr {45.0+$::gDemo(yrot)}] 0.0 1.0 0.0
set yloop1 [expr {$yloop - 1}]
glColor3fv $::gDemo(boxcol,$yloop1)
glCallList $::box
glColor3fv $::gDemo(topcol,$yloop1)
glCallList $::top
}
}
$toglwin swapbuffers
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
frame .fr
pack .fr -expand 1 -fill both
# Create Our OpenGL Window
togl .fr.toglwin -width $::gDemo(winWidth) -height $::gDemo(winHeight) \
-double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::gDemo(listFont) -height 4
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

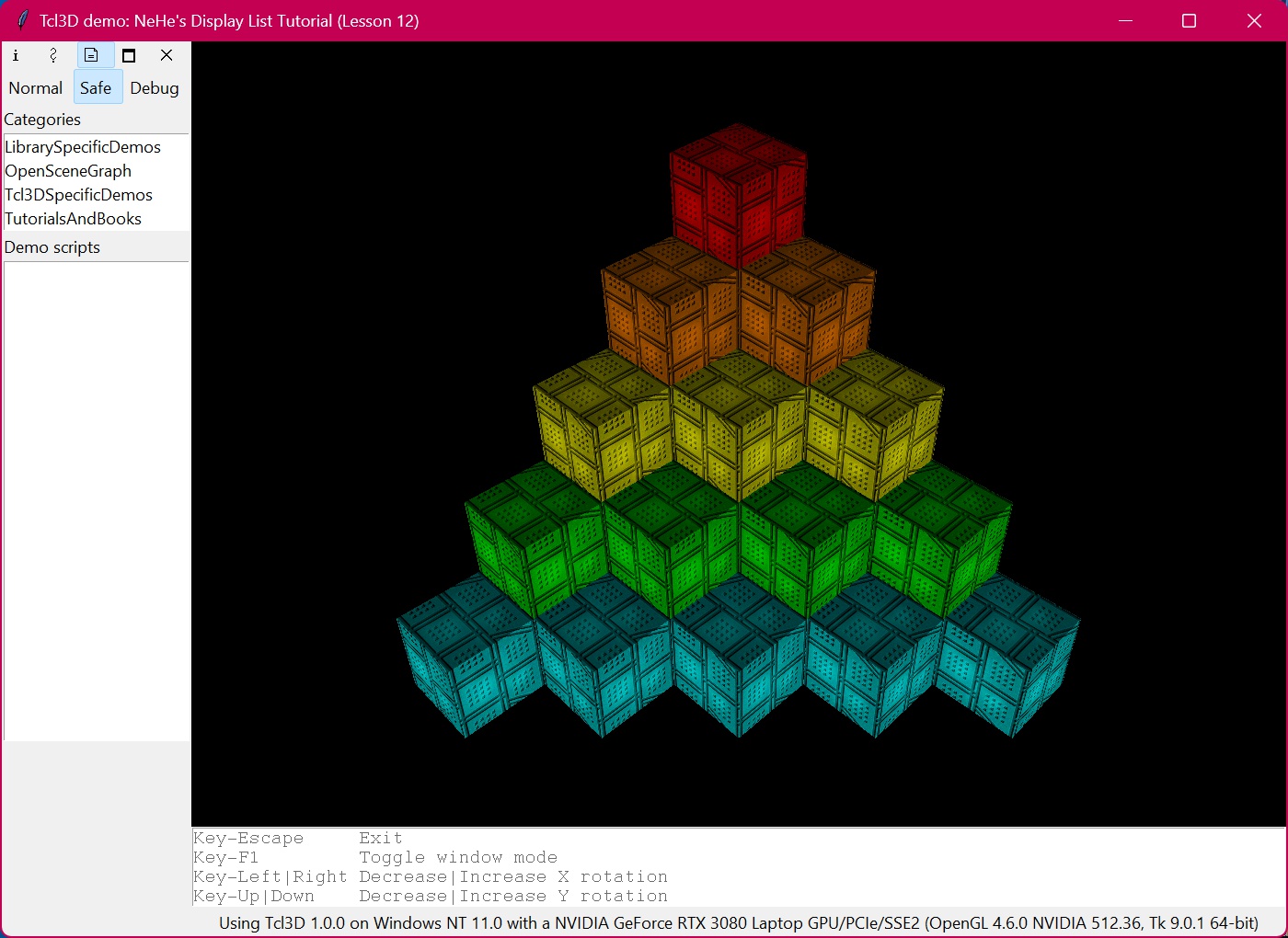

wm title . "Tcl3D demo: NeHe's Display List Tutorial (Lesson 12)"
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-F1> "ToggleWindowMode"
bind . <Key-Left> "IncrYRot .fr.toglwin -0.5"
bind . <Key-Right> "IncrYRot .fr.toglwin 0.5"
bind . <Key-Up> "IncrXRot .fr.toglwin -0.5"
bind . <Key-Down> "IncrXRot .fr.toglwin 0.5"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-F1 Toggle window mode"
.fr.usage insert end "Key-Left|Right Decrease|Increase X rotation"
.fr.usage insert end "Key-Up|Down Decrease|Increase Y rotation"
.fr.usage configure -state disabled
}
CreateWindow
PrintInfo [tcl3dOglGetInfoString]
|
