# GL_Shadow.tcl
#
# Tutorial from www.GameProgrammer.org
# Stencil shadows.
#
# Original code Copyright 2005 by Vahid Kazemi
#
# Modified for Tcl3D by Paul Obermeier 2006/09/10
# See www.tcl3d.org for the Tcl3D extension.
package require tcl3d
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Window size.
set winWidth 640
set winHeight 480
set PI 3.1415926535
set SIDES_NUM 100
set light_position { -1.0 3.0 0.0 1.0 }
set LX [lindex $light_position 0]
set LY [lindex $light_position 1]
set LZ [lindex $light_position 2]
set shadow_matrix [list \
$LY 0.0 0.0 0.0 \
[expr -1*$LX] 0.0 [expr -1*$LZ] -1.0 \
0.0 0.0 $LY 0.0 \
0.0 0.0 0.0 $LY]
set rot 0.0
set rotIncr 0.1
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
# Set the rotation increment.
proc SetRotSpeed { val } {
set ::rotIncr [expr $::rotIncr + $val]
if { $::rotIncr < 0.0 } {
set ::rotIncr 0.0
}
}
proc DrawCylinder { alpha shadow } {
glPushMatrix
if { $shadow } {
glMultMatrixf $::shadow_matrix
glDisable GL_LIGHTING
glDepthMask GL_FALSE
glEnable GL_POLYGON_OFFSET_FILL
glEnable GL_BLEND
glBlendFunc GL_SRC_ALPHA GL_ONE_MINUS_SRC_ALPHA
glColor4f 0 0 0 0.7
}
glTranslatef 0 1.5 0
glRotatef $alpha 1.0 0.5 0.3
set numSides [expr {$::SIDES_NUM+1}]
set factor [expr {2*$::PI/$::SIDES_NUM}]
glBegin GL_TRIANGLE_STRIP
for { set i 0 } { $i < $numSides } { incr i } {
set x [expr {0.5*sin($i*$factor)}]
set y [expr {0.5*cos($i*$factor)}]
set d [expr {sqrt($x*$x+$y*$y)}]
glNormal3f [expr {$x/$d}] [expr {$y/$d}] 0
glVertex3f $x $y -0.5
glNormal3f [expr {$x/$d}] [expr {$y/$d}] 0
glVertex3f $x $y 0.5
}
glEnd
glBegin GL_TRIANGLE_FAN
glNormal3f 0.0 0.0 -1.0
glVertex3f 0.0 0.0 -0.5
for { set i 0 } { $i < $numSides } { incr i } {
set x [expr {0.5*sin($i*$factor)}]
set y [expr {0.5*cos($i*$factor)}]
set d [expr {sqrt($x*$x+$y*$y)}]
glVertex3f $x $y -0.5
}
glEnd
glBegin GL_TRIANGLE_FAN
glNormal3f 0.0 0.0 1.0
glVertex3f 0.0 0.0 0.5
for { set i 0 } { $i < $numSides } { incr i } {
set x [expr {0.5*sin(-1.0*$i*$factor)}]
set y [expr {0.5*cos(-1.0*$i*$factor)}]
set d [expr {sqrt($x*$x+$y*$y)}]
glVertex3f $x $y 0.5
}
glEnd
if { $shadow } {
glDisable GL_BLEND
glEnable GL_LIGHTING
glDepthMask GL_TRUE
glDisable GL_POLYGON_OFFSET_FILL
}
glPopMatrix
}
proc DrawLight {} {
glDisable GL_LIGHTING
glPushMatrix
glTranslatef $::LX $::LY $::LZ
set quadric [gluNewQuadric]
gluSphere $quadric 0.1 $::SIDES_NUM $::SIDES_NUM
gluDeleteQuadric $quadric
glPopMatrix
glEnable GL_LIGHTING
}
proc DrawGround {} {
glNormal3f 0 1 0
glBegin GL_QUADS
glVertex3f -5 0 -5
glVertex3f -5 0 +5
glVertex3f +5 0 +5
glVertex3f +5 0 -5
glEnd
}
# The Togl callback function called when window is resized.
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
}
# The Togl callback function called when window is created.
proc CreateCallback { toglwin } {
glMatrixMode GL_PROJECTION
glLoadIdentity
gluPerspective 45.0 1.3 0.1 1000.0
glMatrixMode GL_MODELVIEW
glLoadIdentity
glTranslatef 0 0 -7
glRotatef 30 1 0 0
set light_diffuse { 0.7 1.0 0.7 1.0 }
set material_diffuse { 0.0 0.5 0.0 1.0 }
set material_specular { 1.0 1.0 1.0 1.0 }
set material_shininess { 10.0 }
glEnable GL_DEPTH_TEST
glShadeModel GL_SMOOTH
glDepthFunc GL_LEQUAL
glLightfv GL_LIGHT0 GL_POSITION $::light_position
glLightfv GL_LIGHT0 GL_DIFFUSE $light_diffuse
glMaterialfv GL_FRONT GL_AMBIENT_AND_DIFFUSE $material_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $material_specular
glMaterialfv GL_FRONT GL_SHININESS $material_shininess
glEnable GL_LIGHTING
glEnable GL_LIGHT0
glEnable GL_DEPTH_TEST
glEnable GL_CULL_FACE
glColor4f 1 1 1 1
glPolygonOffset -1 0
}
# The Togl callback function for rendering a frame.
proc DisplayCallback { toglwin } {
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
if { [info exists ::animateId] } {
set ::rot [expr {$::rot + $::rotIncr}]
}
glColor3f 1 1 1
DrawLight
DrawGround
DrawCylinder $::rot true
DrawCylinder $::rot false
$toglwin swapbuffers
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
proc Animate {} {
.fr.toglwin postredisplay
set ::animateId [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
if { ! [info exists ::animateId] } {
Animate
}
}
proc StopAnimation {} {
if { [info exists ::animateId] } {
after cancel $::animateId
unset ::animateId
}
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
frame .fr
pack .fr -expand 1 -fill both
# Create Our OpenGL Window
togl .fr.toglwin -width $::winWidth -height $::winHeight \
-double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 3
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

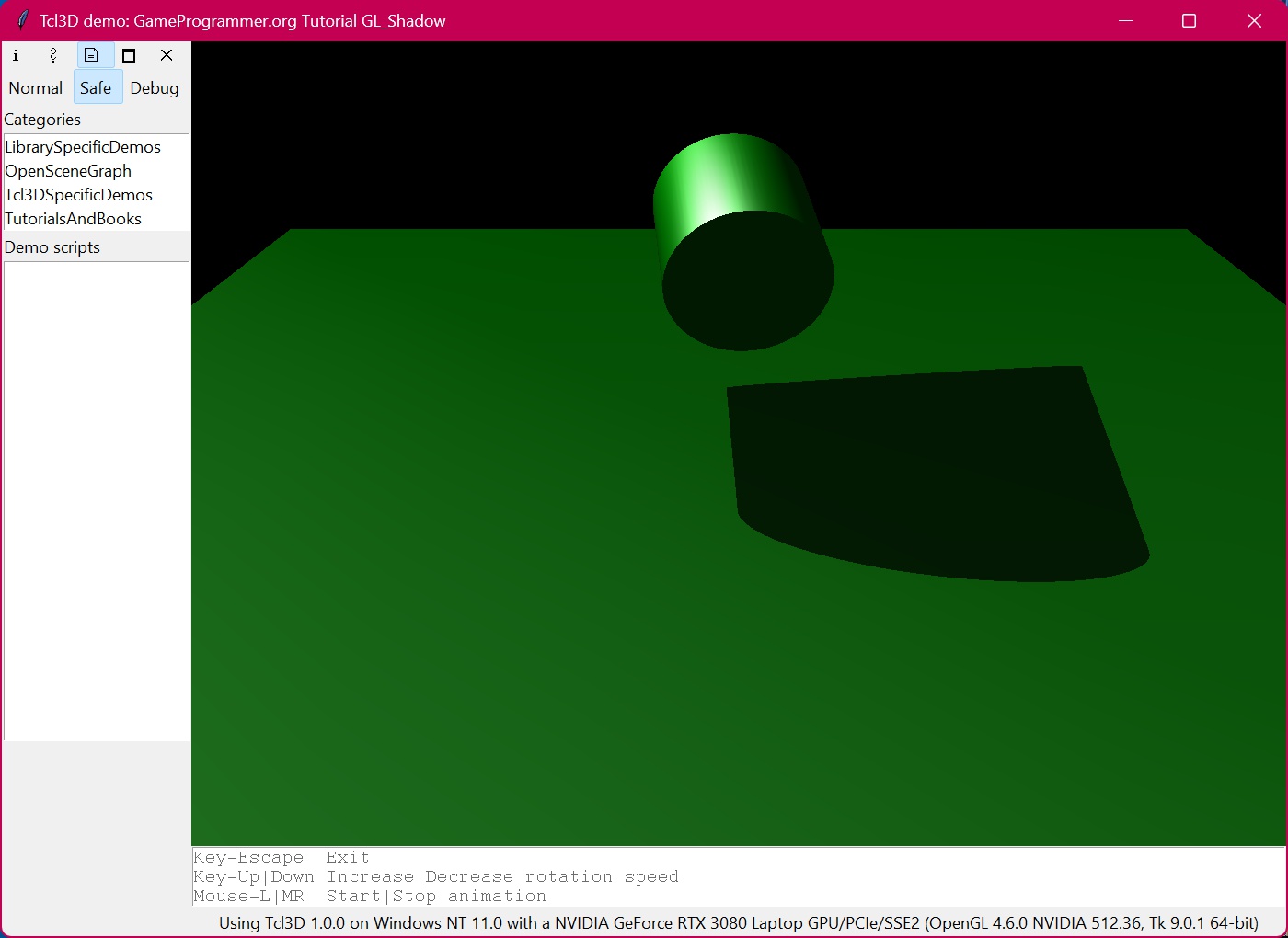

wm title . "Tcl3D demo: GameProgrammer.org Tutorial GL_Shadow"
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-Up> "SetRotSpeed 0.05"
bind . <Key-Down> "SetRotSpeed -0.05"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-Up|Down Increase|Decrease rotation speed"
.fr.usage insert end "Mouse-L|MR Start|Stop animation"
.fr.usage configure -state disabled
}
CreateWindow
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
