# texprox.tcl
#
# An example of the OpenGL red book modified to work with Tcl3D.
# The original C sources are Copyright (c) 1993-2003, Silicon Graphics, Inc.
# The Tcl3D sources are Copyright (c) 2005-2022, Paul Obermeier.
# See file LICENSE for complete license information.
#
# The brief program illustrates use of texture proxies.

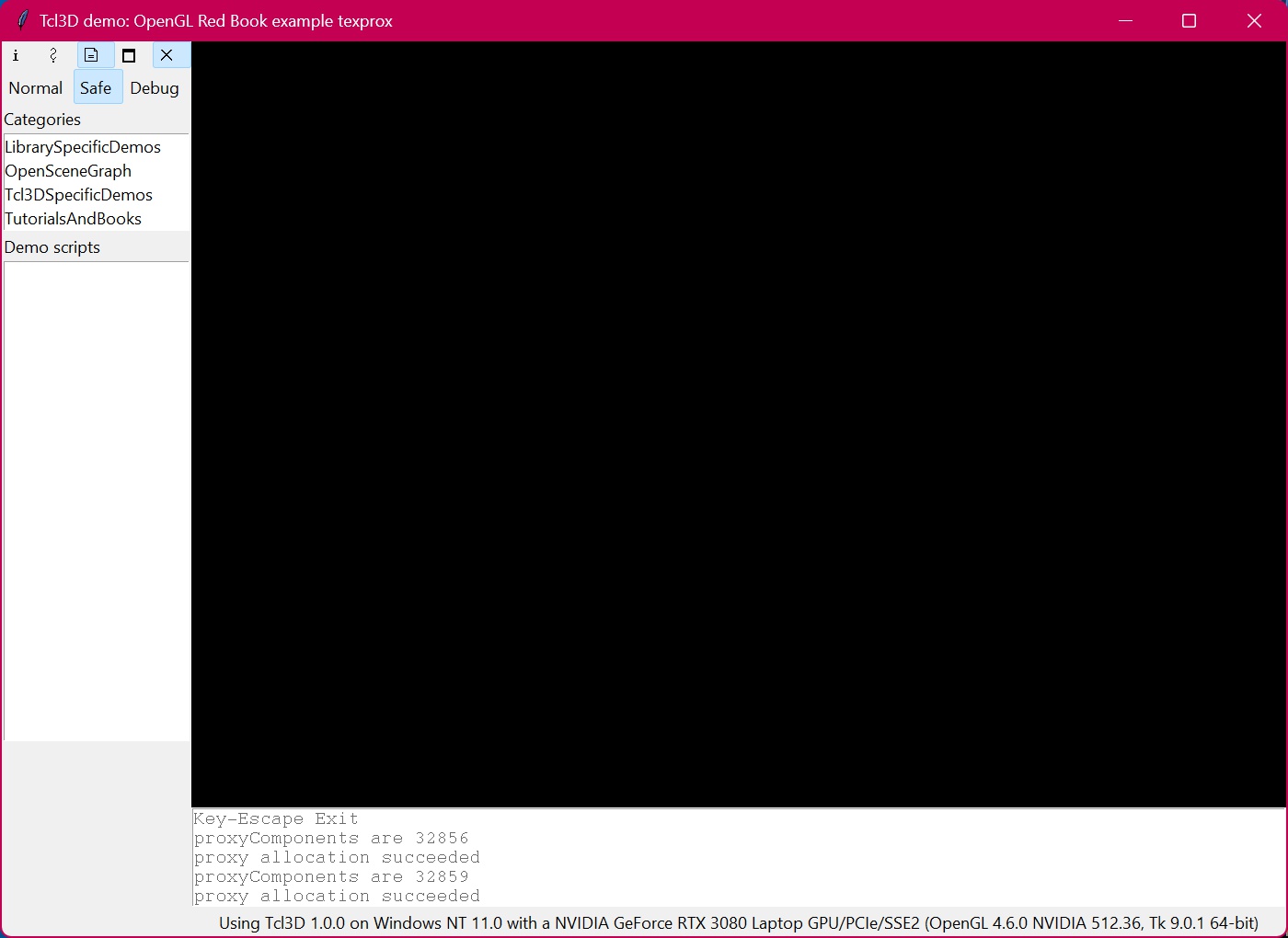

# This program only prints out some messages about whether
# certain size textures are supported and then exits.
package require tcl3d
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc CreateCallback { toglwin } {
glClearColor 0.0 0.0 0.0 0.0
}
proc init {} {
set proxyComponents [tcl3dVector GLint 1]
glTexImage2D GL_PROXY_TEXTURE_2D 0 $::GL_RGBA8 \
64 64 0 \
GL_RGBA GL_UNSIGNED_BYTE NULL
glGetTexLevelParameteriv GL_PROXY_TEXTURE_2D 0 \
GL_TEXTURE_COMPONENTS $proxyComponents
.fr.usage insert end "proxyComponents are [$proxyComponents get 0]"
if { [$proxyComponents get 0] == $::GL_RGBA8 } {
.fr.usage insert end "proxy allocation succeeded"
} else {
.fr.usage insert end "proxy allocation failed"
}
glTexImage2D GL_PROXY_TEXTURE_2D 0 $::GL_RGBA16 \
2048 2048 0 \
GL_RGBA GL_UNSIGNED_SHORT NULL
glGetTexLevelParameteriv GL_PROXY_TEXTURE_2D 0 \
GL_TEXTURE_COMPONENTS $proxyComponents
.fr.usage insert end "proxyComponents are [$proxyComponents get 0]"
if { [$proxyComponents get 0] == $::GL_RGBA16 } {
.fr.usage insert end "proxy allocation succeeded"
} else {
.fr.usage insert end "proxy allocation failed"
}
}
proc DisplayCallback { toglwin } {
glClear GL_COLOR_BUFFER_BIT
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glFlush
$toglwin swapbuffers
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
glMatrixMode GL_PROJECTION
glLoadIdentity
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width 400 -height 400 -double true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 5
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1
wm title . "Tcl3D demo: OpenGL Red Book example texprox"
bind . <Key-Escape> "exit"
.fr.usage insert end "Key-Escape Exit"
PrintInfo [tcl3dOglGetInfoString]
init
.fr.usage configure -state disabled
|
