# double.tcl
#
# An example of the OpenGL red book modified to work with Tcl3D.
# The original C sources are Copyright (c) 1993-2003, Silicon Graphics, Inc.
# The Tcl3D sources are Copyright (c) 2005-2022, Paul Obermeier.
# See file LICENSE for complete license information.
#

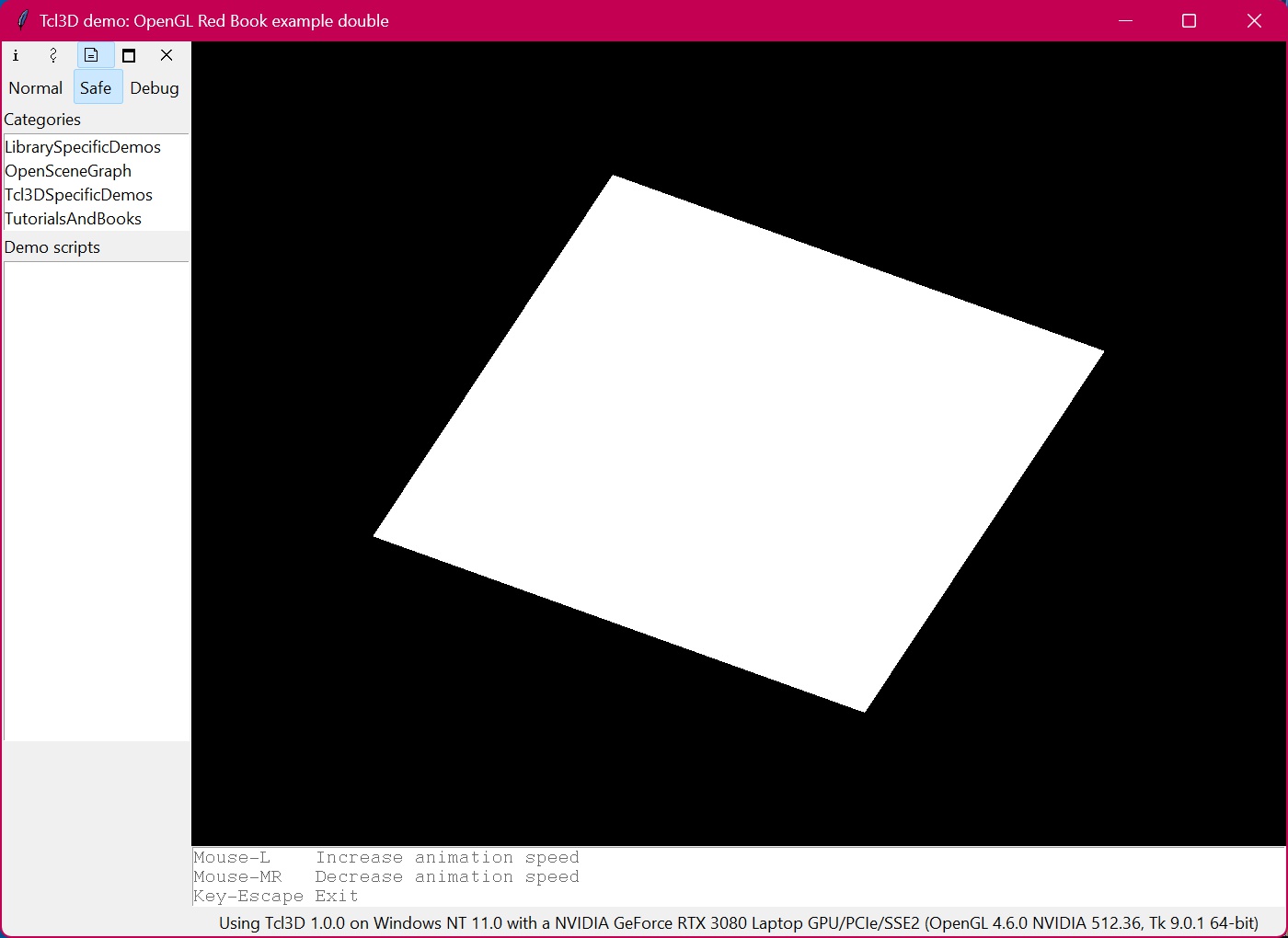

# This is a simple double buffered program.
# Pressing the left mouse button rotates the rectangle.
# Pressing the middle mouse button stops the rotation.
package require tcl3d
set spin 0.0
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
proc DisplayCallback { toglwin } {
glClear GL_COLOR_BUFFER_BIT
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glPushMatrix
glRotatef $::spin 0.0 0.0 1.0
glColor3f 1.0 1.0 1.0
glRectf -25.0 -25.0 25.0 25.0
glPopMatrix
glFlush
$toglwin swapbuffers
}
proc StartAnimation {} {
global spin
set spin [expr $spin + 2.0]
if { $spin > 360.0 } {
set spin [expr $spin - 360.0]
}
.fr.toglwin postredisplay
set ::spinId [tcl3dAfterIdle StartAnimation]
}
proc StopAnimation {} {
if { [info exists ::spinId] } {
after cancel $::spinId
}
}
proc CreateCallback { toglwin } {
glClearColor 0.0 0.0 0.0 0.0
glShadeModel GL_FLAT
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
glMatrixMode GL_PROJECTION
glLoadIdentity
glOrtho -50.0 50.0 -50.0 50.0 -1.0 1.0
glMatrixMode GL_MODELVIEW
glLoadIdentity
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width 500 -height 500 -double true \
-swapinterval 1 \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 3
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1
wm title . "Tcl3D demo: OpenGL Red Book example double"
bind . <Key-Escape> "exit"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Mouse-L Increase animation speed"
.fr.usage insert end "Mouse-MR Decrease animation speed"
.fr.usage insert end "Key-Escape Exit"
.fr.usage configure -state disabled
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
