# bezmesh.tcl
#
# An example of the OpenGL red book modified to work with Tcl3D.
# The original C sources are Copyright (c) 1993-2003, Silicon Graphics, Inc.
# The Tcl3D sources are Copyright (c) 2005-2022, Paul Obermeier.
# See file LICENSE for complete license information.
#

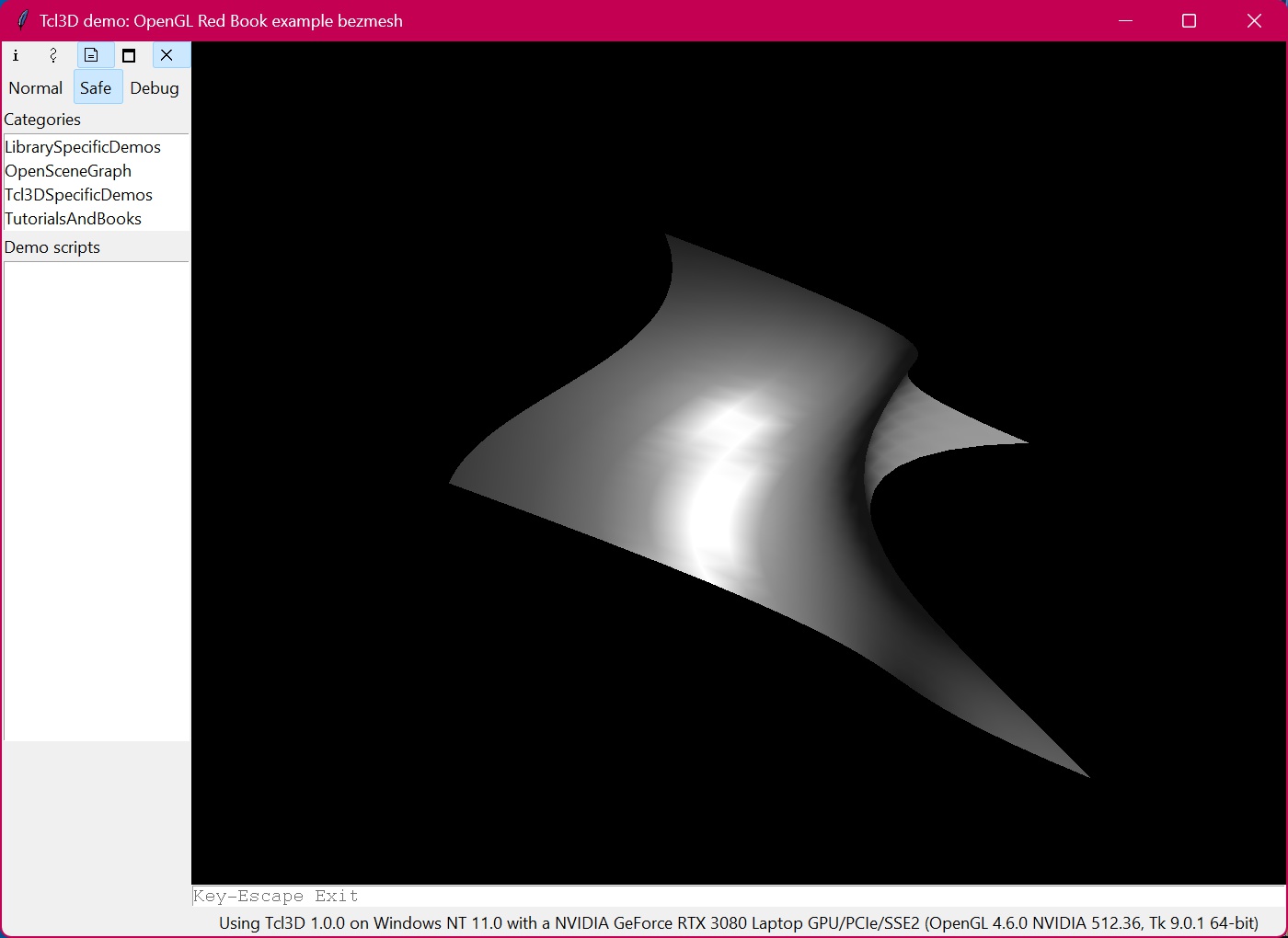

# This program renders a lighted, filled Bezier surface,
# using two-dimensional evaluators.
package require tcl3d
set ctrlpoints {
{ {-1.5 -1.5 4.0}
{-0.5 -1.5 2.0}
{0.5 -1.5 -1.0}
{1.5 -1.5 2.0}}
{ {-1.5 -0.5 1.0}
{-0.5 -0.5 3.0}
{0.5 -0.5 0.0}
{1.5 -0.5 -1.0}}
{ {-1.5 0.5 4.0}
{-0.5 0.5 0.0}
{0.5 0.5 3.0}
{1.5 0.5 4.0}}
{ {-1.5 1.5 -2.0}
{-0.5 1.5 -2.0}
{0.5 1.5 0.0}
{1.5 1.5 -1.0}}
}
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc initlights {} {
set ambient {0.2 0.2 0.2 1.0}
set position {0.0 0.0 2.0 1.0}
set mat_diffuse {0.6 0.6 0.6 1.0}
set mat_specular {1.0 1.0 1.0 1.0}
set mat_shininess {50.0}
glEnable GL_LIGHTING
glEnable GL_LIGHT0
glLightfv GL_LIGHT0 GL_AMBIENT $ambient
glLightfv GL_LIGHT0 GL_POSITION $position
glMaterialfv GL_FRONT GL_DIFFUSE $mat_diffuse
glMaterialfv GL_FRONT GL_SPECULAR $mat_specular
glMaterialfv GL_FRONT GL_SHININESS $mat_shininess
}
proc DisplayCallback { toglwin } {
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glPushMatrix
glRotatef 85.0 1.0 1.0 1.0
glEvalMesh2 GL_FILL 0 20 0 20
glPopMatrix
glFlush
$toglwin swapbuffers
}
proc CreateCallback { toglwin } {
glClearColor 0.0 0.0 0.0 0.0
glEnable GL_DEPTH_TEST
glMap2f GL_MAP2_VERTEX_3 0 1 3 4 \
0 1 12 4 [join [join $::ctrlpoints]]
glEnable GL_MAP2_VERTEX_3
glEnable GL_AUTO_NORMAL
glMapGrid2f 20 0.0 1.0 20 0.0 1.0
initlights
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
glMatrixMode GL_PROJECTION
glLoadIdentity
if { $w <= $h } {
glOrtho -4.0 4.0 \
[expr -4.0*double($h)/double($w)] \
[expr 4.0*double($h)/double($w)] \
-4.0 4.0
} else {
glOrtho [expr -4.0*double($w)/double($h)] \
[expr 4.0*double($w)/double($h)] \
-4.0 4.0 -4.0 4.0
}
glMatrixMode GL_MODELVIEW
glLoadIdentity
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width 500 -height 500 -double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 1
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1
wm title . "Tcl3D demo: OpenGL Red Book example bezmesh"
bind . <Key-Escape> "exit"
.fr.usage insert end "Key-Escape Exit"
.fr.usage configure -state disabled
PrintInfo [tcl3dOglGetInfoString]
|
