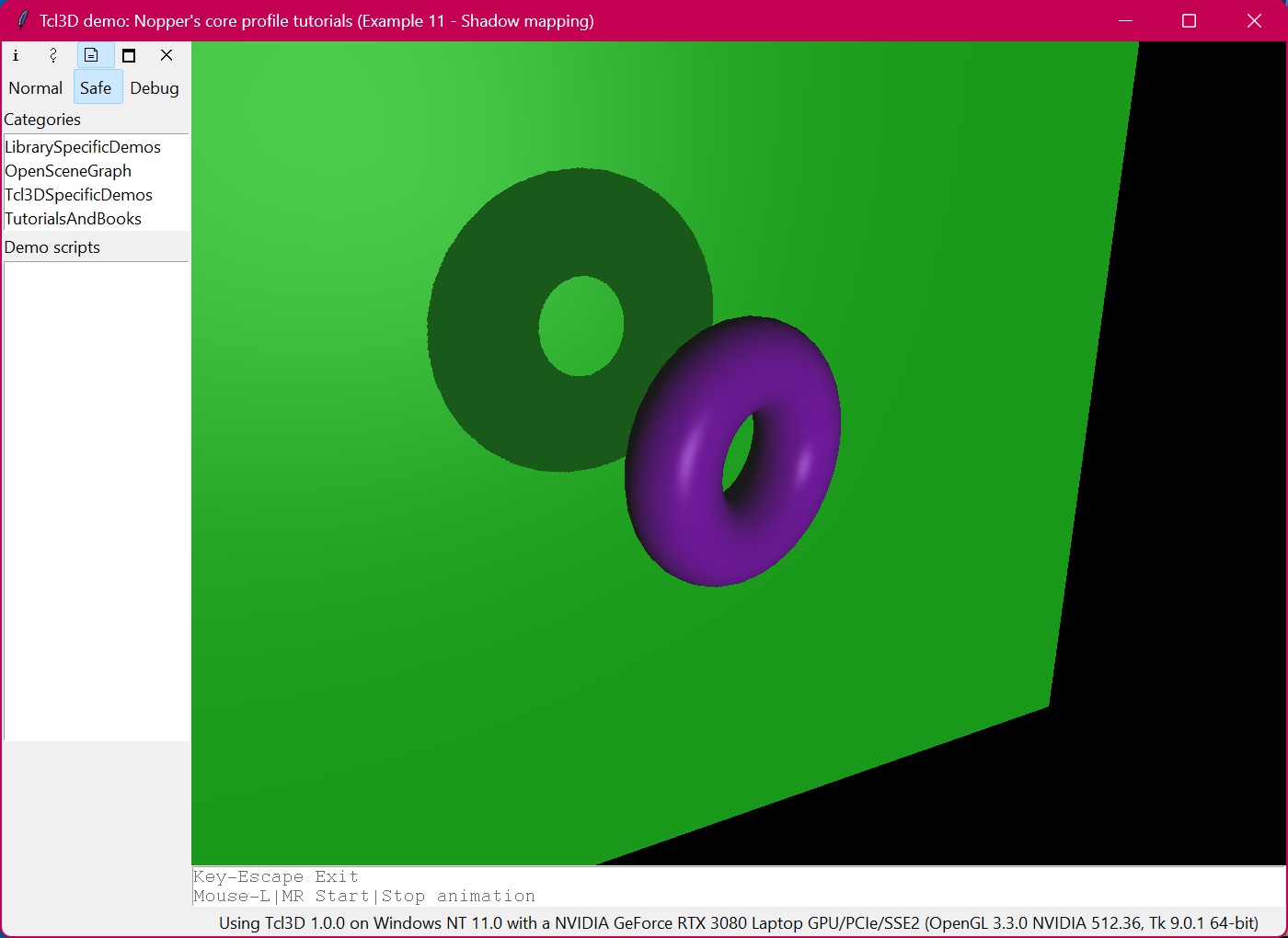

# OpenGL 3.3 with GLEW - Example 11
#
# @author Norbert Nopper norbert@nopper.tv
# @version 1.0
#
# Homepage: https://github.com/McNopper/OpenGL
#
# Copyright Norbert Nopper
#
# Modified for Tcl3D by Paul Obermeier 2011/02/03
# See www.tcl3d.org for the Tcl3D extension.
package require Tk
package require tcl3d
# Font to be used in the Tk listbox.
set g_Demo(listFont) {-family {Courier} -size 10}
# Obtain the name of this script file.
set g_Demo(scriptDir) [file dirname [info script]]
# Window size.
set g_Demo(winWidth) 640
set g_Demo(winHeight) 480
# Camera position.
set g_Demo(camera) [tcl3dVectorFromArgs GLfloat -5.0 5.0 10.0]
# Light.
set g_Demo(light) [tcl3dVectorFromArgs GLfloat 0.0 0.0 10.0]
# Shadow matrix.
set g_Demo(shadowMatrix) [tcl3dVector GLfloat 16]
# Projection matrix.
set g_Demo(projection) [tcl3dVector GLfloat 16]
# Move the cube along the minus z axis for making it visible. Also rotated.
set g_Demo(modelView) [tcl3dVector GLfloat 16]
# Move the cube along the minus z axis for making it visible. Also rotated.
set g_Demo(modelViewBackground) [tcl3dVector GLfloat 16]
# Move the cube along the minus z axis for making it visible. Also rotated.
set g_Demo(modelViewShadow) [tcl3dVector GLfloat 16]
# Move the cube along the minus z axis for making it visible. Also rotated.
set g_Demo(modelViewShadowBackground) [tcl3dVector GLfloat 16]
# The shadow texture size.
set g_Demo(shadowTextureSize) 1024
set g_Demo(angle) 0.0
# A stop watch to get current time.
set g_Demo(stopWatch) [tcl3dNewSwatch]
tcl3dStartSwatch $g_Demo(stopWatch)
set g_Demo(lastTime) [tcl3dLookupSwatch $g_Demo(stopWatch)]
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc Animate {} {
global g_Demo
.fr.toglwin postredisplay
set g_Demo(animateId) [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
global g_Demo
if { ! [info exists g_Demo(animateId)] } {
Animate
tcl3dStartSwatch $g_Demo(stopWatch)
}
}
proc StopAnimation {} {
global g_Demo
if { [info exists g_Demo(animateId)] } {
after cancel $g_Demo(animateId)
unset g_Demo(animateId)
tcl3dStopSwatch $g_Demo(stopWatch)
}
}
# Function for initialization.
proc Init {} {
global g_Demo
# Matrix for the model
set model [tcl3dVector GLfloat 16]
set lightCamera [tcl3dVector GLfloat 3]
set g_Demo(shadowTexture) [tcl3dVector GLuint 1]
glGenTextures 1 $g_Demo(shadowTexture)
glBindTexture GL_TEXTURE_2D [$g_Demo(shadowTexture) get 0]
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_NEAREST
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_NEAREST
glTexParameterf GL_TEXTURE_2D GL_TEXTURE_WRAP_S $::GL_CLAMP
glTexParameterf GL_TEXTURE_2D GL_TEXTURE_WRAP_T $::GL_CLAMP
glTexImage2D GL_TEXTURE_2D 0 $::GL_DEPTH_COMPONENT \
$g_Demo(shadowTextureSize) $g_Demo(shadowTextureSize) \
0 GL_DEPTH_COMPONENT GL_UNSIGNED_BYTE "NULL"
glBindTexture GL_TEXTURE_2D 0
set g_Demo(fbo) [tcl3dVector GLuint 1]
glGenFramebuffers 1 $g_Demo(fbo)
glBindFramebuffer GL_FRAMEBUFFER [$g_Demo(fbo) get 0]
glDrawBuffer GL_NONE
glReadBuffer GL_NONE
glFramebufferTexture2D GL_FRAMEBUFFER GL_DEPTH_ATTACHMENT GL_TEXTURE_2D \
[$g_Demo(shadowTexture) get 0] 0
if { [glCheckFramebufferStatus $::GL_FRAMEBUFFER] != $::GL_FRAMEBUFFER_COMPLETE } {
puts [format "GL_FRAMEBUFFER_COMPLETE error 0x%x" \
[glCheckFramebufferStatus GL_FRAMEBUFFER]]
}
glClearDepth 1.0
glEnable GL_DEPTH_TEST
glEnable GL_CULL_FACE
glBindFramebuffer GL_FRAMEBUFFER 0
# Load the source of the shadow vertex shader.
set vertexSource [tcl3dOglReadShaderFile [file join $g_Demo(scriptDir) "VertexShadow.vs"]]
# Load the source of the shadow fragment shader.
set fragmentSource [tcl3dOglReadShaderFile [file join $g_Demo(scriptDir) "FragmentShadow.fs"]]
set g_Demo(programShadow) [tcl3dOglBuildProgram $vertexSource "" "" "" $fragmentSource]
set programShadow [dict get $g_Demo(programShadow) program]
set g_Demo(projectionShadowLocation) [glGetUniformLocation $programShadow "projectionMatrix"]
set g_Demo(modelViewShadowLocation) [glGetUniformLocation $programShadow "modelViewMatrix"]
set g_Demo(vertexShadowLocation) [glGetAttribLocation $programShadow "vertex"]
# Load the source of the vertex shader.
set vertexSource [tcl3dOglReadShaderFile [file join $g_Demo(scriptDir) "Vertex.vs"]]
# Load the source of the fragment shader.
set fragmentSource [tcl3dOglReadShaderFile [file join $g_Demo(scriptDir) "Fragment.fs"]]
set g_Demo(program) [tcl3dOglBuildProgram $vertexSource "" "" "" $fragmentSource]
set program [dict get $g_Demo(program) program]
set g_Demo(projectionLocation) [glGetUniformLocation $program "projectionMatrix"]
set g_Demo(modelViewLocation) [glGetUniformLocation $program "modelViewMatrix"]
set g_Demo(shadowMatrixLocation) [glGetUniformLocation $program "shadowMatrix"]
set g_Demo(shadowTextureLocation) [glGetUniformLocation $program "shadowTexture"]
set g_Demo(colorLocation) [glGetUniformLocation $program "shapeColor"]
set g_Demo(lightLocation) [glGetUniformLocation $program "lightDirection"]
set g_Demo(vertexLocation) [glGetAttribLocation $program "vertex"]
set g_Demo(normalLocation) [glGetAttribLocation $program "normal"]
glUseProgram $program
tcl3dLookAt [$g_Demo(camera) get 0] [$g_Demo(camera) get 1] [$g_Demo(camera) get 2] \
0.0 0.0 0.0 0.0 1.0 0.0 $model
tcl3dMatfTransformVector $g_Demo(light) $model $lightCamera
glUniform3f $g_Demo(lightLocation) [$lightCamera get 0] [$lightCamera get 1] [$lightCamera get 2]
glUniform1i $g_Demo(shadowTextureLocation) 0
# Torus
set g_Demo(vao) [tcl3dVector GLuint 1]
glGenVertexArrays 1 $g_Demo(vao)
glBindVertexArray [$g_Demo(vao) get 0]
set torus [glusCreateTorus 0.5 1.0 32 32]
set g_Demo(numberIndices) [dict get $torus numIndices]
set g_Demo(vertices) [tcl3dVector GLuint 1]
glGenBuffers 1 $g_Demo(vertices)
glBindBuffer GL_ARRAY_BUFFER [$g_Demo(vertices) get 0]
set vertexVec [dict get $torus vertexVec]
glBufferData GL_ARRAY_BUFFER \
[expr [dict get $torus numVertices]*4*[$vertexVec elemsize]] \
$vertexVec GL_STATIC_DRAW
set g_Demo(normals) [tcl3dVector GLuint 1]
glGenBuffers 1 $g_Demo(normals)
glBindBuffer GL_ARRAY_BUFFER [$g_Demo(normals) get 0]
set normalVec [dict get $torus normalVec]
glBufferData GL_ARRAY_BUFFER \
[expr [dict get $torus numVertices]*3*[$vertexVec elemsize]] \
$normalVec GL_STATIC_DRAW
set g_Demo(indices) [tcl3dVector GLuint 1]
glGenBuffers 1 $g_Demo(indices)
glBindBuffer GL_ELEMENT_ARRAY_BUFFER [$g_Demo(indices) get 0]
set indexVec [dict get $torus indexVec]
glBufferData GL_ELEMENT_ARRAY_BUFFER \
[expr [dict get $torus numIndices]*[$indexVec elemsize]] \
$indexVec GL_STATIC_DRAW
glusDestroyShape $torus
glUseProgram $program
tcl3dMatfIdentity $model
tcl3dLookAt [$g_Demo(camera) get 0] [$g_Demo(camera) get 1] [$g_Demo(camera) get 2] \
0.0 0.0 0.0 0.0 1.0 0.0 $g_Demo(modelView)
tcl3dMatfMult $g_Demo(modelView) $model $g_Demo(modelView)
glBindBuffer GL_ARRAY_BUFFER [$g_Demo(vertices) get 0]
glVertexAttribPointer $g_Demo(vertexLocation) 4 GL_FLOAT GL_FALSE 0 "NULL"
glEnableVertexAttribArray $g_Demo(vertexLocation)
glBindBuffer GL_ARRAY_BUFFER [$g_Demo(normals) get 0]
glVertexAttribPointer $g_Demo(normalLocation) 3 GL_FLOAT GL_FALSE 0 "NULL"
glEnableVertexAttribArray $g_Demo(normalLocation)
glBindTexture GL_TEXTURE_2D [$g_Demo(shadowTexture) get 0]
set g_Demo(vaoShadow) [tcl3dVector GLuint 1]
glGenVertexArrays 1 $g_Demo(vaoShadow)
glBindVertexArray [$g_Demo(vaoShadow) get 0]
glUseProgram $programShadow
glBindBuffer GL_ARRAY_BUFFER [$g_Demo(vertices) get 0]
glVertexAttribPointer $g_Demo(vertexShadowLocation) 4 GL_FLOAT GL_FALSE 0 "NULL"
glEnableVertexAttribArray $g_Demo(vertexShadowLocation)
glBindBuffer GL_ELEMENT_ARRAY_BUFFER [$g_Demo(indices) get 0]
# Background plane
set g_Demo(vaoBackground) [tcl3dVector GLuint 1]
glGenVertexArrays 1 $g_Demo(vaoBackground)
glBindVertexArray [$g_Demo(vaoBackground) get 0]
set background [glusCreatePlane 10.0 10.0]
set g_Demo(numberIndicesBackground) [dict get $background numIndices]
set g_Demo(verticesBackground) [tcl3dVector GLuint 1]
glGenBuffers 1 $g_Demo(verticesBackground)
glBindBuffer GL_ARRAY_BUFFER [$g_Demo(verticesBackground) get 0]
set vertexVec [dict get $background vertexVec]
glBufferData GL_ARRAY_BUFFER \
[expr [dict get $background numVertices]*4*[$vertexVec elemsize]] \
$vertexVec GL_STATIC_DRAW
set g_Demo(normalsBackground) [tcl3dVector GLuint 1]
glGenBuffers 1 $g_Demo(normalsBackground)
glBindBuffer GL_ARRAY_BUFFER [$g_Demo(normalsBackground) get 0]
set normalVec [dict get $background normalVec]
glBufferData GL_ARRAY_BUFFER \
[expr [dict get $background numVertices]*3*[$vertexVec elemsize]] \
$normalVec GL_STATIC_DRAW
set g_Demo(indicesBackground) [tcl3dVector GLuint 1]
glGenBuffers 1 $g_Demo(indicesBackground)
glBindBuffer GL_ELEMENT_ARRAY_BUFFER [$g_Demo(indicesBackground) get 0]
set indexVec [dict get $background indexVec]
glBufferData GL_ELEMENT_ARRAY_BUFFER \
[expr [dict get $background numIndices]*[$indexVec elemsize]] \
$indexVec GL_STATIC_DRAW
glusDestroyShape $background
glUseProgram $program
tcl3dMatfIdentity $model
tcl3dLookAt [$g_Demo(camera) get 0] [$g_Demo(camera) get 1] [$g_Demo(camera) get 2] \
0.0 0.0 0.0 0.0 1.0 0.0 $g_Demo(modelViewBackground)
tcl3dMatfMult $g_Demo(modelViewBackground) $model $g_Demo(modelViewBackground)
glBindBuffer GL_ARRAY_BUFFER [$g_Demo(verticesBackground) get 0]
glVertexAttribPointer $g_Demo(vertexLocation) 4 GL_FLOAT GL_FALSE 0 "NULL"
glEnableVertexAttribArray $g_Demo(vertexLocation)
glBindBuffer GL_ARRAY_BUFFER [$g_Demo(normalsBackground) get 0]
glVertexAttribPointer $g_Demo(normalLocation) 3 GL_FLOAT GL_FALSE 0 "NULL"
glEnableVertexAttribArray $g_Demo(normalLocation)
glBindTexture GL_TEXTURE_2D [$g_Demo(shadowTexture) get 0]
set g_Demo(vaoShadowBackground) [tcl3dVector GLuint 1]
glGenVertexArrays 1 $g_Demo(vaoShadowBackground)
glBindVertexArray [$g_Demo(vaoShadowBackground) get 0]
glUseProgram $program
glBindBuffer GL_ARRAY_BUFFER [$g_Demo(verticesBackground) get 0]
glVertexAttribPointer $g_Demo(vertexShadowLocation) 4 GL_FLOAT GL_FALSE 0 "NULL"
glEnableVertexAttribArray $g_Demo(vertexShadowLocation)
glBindBuffer GL_ELEMENT_ARRAY_BUFFER [$g_Demo(indicesBackground) get 0]
$model delete
$lightCamera delete
}
proc CreateCallback { toglwin } {
glClearColor 0.0 0.0 0.0 0.0
glClearDepth 1.0
glEnable GL_DEPTH_TEST
glEnable GL_CULL_FACE
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
global g_Demo
set w [$toglwin width]
set h [$toglwin height]
set g_Demo(winWidth) $w
set g_Demo(winHeight) $h
if { ! $g_Demo(haveNeededVersion) } {
return
}
set bias [tcl3dVectorFromArgs GLfloat \
0.5 0.0 0.0 0.0 \
0.0 0.5 0.0 0.0 \
0.0 0.0 0.5 0.0 \
0.5 0.5 0.5 1.0 \
]
set model [tcl3dVector GLfloat 16]
set modelViewInverse [tcl3dVector GLfloat 16]
glUseProgram [dict get $g_Demo(programShadow) program]
tcl3dPerspective 40.0 1.0 1.0 100.0 $g_Demo(projection)
set projectionAsList [tcl3dVectorToList $g_Demo(projection) 16]
glUniformMatrix4fv $g_Demo(projectionShadowLocation) 1 GL_FALSE $projectionAsList
tcl3dLookAt [$g_Demo(light) get 0] [$g_Demo(light) get 1] [$g_Demo(light) get 2] \
0.0 0.0 0.0 0.0 1.0 0.0 $g_Demo(modelViewShadow)
tcl3dMatfIdentity $g_Demo(shadowMatrix)
tcl3dMatfMult $g_Demo(shadowMatrix) $bias $g_Demo(shadowMatrix)
tcl3dMatfMult $g_Demo(shadowMatrix) $g_Demo(projection) $g_Demo(shadowMatrix)
tcl3dMatfMult $g_Demo(shadowMatrix) $g_Demo(modelViewShadow) $g_Demo(shadowMatrix)
tcl3dMatfIdentity $model
tcl3dLookAt [$g_Demo(camera) get 0] [$g_Demo(camera) get 1] [$g_Demo(camera) get 2] \
0.0 0.0 0.0 0.0 1.0 0.0 $model
tcl3dMatfInvert $model $modelViewInverse
tcl3dMatfMult $g_Demo(shadowMatrix) $modelViewInverse $g_Demo(shadowMatrix)
glUseProgram [dict get $g_Demo(program) program]
tcl3dPerspective 40.0 [expr double($w)/double($h)] 1.0 100.0 $g_Demo(projection)
set projectionAsList [tcl3dVectorToList $g_Demo(projection) 16]
glUniformMatrix4fv $g_Demo(projectionLocation) 1 GL_FALSE $projectionAsList
$model delete
$modelViewInverse delete
$bias delete
}
proc DisplayCallback { toglwin } {
global g_Demo
if { ! $g_Demo(haveNeededVersion) } {
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
$toglwin swapbuffer
return
}
set model [tcl3dVector GLfloat 16]
glBindFramebuffer GL_FRAMEBUFFER [$g_Demo(fbo) get 0]
glColorMask GL_FALSE GL_FALSE GL_FALSE GL_FALSE
glViewport 0 0 $g_Demo(shadowTextureSize) $g_Demo(shadowTextureSize)
tcl3dMatfIdentity $model
tcl3dMatfRotateY $g_Demo(angle) $model
tcl3dLookAt [$g_Demo(light) get 0] [$g_Demo(light) get 1] [$g_Demo(light) get 2] \
0.0 0.0 0.0 0.0 1.0 0.0 $g_Demo(modelViewShadow)
tcl3dMatfMult $g_Demo(modelViewShadow) $model $g_Demo(modelViewShadow)
tcl3dMatfIdentity $model
tcl3dMatfTranslate 0.0 0.0 -5.0 $model
tcl3dLookAt [$g_Demo(light) get 0] [$g_Demo(light) get 1] [$g_Demo(light) get 2] \
0.0 0.0 0.0 0.0 1.0 0.0 $g_Demo(modelViewShadowBackground)
tcl3dMatfMult $g_Demo(modelViewShadowBackground) $model $g_Demo(modelViewShadowBackground)
glClear GL_DEPTH_BUFFER_BIT
glUseProgram [dict get $g_Demo(programShadow) program]
glBindVertexArray [$g_Demo(vaoShadowBackground) get 0]
set modelViewShadowBackgroundAsList [tcl3dVectorToList $g_Demo(modelViewShadowBackground) 16]
glUniformMatrix4fv $g_Demo(modelViewShadowLocation) 1 GL_FALSE $modelViewShadowBackgroundAsList
glDrawElements GL_TRIANGLES $g_Demo(numberIndicesBackground) GL_UNSIGNED_INT "NULL"
glBindVertexArray [$g_Demo(vaoShadow) get 0]
set modelViewShadowAsList [tcl3dVectorToList $g_Demo(modelViewShadow) 16]
glUniformMatrix4fv $g_Demo(modelViewShadowLocation) 1 GL_FALSE $modelViewShadowAsList
glDrawElements GL_TRIANGLES $g_Demo(numberIndices) GL_UNSIGNED_INT "NULL"
glBindFramebuffer GL_FRAMEBUFFER 0
glColorMask GL_TRUE GL_TRUE GL_TRUE GL_TRUE
glViewport 0 0 $g_Demo(winWidth) $g_Demo(winHeight)
tcl3dMatfIdentity $model
tcl3dMatfRotateY $g_Demo(angle) $model
tcl3dLookAt [$g_Demo(camera) get 0] [$g_Demo(camera) get 1] [$g_Demo(camera) get 2] \
0.0 0.0 0.0 0.0 1.0 0.0 $g_Demo(modelView)
tcl3dMatfMult $g_Demo(modelView) $model $g_Demo(modelView)
tcl3dMatfIdentity $model
tcl3dMatfTranslate 0.0 0.0 -5.0 $model
tcl3dLookAt [$g_Demo(camera) get 0] [$g_Demo(camera) get 1] [$g_Demo(camera) get 2] \
0.0 0.0 0.0 0.0 1.0 0.0 $g_Demo(modelViewBackground)
tcl3dMatfMult $g_Demo(modelViewBackground) $model $g_Demo(modelViewBackground)
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
glUseProgram [dict get $g_Demo(program) program]
glBindVertexArray [$g_Demo(vaoBackground) get 0]
set shadowMatrixAsList [tcl3dVectorToList $g_Demo(shadowMatrix) 16]
glUniformMatrix4fv $g_Demo(shadowMatrixLocation) 1 GL_FALSE $shadowMatrixAsList
set modelViewBackgroundAsList [tcl3dVectorToList $g_Demo(modelViewBackground) 16]
glUniformMatrix4fv $g_Demo(modelViewLocation) 1 GL_FALSE $modelViewBackgroundAsList
glUniform4f $g_Demo(colorLocation) 0.0 0.5 0.0 1.0
glDrawElements GL_TRIANGLES $g_Demo(numberIndicesBackground) GL_UNSIGNED_INT "NULL"
glBindVertexArray [$g_Demo(vao) get 0]
glUniformMatrix4fv $g_Demo(shadowMatrixLocation) 1 GL_FALSE $shadowMatrixAsList
set modelViewAsList [tcl3dVectorToList $g_Demo(modelView) 16]
glUniformMatrix4fv $g_Demo(modelViewLocation) 1 GL_FALSE $modelViewAsList
glUniform4f $g_Demo(colorLocation) 0.33 0.0 0.5 1.0
glDrawElements GL_TRIANGLES $g_Demo(numberIndices) GL_UNSIGNED_INT "NULL"
set curTime [tcl3dLookupSwatch $g_Demo(stopWatch)]
set elapsedTime [expr $curTime - $g_Demo(lastTime)]
set g_Demo(lastTime) $curTime
set g_Demo(angle) [expr $g_Demo(angle) + 20.0 * $elapsedTime]
$model delete
$toglwin swapbuffer
}
proc Cleanup {} {
global g_Demo
if { [info exists g_Demo(vertices)] } {
glDeleteBuffers 1 [$g_Demo(vertices) get 0]
$g_Demo(vertices) delete
}
if { [info exists g_Demo(normals)] } {
glDeleteBuffers 1 [$g_Demo(normals) get 0]
$g_Demo(normals) delete
}
if { [info exists g_Demo(indices)] } {
glDeleteBuffers 1 [$g_Demo(indices) get 0]
$g_Demo(indices) delete
}
if { [info exists g_Demo(vao)] } {
glDeleteVertexArrays 1 [$g_Demo(vao) get 0]
$g_Demo(vao) delete
}
if { [info exists g_Demo(vaoShadow)] } {
glDeleteVertexArrays 1 [$g_Demo(vaoShadow) get 0]
$g_Demo(vaoShadow) delete
}
if { [info exists g_Demo(verticesBackground)] } {
glDeleteBuffers 1 [$g_Demo(verticesBackground) get 0]
$g_Demo(verticesBackground) delete
}
if { [info exists g_Demo(normalsBackground)] } {
glDeleteBuffers 1 [$g_Demo(normalsBackground) get 0]
$g_Demo(normalsBackground) delete
}
if { [info exists g_Demo(indicesBackground)] } {
glDeleteBuffers 1 [$g_Demo(indicesBackground) get 0]
$g_Demo(indicesBackground) delete
}
if { [info exists g_Demo(vaoBackground)] } {
glDeleteVertexArrays 1 [$g_Demo(vaoBackground) get 0]
$g_Demo(vaoBackground) delete
}
if { [info exists g_Demo(vaoShadowBackground)] } {
glDeleteVertexArrays 1 [$g_Demo(vaoShadowBackground) get 0]
$g_Demo(vaoShadowBackground) delete
}
if { [info exists g_Demo(fbo)] } {
glDeleteFramebuffers 1 [$g_Demo(fbo) get 0]
$g_Demo(fbo) delete
}
if { [info exists g_Demo(shadowTexture)] } {
glDeleteRenderbuffers 1 [$g_Demo(shadowTexture) get 0]
$g_Demo(shadowTexture) delete
}
if { [info exists g_Demo(program)] } {
tcl3dOglDestroyProgram $g_Demo(program)
}
if { [info exists g_Demo(programShadow)] } {
tcl3dOglDestroyProgram $g_Demo(programShadow)
}
tcl3dDeleteSwatch $g_Demo(stopWatch)
# Unset all global variables.
# Needed when running the demo in the Tcl3D presentation framework.
foreach var [info globals g_*] {
uplevel #0 unset $var
}
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
global g_Demo
frame .fr
pack .fr -expand 1 -fill both
# Create a Togl window with an OpenGL core profile using version 3.3.
# Reshape and Display callbacks are configured later after knowing if
# the needed OpenGL profile version is available.
togl .fr.toglwin -width $g_Demo(winWidth) -height $g_Demo(winHeight) \
-double true -depth true -alpha true \
-createcommand CreateCallback \
-coreprofile true -major 3 -minor 3
set g_Demo(haveNeededVersion) true
set numRows 2
set haveGL3 [tcl3dOglHaveVersion 3]
if { ! $haveGL3 } {
set msgStr [format \
"Demo needs core profile 3.3. Only have GL version %s" \
[tcl3dOglGetVersion]]
set g_Demo(haveNeededVersion) false
incr numRows
} else {
set profile [tcl3dOglGetProfile .fr.toglwin]
if { [dict get $profile "coreprofile"] != true } {
set msgStr [format \
"Demo needs core profile 3.3. Only have compatibility profile %d.%d" \
[dict get $profile "major"] \
[dict get $profile "minor"]]
incr numRows
}
}
if { $g_Demo(haveNeededVersion) } {
# If OpenGL 3.3 or higher is available, initialize the buffers.
Init
}
# Now attach the Reshape and Display callbacks to the Togl window.
.fr.toglwin configure \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $g_Demo(listFont) -height $numRows
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1
wm title . "Tcl3D demo: Nopper's core profile tutorials (Example 11 - Shadow mapping)"
# Watch for Esc key and Quit messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Mouse-L|MR Start|Stop animation"
if { [info exists msgStr] } {
.fr.usage insert end $msgStr
.fr.usage itemconfigure end -background red
} else {
.fr.usage configure -state disabled
}
}
CreateWindow
ReshapeCallback .fr.toglwin
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
