# Lesson46.tcl
#
# NeHe & MainRoach's FSAA Tutorial
#
# This Code Was Created By Jeff Molofee 2001
# and Colt McAnlis ( MainRoach ).
# If You've Found This Code Useful, Please Let Me Know.
# Visit My Site At nehe.gamedev.net
#
# Modified for Tcl3D by Paul Obermeier 2006/08/13
# See www.tcl3d.org for the Tcl3D extension.
#
# This demo uses the multisampling options built into tcl3dTogl starting
# from version 0.3.2.
# Another way to set the number of samples is via the driver specific GUI under
# Windows, or by setting the environment variable __GL_FSAA_MODE under Linux.
package require tcl3d
# Font to be used in the Tk listbox.
set gDemo(listFont) {-family {Courier} -size 10}
# Display mode.
set gDemo(fullScreen) false
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
set gDemo(doMulti) 1
set gDemo(angle) 0.0
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetFullScreenMode { win } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win $sw $sh
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+0" $sw $sh]
wm geometry $win $fmtStr
wm overrideredirect $win 1
focus -force $win
}
proc SetWindowMode { win w h } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win 10 10
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+25" $w $h]
wm geometry $win $fmtStr
wm overrideredirect $win 0
focus -force $win
}
# Toggle between windowing and fullscreen mode.
proc ToggleWindowMode {} {
if { $::gDemo(fullScreen) } {
SetFullScreenMode .
set ::gDemo(fullScreen) false
} else {
SetWindowMode . $::gDemo(winWidth) $::gDemo(winHeight)
set ::gDemo(fullScreen) true
}
}
# Print information about the multisampling state into last row of usage list.
proc PrintFSAAInfo {} {
if { ! [winfo exists .fr.usage] } {
return
}
.fr.usage configure -state normal
.fr.usage delete end
if { $::gDemo(doMulti) } {
set sbufs [tcl3dOglGetIntegerState GL_SAMPLE_BUFFERS]
set samples [tcl3dOglGetIntegerState GL_SAMPLES]
if { $sbufs > 0 } {
.fr.usage insert end "Multisampling: ON (Number of samples: $samples)"
} else {
.fr.usage insert end "Multisampling: ON (No sample buffer available)"
}
} else {
.fr.usage insert end "Multisampling: OFF"
}
.fr.usage configure -state disabled
}
proc ToggleMultisampling { toglwin } {
set ::gDemo(doMulti) [expr ! $::gDemo(doMulti)]
PrintFSAAInfo
$toglwin postredisplay
}
# Resize And Initialize The GL Window
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h ; # Reset The Current Viewport
glMatrixMode GL_PROJECTION ; # Select The Projection Matrix
glLoadIdentity ; # Reset The Projection Matrix
# Calculate The Aspect Ratio Of The Window
gluPerspective 50.0 [expr double($w)/double($h)] 5 2000
glMatrixMode GL_MODELVIEW ; # Select The Modelview Matrix
glLoadIdentity ; # Reset The Modelview Matrix
set ::gDemo(winWidth) $w
set ::gDemo(winHeight) $h
}
# All Setup For OpenGL Goes Here
proc CreateCallback { toglwin } {
global gDemo
set gDemo(angle) 0.0
glShadeModel GL_SMOOTH ; # Enable Smooth Shading
glClearColor 0.0 0.0 0.0 0.5 ; # Black Background
glEnable GL_DEPTH_TEST ; # Enables Depth Testing
}
proc Animate {} {
.fr.toglwin postredisplay
set ::animateId [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
if { [info commands .fr.toglwin] eq "" } {
return
}
if { ! [info exists ::animateId] } {
Animate
}
}
proc StopAnimation {} {
if { [info exists ::animateId] } {
after cancel $::animateId
unset ::animateId
}
}
# Here's Where We Do All The Drawing
proc DisplayCallback { toglwin } {
global gDemo
if { $gDemo(doMulti) } {
glEnable GL_MULTISAMPLE_ARB ; # Enable Our Multisampling
}
# Clear Screen And Depth Buffer
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glLoadIdentity ; # Reset The Current Modelview Matrix
for { set i -10 } { $i < 10 } { incr i } {
for { set j -10 } { $j < 10 } { incr j } {
glPushMatrix
glTranslatef [expr {$i*2.0}] [expr {$j*2.0}] -5.0
glRotatef $gDemo(angle) 0.0 0.0 1.0
glBegin GL_QUADS
glColor3f 1.0 0.0 0.0 ; glVertex3f $i $j 0.0
glColor3f 0.0 1.0 0.0 ; glVertex3f [expr {$i + 2.0}] $j 0.0
glColor3f 0.0 0.0 1.0 ; glVertex3f [expr {$i + 2.0}] [expr {$j + 2.0}] 0.0
glColor3f 1.0 1.0 1.0 ; glVertex3f $i [expr {$j + 2.0}] 0.0
glEnd
glPopMatrix
}
}
if { [info exists ::animateId] } {
set gDemo(angle) [expr {$gDemo(angle) + 0.1}]
}
glFlush
$toglwin swapbuffers
if { $gDemo(doMulti) } {
glDisable GL_MULTISAMPLE_ARB
}
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
frame .fr
pack .fr -expand 1 -fill both
# Create a Togl window using multisample buffers.
# Reshape and Display callbacks are configured later after knowing if
# the needed multisample buffers are available.
set retVal [catch { togl .fr.toglwin \
-width $::gDemo(winWidth) -height $::gDemo(winHeight) \
-multisamplebuffers 1 -multisamplesamples 2 \
-swapinterval 1 \
-double true -depth true \
-createcommand CreateCallback } errMsg]
if { $retVal != 0 } {
tk_messageBox -icon error -type ok -title "Missing Togl feature" \
-message "Demo needs multisample buffers: $errMsg"
proc ::Cleanup {} {}
exit 1
return
}
.fr.toglwin configure \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::gDemo(listFont) -height 5
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

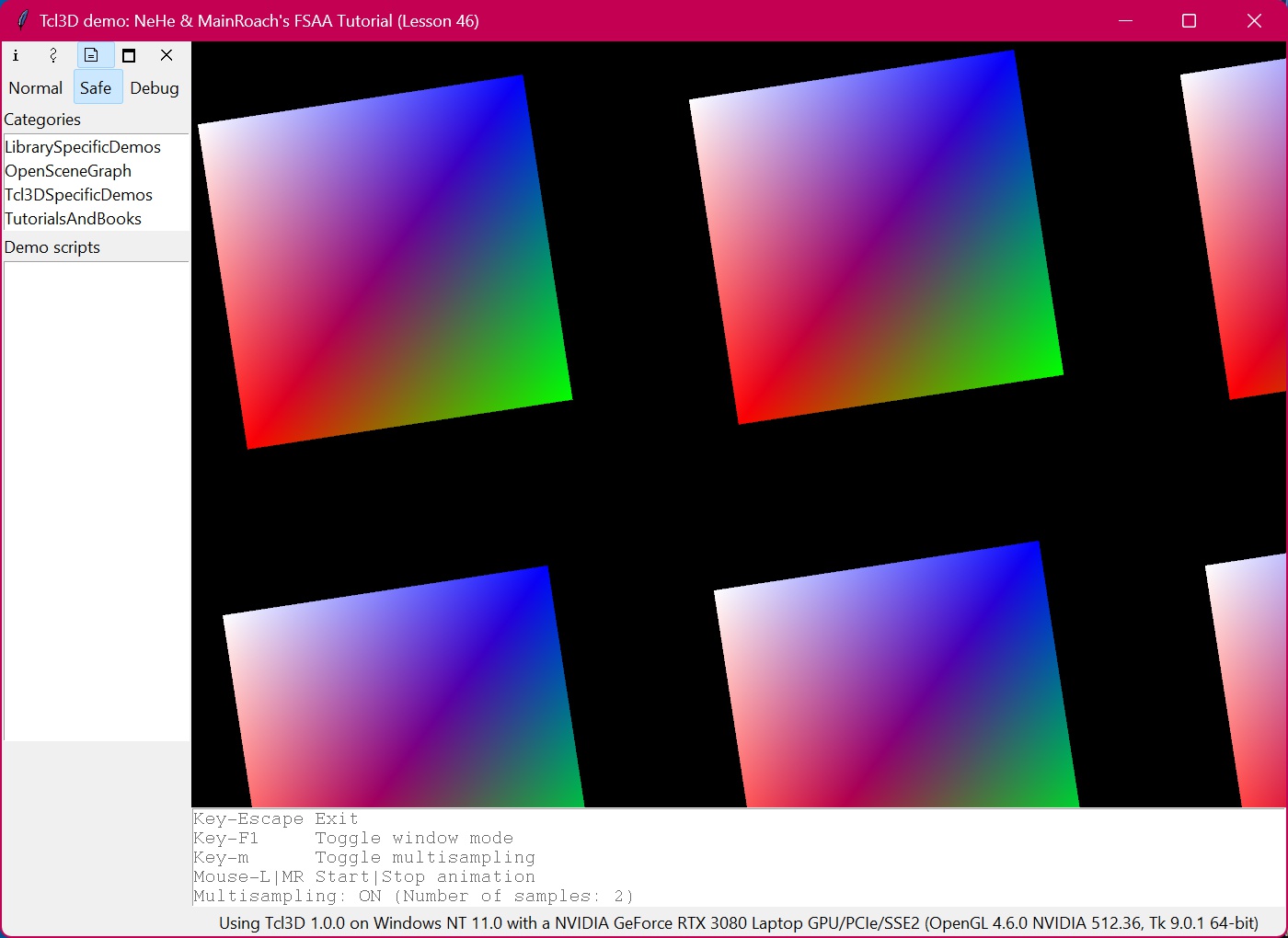

wm title . "Tcl3D demo: NeHe & MainRoach's FSAA Tutorial (Lesson 46)"
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-F1> "ToggleWindowMode"
bind . <Key-m> "ToggleMultisampling .fr.toglwin"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-F1 Toggle window mode"
.fr.usage insert end "Key-m Toggle multisampling"
.fr.usage insert end "Mouse-L|MR Start|Stop animation"
.fr.usage insert end " "
.fr.usage configure -state disabled
}
CreateWindow
PrintFSAAInfo
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
