# Lesson41.tcl
#
# NeHe's Volumetric Fog Tutorial
#
# This Code Was Created By Jeff Molofee 2003
# If You've Found This Code Useful, Please Let Me Know.
# Visit My Site At nehe.gamedev.net
#
# Modified for Tcl3D by Paul Obermeier 2006/08/27
# See www.tcl3d.org for the Tcl3D extension.
package require Img
package require tcl3d
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Determine the directory of this script.
set gDemo(scriptDir) [file dirname [info script]]
# Display mode.
set fullScreen false
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
set camz 0.0 ; # Camera Z Depth
set fogColor { 0.6 0.3 0.0 1.0 } ; # Fog Colour Light
set texture [tcl3dVector GLuint 1] ; # One Texture (For The Walls)
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetFullScreenMode { win } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win $sw $sh
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+0" $sw $sh]
wm geometry $win $fmtStr
wm overrideredirect $win 1
focus -force $win
}
proc SetWindowMode { win w h } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win 10 10
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+25" $w $h]
wm geometry $win $fmtStr
wm overrideredirect $win 0
focus -force $win
}
# Toggle between windowing and fullscreen mode.
proc ToggleWindowMode {} {
if { $::fullScreen } {
SetFullScreenMode .
set ::fullScreen false
} else {
SetWindowMode . $::gDemo(winWidth) $::gDemo(winHeight)
set ::fullScreen true
}
}
proc SetDepth { val } {
set ::camz [expr $::camz + $val]
if { $::camz > 14.0 } {
set ::camz 14.0
} elseif { $::camz < -19.0 } {
set ::camz -19.0
}
.fr.toglwin postredisplay
}
proc LoadImage { imgName numChans } {
if { $numChans != 3 && $numChans != 4 } {
error "Error: Only 3 or 4 channels allowed ($numChans supplied)"
}
set texName [file join $::gDemo(scriptDir) "Data" $imgName]
set retVal [catch {set phImg [image create photo -file $texName]} err1]
if { $retVal != 0 } {
error "Error reading image $texName ($err1)"
} else {
set w [image width $phImg]
set h [image height $phImg]
set texImg [tcl3dVectorFromPhoto $phImg $numChans]
image delete $phImg
}
return [list $texImg $w $h]
}
# Load Bitmaps And Convert To Textures
proc LoadGLTextures {} {
# Load The Wall Texture
set imgInfo [LoadImage "Wall.bmp" 4]
set imgData [lindex $imgInfo 0]
set imgWidth [lindex $imgInfo 1]
set imgHeight [lindex $imgInfo 2]
# Create The Texture
glGenTextures 1 $::texture
glBindTexture GL_TEXTURE_2D [$::texture get 0]
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_LINEAR
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_LINEAR
glTexImage2D GL_TEXTURE_2D 0 3 $imgWidth $imgHeight \
0 GL_RGBA GL_UNSIGNED_BYTE $imgData
# Delete the image data vector.
$imgData delete
}
proc ExtensionInit { toglwin } {
if { ![tcl3dOglHaveExtension $toglwin "GL_EXT_fog_coord"] } {
error "GL_EXT_fog_coord missing"
}
}
# Resize And Initialize The GL Window
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h ; # Reset The Current Viewport
glMatrixMode GL_PROJECTION ; # Select The Projection Matrix
glLoadIdentity ; # Reset The Projection Matrix
# Calculate The Aspect Ratio Of The Window
gluPerspective 45.0 [expr double($w)/double($h)] 0.1 100.0
glMatrixMode GL_MODELVIEW ; # Select The Modelview Matrix
glLoadIdentity ; # Reset The Modelview Matrix
set ::gDemo(winWidth) $w
set ::gDemo(winHeight) $h
}
# All Setup For OpenGL Goes Here
proc CreateCallback { toglwin } {
ExtensionInit $toglwin ; # Check If Fog Extension Is Available
LoadGLTextures ; # Load The Wall Texture
glEnable GL_TEXTURE_2D ; # Enable 2D Texture Mapping
glClearColor 0.0 0.0 0.0 0.5 ; # Black Background
glClearDepth 1.0 ; # Depth Buffer Setup
glDepthFunc GL_LEQUAL ; # The Type Of Depth Testing To Do
glEnable GL_DEPTH_TEST ; # Enables Depth Testing
glShadeModel GL_SMOOTH ; # Enable Smooth Shading
glHint GL_PERSPECTIVE_CORRECTION_HINT \
GL_NICEST ; # Really Nice Perspective Calculations
# Set Up Fog
glEnable GL_FOG ; # Enable Fog
glFogi GL_FOG_MODE $::GL_LINEAR ; # Fog Fade Is Linear
glFogfv GL_FOG_COLOR $::fogColor ; # Set The Fog Color
glFogf GL_FOG_START 0.0 ; # Set The Fog Start
glFogf GL_FOG_END 1.0 ; # Set The Fog End
glHint GL_FOG_HINT GL_NICEST ; # Per-Pixel Fog Calculation
glFogi GL_FOG_COORDINATE_SOURCE_EXT \
$::GL_FOG_COORDINATE_EXT ; # Set Fog Based On Vertice Coordinates
set ::camz -19.0 ; # Set Camera Z Position To -19.0
}
# Here's Where We Do All The Drawing
proc DisplayCallback { toglwin } {
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glLoadIdentity ; # Reset The Modelview Matrix
glTranslatef 0.0 0.0 $::camz
glBegin GL_QUADS ; # Back Wall
glFogCoordfEXT 1.0 ; glTexCoord2f 0.0 0.0 ; glVertex3f -2.5 -2.5 -15.0
glFogCoordfEXT 1.0 ; glTexCoord2f 1.0 0.0 ; glVertex3f 2.5 -2.5 -15.0
glFogCoordfEXT 1.0 ; glTexCoord2f 1.0 1.0 ; glVertex3f 2.5 2.5 -15.0
glFogCoordfEXT 1.0 ; glTexCoord2f 0.0 1.0 ; glVertex3f -2.5 2.5 -15.0
glEnd
glBegin GL_QUADS ; # Floor
glFogCoordfEXT 1.0 ; glTexCoord2f 0.0 0.0 ; glVertex3f -2.5 -2.5 -15.0
glFogCoordfEXT 1.0 ; glTexCoord2f 1.0 0.0 ; glVertex3f 2.5 -2.5 -15.0
glFogCoordfEXT 0.0 ; glTexCoord2f 1.0 1.0 ; glVertex3f 2.5 -2.5 15.0
glFogCoordfEXT 0.0 ; glTexCoord2f 0.0 1.0 ; glVertex3f -2.5 -2.5 15.0
glEnd
glBegin GL_QUADS ; # Roof
glFogCoordfEXT 1.0 ; glTexCoord2f 0.0 0.0 ; glVertex3f -2.5 2.5 -15.0
glFogCoordfEXT 1.0 ; glTexCoord2f 1.0 0.0 ; glVertex3f 2.5 2.5 -15.0
glFogCoordfEXT 0.0 ; glTexCoord2f 1.0 1.0 ; glVertex3f 2.5 2.5 15.0
glFogCoordfEXT 0.0 ; glTexCoord2f 0.0 1.0 ; glVertex3f -2.5 2.5 15.0
glEnd
glBegin GL_QUADS ; # Right Wall
glFogCoordfEXT 0.0 ; glTexCoord2f 0.0 0.0 ; glVertex3f 2.5 -2.5 15.0
glFogCoordfEXT 0.0 ; glTexCoord2f 0.0 1.0 ; glVertex3f 2.5 2.5 15.0
glFogCoordfEXT 1.0 ; glTexCoord2f 1.0 1.0 ; glVertex3f 2.5 2.5 -15.0
glFogCoordfEXT 1.0 ; glTexCoord2f 1.0 0.0 ; glVertex3f 2.5 -2.5 -15.0
glEnd
glBegin GL_QUADS ; # Left Wall
glFogCoordfEXT 0.0 ; glTexCoord2f 0.0 0.0 ; glVertex3f -2.5 -2.5 15.0
glFogCoordfEXT 0.0 ; glTexCoord2f 0.0 1.0 ; glVertex3f -2.5 2.5 15.0
glFogCoordfEXT 1.0 ; glTexCoord2f 1.0 1.0 ; glVertex3f -2.5 2.5 -15.0
glFogCoordfEXT 1.0 ; glTexCoord2f 1.0 0.0 ; glVertex3f -2.5 -2.5 -15.0
glEnd
glFlush ; # Flush The GL Rendering Pipeline
$toglwin swapbuffers
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
frame .fr
pack .fr -expand 1 -fill both
# Create Our OpenGL Window
togl .fr.toglwin -width $::gDemo(winWidth) -height $::gDemo(winHeight) \
-double true -depth true -alpha true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 3
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

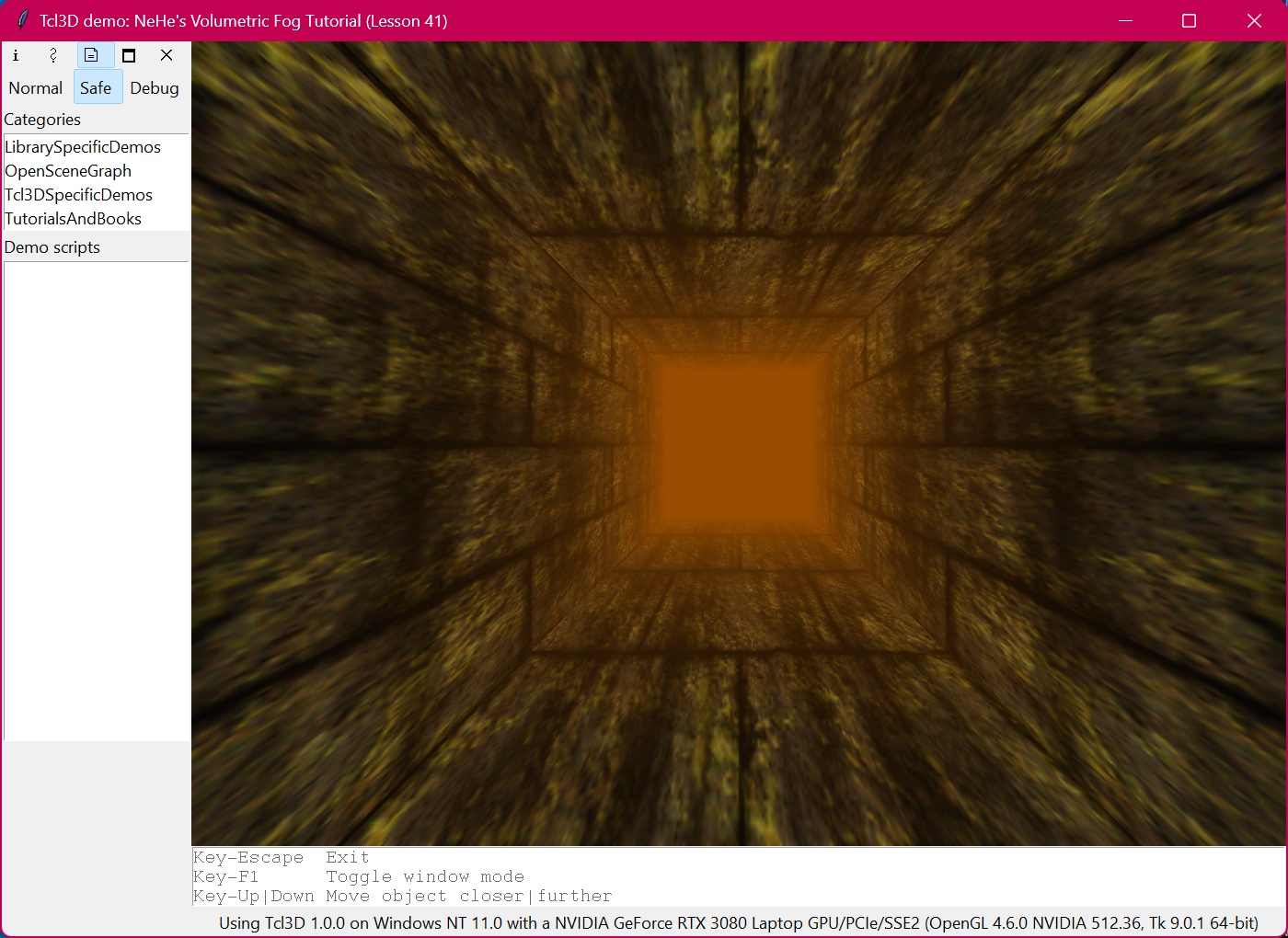

wm title . "Tcl3D demo: NeHe's Volumetric Fog Tutorial (Lesson 41)"
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-F1> "ToggleWindowMode"
bind . <Key-Up> "SetDepth 0.25"
bind . <Key-Down> "SetDepth -0.25"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-F1 Toggle window mode"
.fr.usage insert end "Key-Up|Down Move object closer|further"
.fr.usage configure -state disabled
}
CreateWindow
PrintInfo [tcl3dOglGetInfoString]
|
