# Lesson36.tcl
#
# Dario Corno's Radial Blur & Rendering To A Texture Tutorial
#
# If You've Found This Code Useful, Please Let Me Know.
# Visit My Site At nehe.gamedev.net
#
# Modified for Tcl3D by Paul Obermeier 2006/08/23
# See www.tcl3d.org for the Tcl3D extension.
package require Img
package require tcl3d
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Display mode.
set fullScreen false
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
set stopwatch [tcl3dNewSwatch]
set angle 0.0 ; # Used To Rotate The Helix
set BlurTexture [tcl3dVector GLuint 1] ; # Storage For One Texture
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetFullScreenMode { win } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win $sw $sh
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+0" $sw $sh]
wm geometry $win $fmtStr
wm overrideredirect $win 1
focus -force $win
}
proc SetWindowMode { win w h } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win 10 10
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+25" $w $h]
wm geometry $win $fmtStr
wm overrideredirect $win 0
focus -force $win
}
# Toggle between windowing and fullscreen mode.
proc ToggleWindowMode {} {
if { $::fullScreen } {
SetFullScreenMode .
set ::fullScreen false
} else {
SetWindowMode . $::gDemo(winWidth) $::gDemo(winHeight)
set ::fullScreen true
}
}
proc GetElapsedSeconds {} {
set currentTime [tcl3dLookupSwatch $::stopwatch]
set sec [expr $currentTime - $::elapsedLastTime]
set ::elapsedLastTime $currentTime
return $sec
}
# Create An Empty Texture
proc EmptyTexture {} {
# Create Storage Space For Texture Data (128x128x4)
set data [tcl3dVector GLubyte [expr 128 * 128 * 4]]
# ZeroMemory(data,((128 * 128)* 4 * sizeof(unsigned int))); // Clear Storage Memory
glGenTextures 1 $::BlurTexture ; # Create 1 Texture
glBindTexture GL_TEXTURE_2D [$::BlurTexture get 0] ; # Bind The Texture
glTexImage2D GL_TEXTURE_2D 0 4 128 128 0 GL_RGBA GL_UNSIGNED_BYTE $data
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_LINEAR
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_LINEAR
$data delete ; # Release data
}
# Draws A Helix
proc ProcessHelix {} {
set r 1.5 ; # Radius Of Twist
set twists 5 ; # 5 Twists
set glfMaterialColor {0.4 0.2 0.8 1.0} ; # Set The Material Color
set specular {1.0 1.0 1.0 1.0} ; # Sets Up Specular Lighting
glLoadIdentity ; # Reset The Modelview Matrix
gluLookAt 0 5 50 0 0 0 0 1 0 ; # Eye Position (0,5,50) Center Of Scene (0,0,0), Up On Y Axis
glPushMatrix ; # Push The Modelview Matrix
glTranslatef 0 0 -50 ; # Translate 50 Units Into The Screen
glRotatef [expr {$::angle/2.0}] 1 0 0 ; # Rotate By angle/2 On The X-Axis
glRotatef [expr {$::angle/3.0}] 0 1 0 ; # Rotate By angle/3 On The Y-Axis
glMaterialfv GL_FRONT_AND_BACK GL_AMBIENT_AND_DIFFUSE $glfMaterialColor
glMaterialfv GL_FRONT_AND_BACK GL_SPECULAR $specular
tcl3dHelix 0.0 0.0 0.0 $r $twists
glPopMatrix ; # Pop The Matrix
}
# Set Up An Ortho View
proc ViewOrtho {} {
glMatrixMode GL_PROJECTION ; # Select Projection
glPushMatrix ; # Push The Matrix
glLoadIdentity ; # Reset The Matrix
glOrtho 0 $::gDemo(winWidth) $::gDemo(winHeight) 0 -1 1 ; # Select Ortho Mode
glMatrixMode GL_MODELVIEW ; # Select Modelview Matrix
glPushMatrix ; # Push The Matrix
glLoadIdentity ; # Reset The Matrix
}
# Set Up A Perspective View
proc ViewPerspective {} {
glMatrixMode GL_PROJECTION ; # Select Projection
glPopMatrix ; # Pop The Matrix
glMatrixMode GL_MODELVIEW ; # Select Modelview
glPopMatrix ; # Pop The Matrix
}
# Renders To A Texture
proc RenderToTexture {} {
glViewport 0 0 128 128 ; # Set Our Viewport (Match Texture Size)
ProcessHelix ; # Render The Helix
glBindTexture GL_TEXTURE_2D [$::BlurTexture get 0] ; # Bind To The Blur Texture
# Copy Our ViewPort To The Blur Texture (From 0,0 To 128,128... No Border)
glCopyTexImage2D GL_TEXTURE_2D 0 GL_LUMINANCE 0 0 128 128 0
glClearColor 0.0 0.0 0.5 0.5 ; # Set The Clear Color To Medium Blue
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
glViewport 0 0 $::gDemo(winWidth) $::gDemo(winHeight) ; # Set Viewport
}
# Draw The Blurred Image
proc DrawBlur { times inc } {
set spost 0.0 ; # Starting Texture Coordinate Offset
set alphainc [expr {0.9 / $times}] ; # Fade Speed For Alpha Blending
set alpha 0.2 ; # Starting Alpha Value
# Disable AutoTexture Coordinates
glDisable GL_TEXTURE_GEN_S
glDisable GL_TEXTURE_GEN_T
glEnable GL_TEXTURE_2D ; # Enable 2D Texture Mapping
glDisable GL_DEPTH_TEST ; # Disable Depth Testing
glBlendFunc GL_SRC_ALPHA GL_ONE ; # Set Blending Mode
glEnable GL_BLEND ; # Enable Blending
glBindTexture GL_TEXTURE_2D [$::BlurTexture get 0]
ViewOrtho ; # Switch To An Ortho View
set alphainc [expr {$alpha / $times}] ; # alphainc=0.2f / Times To Render Blur
glBegin GL_QUADS ; # Begin Drawing Quads
# Number Of Times To Render Blur
for { set num 0 } { $num < $times } {incr num } {
glColor4f 1.0 1.0 1.0 $alpha ; # Set The Alpha Value (Starts At 0.2)
glTexCoord2f [expr {0+$spost}] [expr {1-$spost}] ; # Texture Coordinate ( 0, 1 )
glVertex2f 0 0 ; # First Vertex
glTexCoord2f [expr {0+$spost}] [expr {0+$spost}] ; # Texture Coordinate ( 0, 0 )
glVertex2f 0 $::gDemo(winHeight) ; # Second Vertex
glTexCoord2f [expr {1-$spost}] [expr {0+$spost}] ; # Texture Coordinate ( 1, 0 )
glVertex2f $::gDemo(winWidth) $::gDemo(winHeight) ; # Third Vertex
glTexCoord2f [expr {1-$spost}] [expr {1-$spost}] ; # Texture Coordinate ( 1, 1 )
glVertex2f $::gDemo(winWidth) 0 ; # Fourth Vertex
set spost [expr {$spost + $inc}] ; # Gradually Increase spost (Zooming Closer To Texture Center)
set alpha [expr {$alpha - $alphainc}] ; # Gradually Decrease alpha (Gradually Fading Image Out)
}
glEnd ; # Done Drawing Quads
ViewPerspective ; # Switch To A Perspective View
glEnable GL_DEPTH_TEST ; # Enable Depth Testing
glDisable GL_TEXTURE_2D ; # Disable 2D Texture Mapping
glDisable GL_BLEND ; # Disable Blending
glBindTexture GL_TEXTURE_2D 0 ; # Unbind The Blur Texture
}
# Resize And Initialize The GL Window
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h ; # Reset The Current Viewport
glMatrixMode GL_PROJECTION ; # Select The Projection Matrix
glLoadIdentity ; # Reset The Projection Matrix
# Calculate The Aspect Ratio Of The Window
gluPerspective 50 [expr double($w)/double($h)] 5 2000 ; # Set Our Perspective
glMatrixMode GL_MODELVIEW ; # Select The Modelview Matrix
glLoadIdentity ; # Reset The Modelview Matrix
set ::gDemo(winWidth) $w
set ::gDemo(winHeight) $h
}
# All Setup For OpenGL Goes Here
proc CreateCallback { toglwin } {
global gDemo
EmptyTexture ; # Create Our Empty Texture
glViewport 0 0 $gDemo(winWidth) $gDemo(winHeight) ; # Set Up A Viewport
glMatrixMode GL_PROJECTION ; # Select The Projection Matrix
glLoadIdentity ; # Reset The Projection Matrix
# Set Our Perspective
gluPerspective 50 [expr double($gDemo(winWidth))/double($gDemo(winHeight))] 5 2000
glMatrixMode GL_MODELVIEW ; # Select The Modelview Matrix
glLoadIdentity ; # Reset The Modelview Matrix
glEnable GL_DEPTH_TEST ; # Enable Depth Testing
set global_ambient {0.2 0.2 0.2 1.0} ; # Set Ambient Lighting To Fairly Dark Light (No Color)
set light0pos {0.0 5.0 10.0 1.0} ; # Set The Light Position
set light0ambient {0.2 0.2 0.2 1.0} ; # More Ambient Light
set light0diffuse {0.3 0.3 0.3 1.0} ; # Set The Diffuse Light A Bit Brighter
set light0specular {0.8 0.8 0.8 1.0} ; # Fairly Bright Specular Lighting
set lmodel_ambient {0.2 0.2 0.2 1.0} ; # And More Ambient Light
glLightModelfv GL_LIGHT_MODEL_AMBIENT $lmodel_ambient ; # Set The Ambient Light Model
glLightModelfv GL_LIGHT_MODEL_AMBIENT $global_ambient ; # Set The Global Ambient Light Model
glLightfv GL_LIGHT0 GL_POSITION $light0pos ; # Set The Lights Position
glLightfv GL_LIGHT0 GL_AMBIENT $light0ambient ; # Set The Ambient Light
glLightfv GL_LIGHT0 GL_DIFFUSE $light0diffuse ; # Set The Diffuse Light
glLightfv GL_LIGHT0 GL_SPECULAR $light0specular ; # Set Up Specular Lighting
glEnable GL_LIGHTING ; # Enable Lighting
glEnable GL_LIGHT0 ; # Enable Light0
glShadeModel GL_SMOOTH ; # Select Smooth Shading
glMateriali GL_FRONT GL_SHININESS 128
glClearColor 0.0 0.0 0.0 0.5 ; # Set The Clear Color To Black
tcl3dResetSwatch $::stopwatch
set ::elapsedLastTime [tcl3dLookupSwatch $::stopwatch]
}
# Here's Where We Do All The Drawing
proc DisplayCallback { toglwin } {
# Update Angle Based On The Clock
set ::angle [expr $::angle + [GetElapsedSeconds] * 200.0]
glClearColor 0.0 0.0 0.0 0.5 ; # Set The Clear Color To Black
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT] ; # Clear Screen And Depth Buffer
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glLoadIdentity ; # Reset The View
RenderToTexture ; # Render To A Texture
ProcessHelix ; # Draw Our Helix
DrawBlur 25 0.02 ; # Draw The Blur Effect
glFlush ; # Flush The GL Rendering Pipeline
$toglwin swapbuffers
}
proc Animate {} {
.fr.toglwin postredisplay
set ::animateId [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
tcl3dStartSwatch $::stopwatch
if { ! [info exists ::animateId] } {
Animate
}
}
proc StopAnimation {} {
tcl3dStopSwatch $::stopwatch
if { [info exists ::animateId] } {
after cancel $::animateId
unset ::animateId
}
}
proc Cleanup {} {
if { [info exists ::BlurTexture] } {
glDeleteTextures 1 [$::BlurTexture get 0] ; # Delete The Shader Texture
$::BlurTexture delete
}
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
frame .fr
pack .fr -expand 1 -fill both
# Create Our OpenGL Window
togl .fr.toglwin -width $::gDemo(winWidth) -height $::gDemo(winHeight) \
-double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 3
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

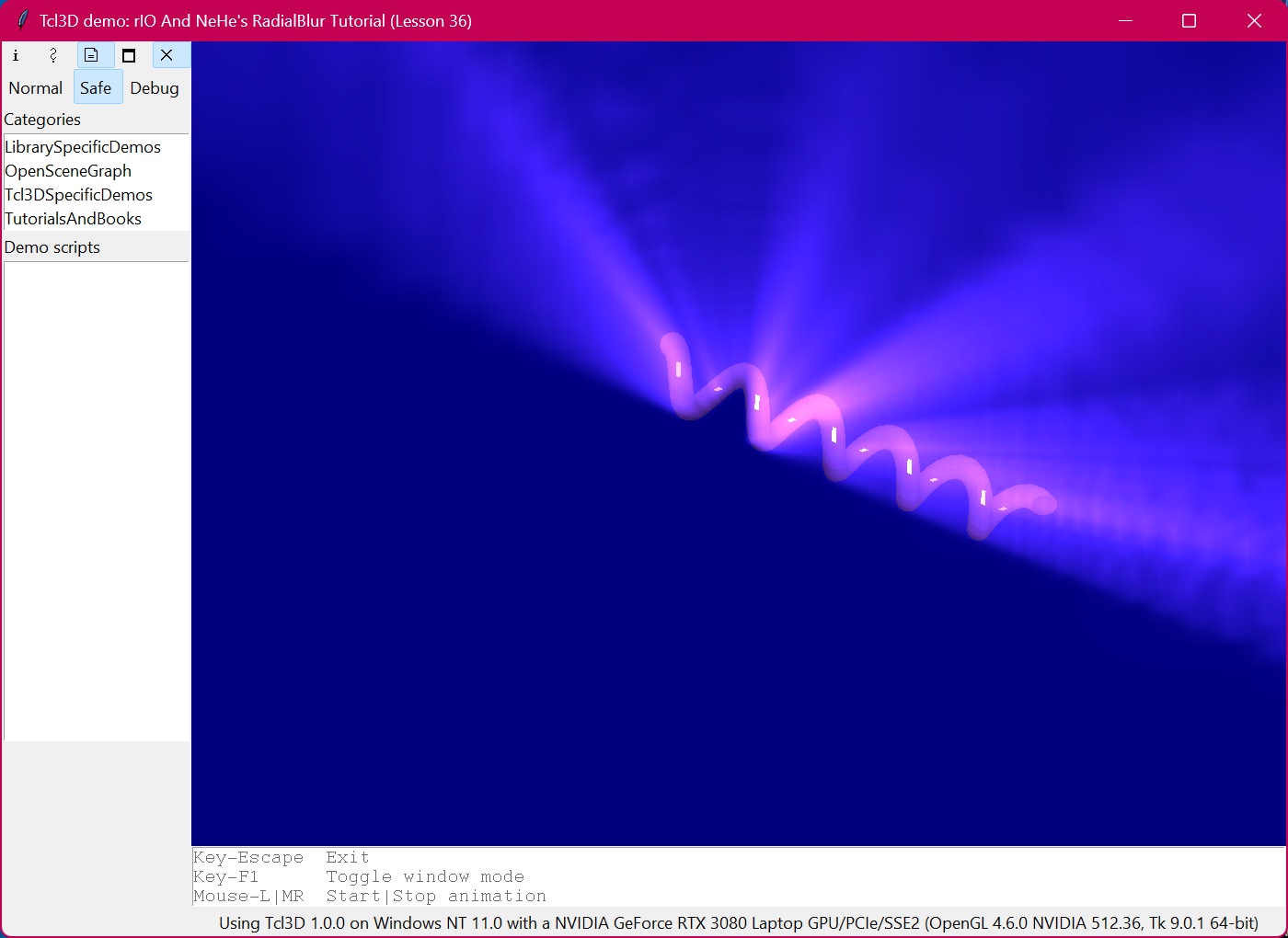

wm title . "Tcl3D demo: rIO And NeHe's RadialBlur Tutorial (Lesson 36)"
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-F1> "ToggleWindowMode"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-F1 Toggle window mode"
.fr.usage insert end "Mouse-L|MR Start|Stop animation"
.fr.usage configure -state disabled
}
CreateWindow
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
