Demo 28 of 35 in category NeHe
 |
# Lesson33.tcl
#
# NeHe & Evan 'terminate' Pipho's TGA Loading Tutorial
#
# Loading Uncompressed and Compressed .TGA Files with the Img extension.
#
# This Code Was Created By Evan Pipho
# If You've Found This Code Useful, Please Let Me Know.
# Visit My Site At nehe.gamedev.net
#
# Modified for Tcl3D by Paul Obermeier 2006/08/16
# See www.tcl3d.org for the Tcl3D extension.
package require Img
package require tcl3d
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Determine the directory of this script.
set gDemo(scriptDir) [file dirname [info script]]
# Display mode.
set fullScreen false
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
set spin 0.0 ; # Spin Variable
set texture [tcl3dVector GLuint 2] ; # Storage For Two Textures
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetFullScreenMode { win } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win $sw $sh
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+0" $sw $sh]
wm geometry $win $fmtStr
wm overrideredirect $win 1
focus -force $win
}
proc SetWindowMode { win w h } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win 10 10
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+25" $w $h]
wm geometry $win $fmtStr
wm overrideredirect $win 0
focus -force $win
}
# Toggle between windowing and fullscreen mode.
proc ToggleWindowMode {} {
if { $::fullScreen } {
SetFullScreenMode .
set ::fullScreen false
} else {
SetWindowMode . $::gDemo(winWidth) $::gDemo(winHeight)
set ::fullScreen true
}
}
proc LoadImage { imgName numChans } {
if { $numChans != 3 && $numChans != 4 } {
error "Error: Only 3 or 4 channels allowed ($numChans supplied)"
}
set texName [file join $::gDemo(scriptDir) "Data" $imgName]
set retVal [catch {set phImg [image create photo -file $texName]} err1]
if { $retVal != 0 } {
error "Error reading image $texName ($err1)"
} else {
set w [image width $phImg]
set h [image height $phImg]
set texImg [tcl3dVectorFromPhoto $phImg $numChans]
image delete $phImg
}
return [list $texImg $w $h]
}
proc LoadGLTextures {} {
# Load uncompressed texture image.
set imgInfo [LoadImage "Uncompressed.tga" 3]
set imgData(0) [lindex $imgInfo 0]
set imgWidth(0) [lindex $imgInfo 1]
set imgHeight(0) [lindex $imgInfo 2]
# Load compressed texture image.
set imgInfo [LoadImage "Compressed.tga" 3]
set imgData(1) [lindex $imgInfo 0]
set imgWidth(1) [lindex $imgInfo 1]
set imgHeight(1) [lindex $imgInfo 2]
# Create The Textures
glGenTextures 2 $::texture
for { set i 0 } { $i < 2 } { incr i } {
glBindTexture GL_TEXTURE_2D [$::texture get $i]
glTexImage2D GL_TEXTURE_2D 0 3 $imgWidth($i) $imgHeight($i) \
0 GL_RGB GL_UNSIGNED_BYTE $imgData($i)
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_LINEAR
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_LINEAR
}
# Delete the image data vectors.
for { set i 0 } { $i < 2 } { incr i } {
$imgData($i) delete
}
}
# Resize And Initialize The GL Window
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h ; # Reset The Current Viewport
glMatrixMode GL_PROJECTION ; # Select The Projection Matrix
glLoadIdentity ; # Reset The Projection Matrix
# Calculate The Aspect Ratio Of The Window
gluPerspective 45.0 [expr double($w)/double($h)] 0.1 100.0
glMatrixMode GL_MODELVIEW ; # Select The Modelview Matrix
glLoadIdentity ; # Reset The Modelview Matrix
set ::gDemo(winWidth) $w
set ::gDemo(winHeight) $h
}
# All Setup For OpenGL Goes Here
proc CreateCallback { toglwin } {
LoadGLTextures ; # Jump To Texture Loading Routine
glEnable GL_TEXTURE_2D ; # Enable Texture Mapping
glShadeModel GL_SMOOTH ; # Enable Smooth Shading
glClearColor 0.0 0.0 0.0 0.5 ; # Black Background
glClearDepth 1.0 ; # Depth Buffer Setup
glEnable GL_DEPTH_TEST ; # Enables Depth Testing
glDepthFunc GL_LEQUAL ; # The Type Of Depth Testing To Do
glHint GL_PERSPECTIVE_CORRECTION_HINT GL_NICEST ; # Really Nice Perspective Calculations
}
# Here's Where We Do All The Drawing
proc DisplayCallback { toglwin } {
# Clear Screen And Depth Buffer
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glLoadIdentity ; # Reset The Current Modelview Matrix
glTranslatef 0.0 0.0 -10.0
if { [info exists ::animateId] } {
set ::spin [expr {$::spin + 0.05}]
}
for { set loop 0 } { $loop < 20 } { incr loop } {
glPushMatrix
glRotatef [expr {$::spin+$loop*18.0}] 1.0 0.0 0.0 ; # Rotate On The X-Axis (Up - Down)
glTranslatef -2.0 2.0 0.0
glBindTexture GL_TEXTURE_2D [$::texture get 0]
glBegin GL_QUADS
glTexCoord2f 0.0 1.0 ; glVertex3f -1.0 1.0 0.0
glTexCoord2f 1.0 1.0 ; glVertex3f 1.0 1.0 0.0
glTexCoord2f 1.0 0.0 ; glVertex3f 1.0 -1.0 0.0
glTexCoord2f 0.0 0.0 ; glVertex3f -1.0 -1.0 0.0
glEnd
glPopMatrix
glPushMatrix
glTranslatef 2.0 0.0 0.0 ; # Translate 2 Units To The Right
glRotatef [expr {$::spin+$loop*36.0}] 0.0 1.0 0.0 ; # Rotate On The Y-Axis (Left - Right)
glTranslatef 1.0 0.0 0.0 ; # Move One Unit Right
glBindTexture GL_TEXTURE_2D [$::texture get 1]
glBegin GL_QUADS
glTexCoord2f 0.0 1.0 ; glVertex3f -1.0 1.0 0.0
glTexCoord2f 1.0 1.0 ; glVertex3f 1.0 1.0 0.0
glTexCoord2f 1.0 0.0 ; glVertex3f 1.0 -1.0 0.0
glTexCoord2f 0.0 0.0 ; glVertex3f -1.0 -1.0 0.0
glEnd
glPopMatrix
}
$toglwin swapbuffers
}
proc Animate {} {
.fr.toglwin postredisplay
set ::animateId [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
if { ! [info exists ::animateId] } {
Animate
}
}
proc StopAnimation {} {
if { [info exists ::animateId] } {
after cancel $::animateId
unset ::animateId
}
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
frame .fr
pack .fr -expand 1 -fill both
# Create Our OpenGL Window
togl .fr.toglwin -width $::gDemo(winWidth) -height $::gDemo(winHeight) \
-double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 3
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

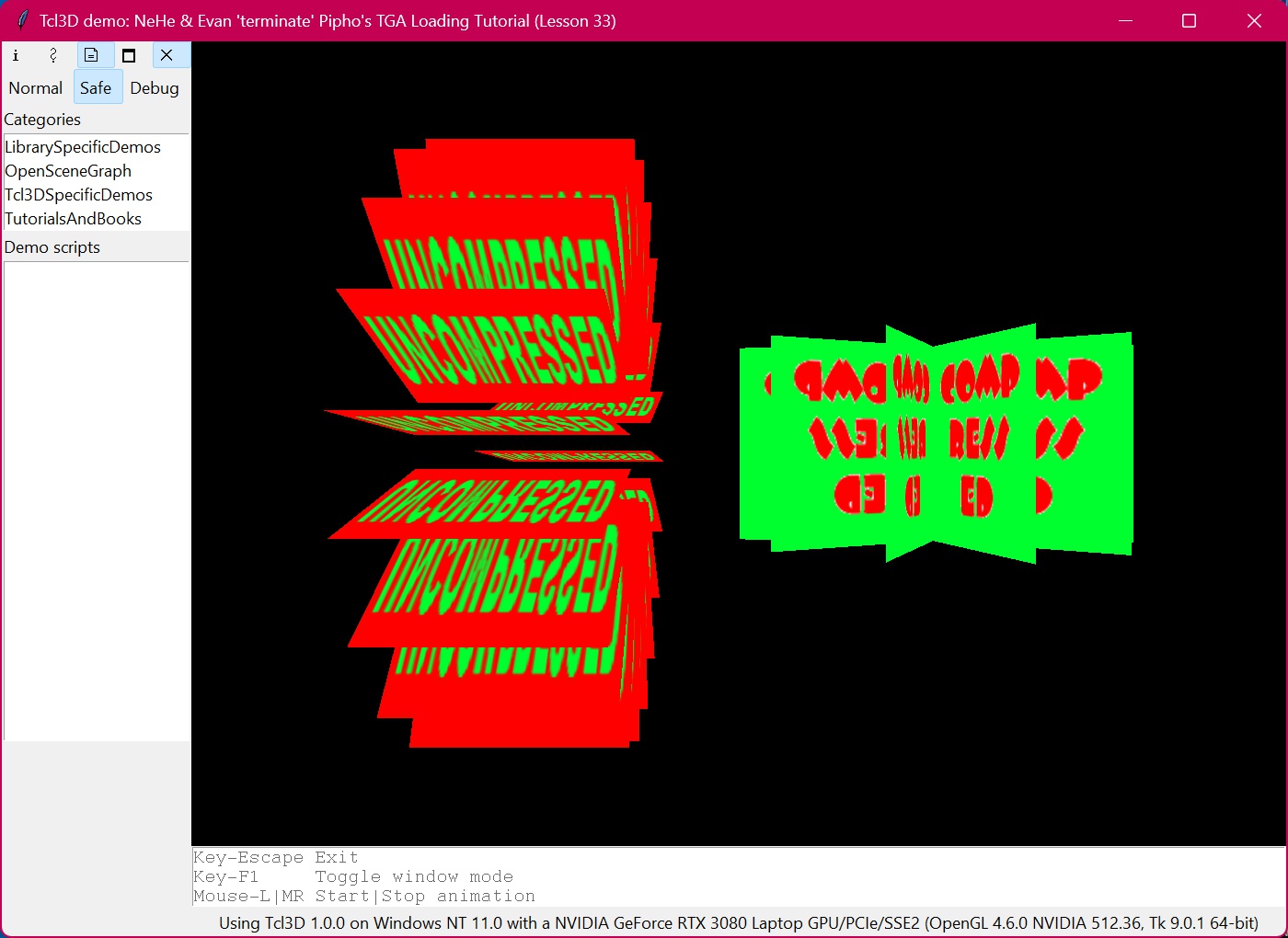

wm title . "Tcl3D demo: NeHe & Evan 'terminate' Pipho's TGA Loading Tutorial (Lesson 33)"
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-F1> "ToggleWindowMode"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-F1 Toggle window mode"
.fr.usage insert end "Mouse-L|MR Start|Stop animation"
.fr.usage configure -state disabled
}
CreateWindow
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
