# Lesson26.tcl
#
# Banu Octavian & NeHe's Stencil & Reflection Tutorial
#
# This code has been created by Banu Octavian aka Choko - 20 may 2000
# and uses NeHe tutorials as a starting point (window initialization,
# texture loading, GL initialization and code for keypresses) - very good
# tutorials, Jeff. If anyone is interested about the presented algorithm
# please e-mail me at boct@romwest.ro
#
# Code Commmenting And Clean Up By Jeff Molofee ( NeHe )
# If You've Found This Code Useful, Please Let Me Know.
# Visit My Site At nehe.gamedev.net
#
# Modified for Tcl3D by Paul Obermeier 2006/08/16
# See www.tcl3d.org for the Tcl3D extension.
package require Img
package require tcl3d
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Determine the directory of this script.
set gDemo(scriptDir) [file dirname [info script]]
# Display mode.
set fullScreen false
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
set xrot 0.0 ; # X Rotation
set yrot 0.0 ; # Y Rotation
set xrotspeed 0.0 ; # X Rotation Speed
set yrotspeed 0.5 ; # Y Rotation Speed
set zoom -7.0 ; # Depth Into The Screen
set height 2.0 ; # Height Of Ball From Floor
set LightAmb { 0.7 0.7 0.7 1.0 } ; # Ambient Light
set LightDif { 1.0 1.0 1.0 1.0 } ; # Diffuse Light
set LightPos { 4.0 4.0 6.0 1.0 } ; # Light Position
set texture [tcl3dVector GLuint 3] ; # Storage For 3 Textures
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetFullScreenMode { win } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win $sw $sh
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+0" $sw $sh]
wm geometry $win $fmtStr
wm overrideredirect $win 1
focus -force $win
}
proc SetWindowMode { win w h } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win 10 10
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+25" $w $h]
wm geometry $win $fmtStr
wm overrideredirect $win 0
focus -force $win
}
# Toggle between windowing and fullscreen mode.
proc ToggleWindowMode {} {
if { $::fullScreen } {
SetFullScreenMode .
set ::fullScreen false
} else {
SetWindowMode . $::gDemo(winWidth) $::gDemo(winHeight)
set ::fullScreen true
}
}
proc SetXRotSpeed { val } {
set ::xrotspeed [expr $::xrotspeed + $val]
}
proc SetYRotSpeed { val } {
set ::yrotspeed [expr $::yrotspeed + $val]
}
proc SetZoom { val } {
set ::zoom [expr $::zoom + $val]
.fr.toglwin postredisplay
}
proc SetHeight { val } {
set ::height [expr $::height + $val]
.fr.toglwin postredisplay
}
proc LoadImage { imgName numChans } {
if { $numChans != 3 && $numChans != 4 } {
error "Error: Only 3 or 4 channels allowed ($numChans supplied)"
}
set texName [file join $::gDemo(scriptDir) "Data" $imgName]
set retVal [catch {set phImg [image create photo -file $texName]} err1]
if { $retVal != 0 } {
error "Error reading image $texName ($err1)"
} else {
set w [image width $phImg]
set h [image height $phImg]
set texImg [tcl3dVectorFromPhoto $phImg $numChans]
image delete $phImg
}
return [list $texImg $w $h]
}
# Load Bitmaps And Convert To Textures
proc LoadGLTextures {} {
# Load The Floor Texture
set imgInfo [LoadImage "Envwall.bmp" 3]
set imgData(0) [lindex $imgInfo 0]
set imgWidth(0) [lindex $imgInfo 1]
set imgHeight(0) [lindex $imgInfo 2]
# Load The Light Texture
set imgInfo [LoadImage "Ball.bmp" 3]
set imgData(1) [lindex $imgInfo 0]
set imgWidth(1) [lindex $imgInfo 1]
set imgHeight(1) [lindex $imgInfo 2]
# Load The Wall Texture
set imgInfo [LoadImage "Envroll.bmp" 3]
set imgData(2) [lindex $imgInfo 0]
set imgWidth(2) [lindex $imgInfo 1]
set imgHeight(2) [lindex $imgInfo 2]
glGenTextures 3 $::texture ; # Create Three Textures
for { set i 0 } { $i < 3 } { incr i } {
glBindTexture GL_TEXTURE_2D [$::texture get $i]
glTexImage2D GL_TEXTURE_2D 0 3 $imgWidth($i) $imgHeight($i) \
0 GL_RGB GL_UNSIGNED_BYTE $imgData($i)
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_LINEAR
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_LINEAR
}
# Delete the image data vectors.
for { set i 0 } { $i < 3 } { incr i } {
$imgData($i) delete
}
}
# Draw Our Ball
proc DrawObject {} {
glColor3f 1.0 1.0 1.0 ; # Set Color To White
glBindTexture GL_TEXTURE_2D [$::texture get 1] ; # Select Texture 2 (1)
gluSphere $::quadric 0.35 32 16 ; # Draw First Sphere
glBindTexture GL_TEXTURE_2D [$::texture get 2] ; # Select Texture 3 (2)
glColor4f 1.0 1.0 1.0 0.4 ; # Set Color To White With 40% Alpha
glEnable GL_BLEND ; # Enable Blending
glBlendFunc GL_SRC_ALPHA GL_ONE ; # Set Blending Mode To Mix Based On SRC Alpha
glEnable GL_TEXTURE_GEN_S ; # Enable Sphere Mapping
glEnable GL_TEXTURE_GEN_T ; # Enable Sphere Mapping
gluSphere $::quadric 0.35 32 16 ; # Draw Another Sphere Using New Texture
# Textures Will Mix Creating A MultiTexture Effect (Reflection)
glDisable GL_TEXTURE_GEN_S ; # Disable Sphere Mapping
glDisable GL_TEXTURE_GEN_T ; # Disable Sphere Mapping
glDisable GL_BLEND ; # Disable Blending
}
# Draw The Floor
proc DrawFloor {} {
glBindTexture GL_TEXTURE_2D [$::texture get 0] ; # Select Texture 1 (0)
glBegin GL_QUADS ; # Begin Drawing A Quad
glNormal3f 0.0 1.0 0.0 ; # Normal Pointing Up
glTexCoord2f 0.0 1.0 ; # Bottom Left Of Texture
glVertex3f -2.0 0.0 2.0 ; # Bottom Left Corner Of Floor
glTexCoord2f 0.0 0.0 ; # Top Left Of Texture
glVertex3f -2.0 0.0 -2.0 ; # Top Left Corner Of Floor
glTexCoord2f 1.0 0.0 ; # Top Right Of Texture
glVertex3f 2.0 0.0 -2.0 ; # Top Right Corner Of Floor
glTexCoord2f 1.0 1.0 ; # Bottom Right Of Texture
glVertex3f 2.0 0.0 2.0 ; # Bottom Right Corner Of Floor
glEnd ; # Done Drawing The Quad
}
# Resize And Initialize The GL Window
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h ; # Reset The Current Viewport
glMatrixMode GL_PROJECTION ; # Select The Projection Matrix
glLoadIdentity ; # Reset The Projection Matrix
# Calculate The Aspect Ratio Of The Window
gluPerspective 45.0 [expr double($w)/double($h)] 0.1 100.0
glMatrixMode GL_MODELVIEW ; # Select The Modelview Matrix
glLoadIdentity ; # Reset The Modelview Matrix
set ::gDemo(winWidth) $w
set ::gDemo(winHeight) $h
}
# All Setup For OpenGL Goes Here
proc CreateCallback { toglwin } {
LoadGLTextures ; # Jump To Texture Loading Routine
glShadeModel GL_SMOOTH ; # Enable Smooth Shading
glClearColor 0.2 0.5 1.0 1.0 ; # Background
glClearDepth 1.0 ; # Depth Buffer Setup
glClearStencil 0 ; # Clear The Stencil Buffer To 0
glEnable GL_DEPTH_TEST ; # Enables Depth Testing
glDepthFunc GL_LEQUAL ; # The Type Of Depth Testing To Do
glHint GL_PERSPECTIVE_CORRECTION_HINT GL_NICEST ; # Really Nice Perspective Calculations
glEnable GL_TEXTURE_2D ; # Enable 2D Texture Mapping
glLightfv GL_LIGHT0 GL_AMBIENT $::LightAmb ; # Set The Ambient Lighting For Light0
glLightfv GL_LIGHT0 GL_DIFFUSE $::LightDif ; # Set The Diffuse Lighting For Light0
glLightfv GL_LIGHT0 GL_POSITION $::LightPos ; # Set The Position For Light0
glEnable GL_LIGHT0 ; # Enable Light 0
glEnable GL_LIGHTING ; # Enable Lighting
set ::quadric [gluNewQuadric] ; # Create A New Quadratic
gluQuadricNormals $::quadric GL_SMOOTH ; # Generate Smooth Normals For The Quad
gluQuadricTexture $::quadric GL_TRUE ; # Enable Texture Coords For The Quad
glTexGeni GL_S GL_TEXTURE_GEN_MODE $::GL_SPHERE_MAP ; # Set Up Sphere Mapping
glTexGeni GL_T GL_TEXTURE_GEN_MODE $::GL_SPHERE_MAP ; # Set Up Sphere Mapping
}
# Here's Where We Do All The Drawing
proc DisplayCallback { toglwin } {
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT | $::GL_STENCIL_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
# Clip Plane Equations
set eqr { 0.0 -1.0 0.0 0.0 } ; # Plane Equation To Use For The Reflected Objects
glLoadIdentity ; # Reset The Modelview Matrix
glTranslatef 0.0 -0.6 $::zoom ; # Zoom And Raise Camera Above The Floor (Up 0.6 Units)
glColorMask 0 0 0 0 ; # Set Color Mask
glEnable GL_STENCIL_TEST ; # Enable Stencil Buffer For "marking" The Floor
glStencilFunc GL_ALWAYS 1 1 ; # Always Passes, 1 Bit Plane, 1 As Mask
glStencilOp GL_KEEP GL_KEEP GL_REPLACE ; # We Set The Stencil Buffer To 1 Where We Draw Any Polygon
# Keep If Test Fails, Keep If Test Passes But Buffer Test Fails
# Replace If Test Passes
glDisable GL_DEPTH_TEST ; # Disable Depth Testing
DrawFloor ; # Draw The Floor (Draws To The Stencil Buffer)
# We Only Want To Mark It In The Stencil Buffer
glEnable GL_DEPTH_TEST ; # Enable Depth Testing
glColorMask 1 1 1 1 ; # Set Color Mask to TRUE, TRUE, TRUE, TRUE
glStencilFunc GL_EQUAL 1 1 ; # We Draw Only Where The Stencil Is 1
# (I.E. Where The Floor Was Drawn)
glStencilOp GL_KEEP GL_KEEP GL_KEEP ; # Don't Change The Stencil Buffer
glEnable GL_CLIP_PLANE0 ; # Enable Clip Plane For Removing Artifacts
# (When The Object Crosses The Floor)
glClipPlane GL_CLIP_PLANE0 $eqr ; # Equation For Reflected Objects
glPushMatrix ; # Push The Matrix Onto The Stack
glScalef 1.0 -1.0 1.0 ; # Mirror Y Axis
glLightfv GL_LIGHT0 GL_POSITION $::LightPos ; # Set Up Light0
glTranslatef 0.0 $::height 0.0 ; # Position The Object
glRotatef $::xrot 1.0 0.0 0.0 ; # Rotate Local Coordinate System On X Axis
glRotatef $::yrot 0.0 1.0 0.0 ; # Rotate Local Coordinate System On Y Axis
DrawObject ; # Draw The Sphere (Reflection)
glPopMatrix ; # Pop The Matrix Off The Stack
glDisable GL_CLIP_PLANE0 ; # Disable Clip Plane For Drawing The Floor
glDisable GL_STENCIL_TEST ; # We Don't Need The Stencil Buffer Any More (Disable)
glLightfv GL_LIGHT0 GL_POSITION $::LightPos ; # Set Up Light0 Position
glEnable GL_BLEND ; # Enable Blending (Otherwise The Reflected Object Wont Show)
glDisable GL_LIGHTING ; # Since We Use Blending, We Disable Lighting
glColor4f 1.0 1.0 1.0 0.8 ; # Set Color To White With 80% Alpha
glBlendFunc GL_SRC_ALPHA GL_ONE_MINUS_SRC_ALPHA ; # Blending Based On Source Alpha And 1 Minus Dest Alpha
DrawFloor ; # Draw The Floor To The Screen
glEnable GL_LIGHTING ; # Enable Lighting
glDisable GL_BLEND ; # Disable Blending
glTranslatef 0.0 $::height 0.0 ; # Position The Ball At Proper Height
glRotatef $::xrot 1.0 0.0 0.0 ; # Rotate On The X Axis
glRotatef $::yrot 0.0 1.0 0.0 ; # Rotate On The Y Axis
DrawObject ; # Draw The Ball
if { [info exists ::animateId] } {
set ::xrot [expr $::xrot + $::xrotspeed] ; # Update X Rotation Angle By xrotspeed
set ::yrot [expr $::yrot + $::yrotspeed] ; # Update Y Rotation Angle By Yrotspeed
}
glFlush ; # Flush The GL Pipeline
$toglwin swapbuffers
}
proc Animate {} {
.fr.toglwin postredisplay
set ::animateId [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
if { ! [info exists ::animateId] } {
Animate
}
}
proc StopAnimation {} {
if { [info exists ::animateId] } {
after cancel $::animateId
unset ::animateId
}
}
proc Cleanup {} {
if { [info exists ::quadric] } {
gluDeleteQuadric $::quadric
}
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
frame .fr
pack .fr -expand 1 -fill both
# Create Our OpenGL Window
togl .fr.toglwin -width $::gDemo(winWidth) -height $::gDemo(winHeight) \
-swapinterval 1 \
-double true -depth true -alpha true -stencil true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 7
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

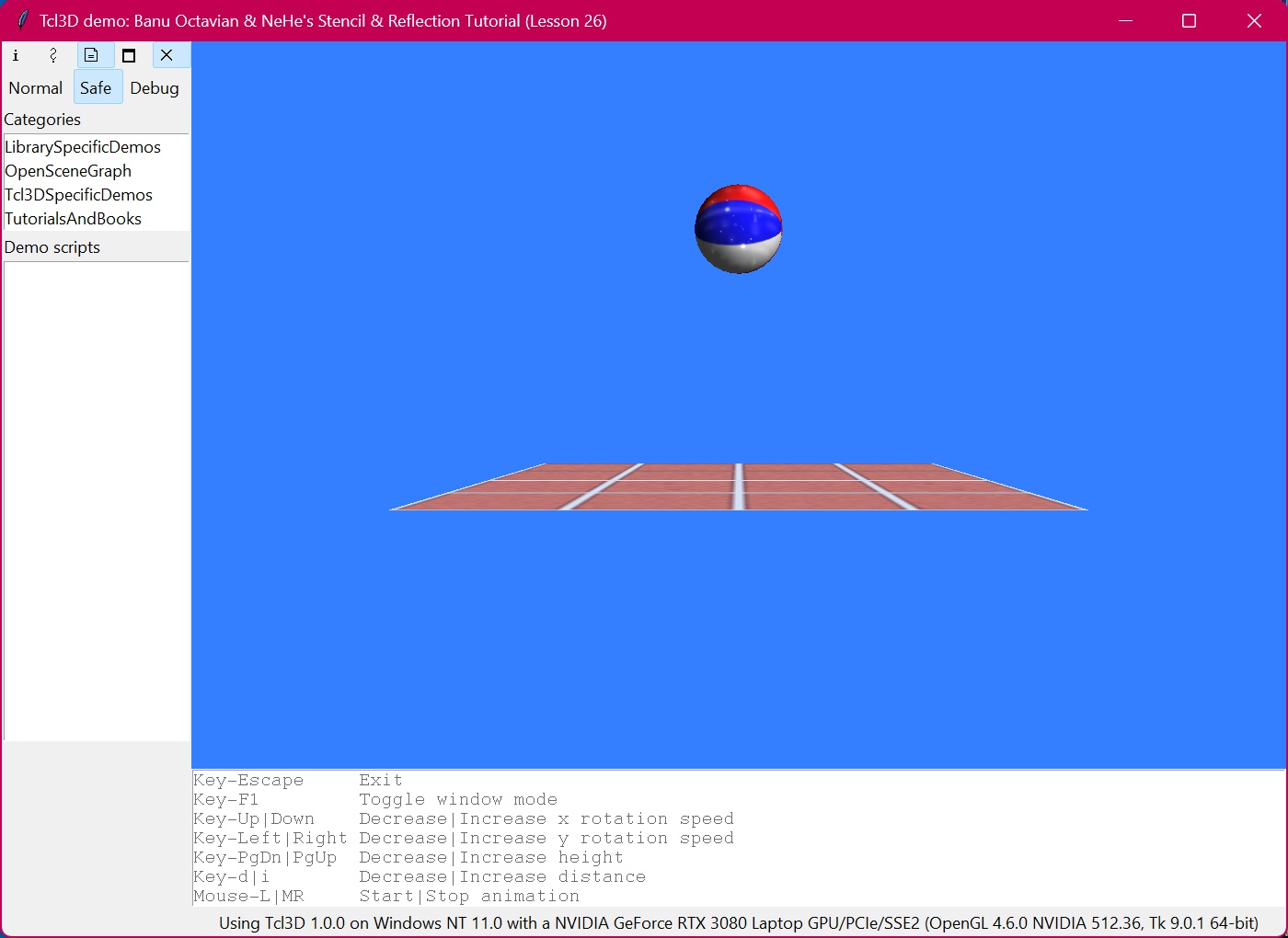

wm title . "Tcl3D demo: Banu Octavian & NeHe's Stencil & Reflection Tutorial (Lesson 26)"
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-F1> "ToggleWindowMode"
bind . <Key-Up> "SetXRotSpeed -0.08"
bind . <Key-Down> "SetXRotSpeed 0.08"
bind . <Key-Left> "SetYRotSpeed -0.08"
bind . <Key-Right> "SetYRotSpeed 0.08"
bind . <Key-d> "SetZoom 0.05"
bind . <Key-i> "SetZoom -0.05"
bind . <Key-Prior> "SetHeight 0.03"
bind . <Key-Next> "SetHeight -0.03"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-F1 Toggle window mode"
.fr.usage insert end "Key-Up|Down Decrease|Increase x rotation speed"
.fr.usage insert end "Key-Left|Right Decrease|Increase y rotation speed"
.fr.usage insert end "Key-PgDn|PgUp Decrease|Increase height"
.fr.usage insert end "Key-d|i Decrease|Increase distance"
.fr.usage insert end "Mouse-L|MR Start|Stop animation"
.fr.usage configure -state disabled
}
CreateWindow
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
