# Lesson23.tcl
#
# NeHe & TipTup's Environment Mapping Tutorial
#
# This Code Was Created By Jeff Molofee and GB Schmick 2000
# A HUGE Thanks To Fredric Echols For Cleaning Up
# And Optimizing The Base Code, Making It More Flexible!
# If You've Found This Code Useful, Please Let Me Know.
# Visit Our Sites At www.tiptup.com and nehe.gamedev.net
#
# Modified for Tcl3D by Paul Obermeier 2006/08/27
# See www.tcl3d.org for the Tcl3D extension.
package require Img
package require tcl3d
# Font to be used in the Tk listbox.
set listFont {-family {Courier} -size 10}
# Determine the directory of this script.
set gDemo(scriptDir) [file dirname [info script]]
# Display mode.
set fullScreen false
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
set light false ; # Lighting ON/OFF
set part1 0 ; # Start Of Disc
set part2 0 ; # End Of Disc
set p1 0 ; # Increase 1
set p2 1 ; # Increase 2
set xrot 0.0 ; # X Rotation
set yrot 0.0 ; # Y Rotation
set xspeed 0.05 ; # X Rotation Speed
set yspeed 0.05 ; # Y Rotation Speed
set z -10.0 ; # Depth Into The Screen
set LightAmbient { 0.5 0.5 0.5 1.0 } ; # Ambient Light
set LightDiffuse { 1.0 1.0 1.0 1.0 } ; # Diffuse Light
set LightPosition { 0.0 0.0 2.0 1.0 } ; # Light Position
set filter 0 ; # Which Filter To Use
set object 1 ; # Which Object To Draw
set texture [tcl3dVector GLuint 6] ; # Storage For 6 Textures
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetFullScreenMode { win } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win $sw $sh
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+0" $sw $sh]
wm geometry $win $fmtStr
wm overrideredirect $win 1
focus -force $win
}
proc SetWindowMode { win w h } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win 10 10
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+25" $w $h]
wm geometry $win $fmtStr
wm overrideredirect $win 0
focus -force $win
}
# Toggle between windowing and fullscreen mode.
proc ToggleWindowMode {} {
if { $::fullScreen } {
SetFullScreenMode .
set ::fullScreen false
} else {
SetWindowMode . $::gDemo(winWidth) $::gDemo(winHeight)
set ::fullScreen true
}
}
# Toggle lighting on or off.
proc ToggleLighting {} {
set ::light [expr ! $::light]
if { $::light } {
glEnable GL_LIGHTING
} else {
glDisable GL_LIGHTING
}
.fr.toglwin postredisplay
}
# Toggle between the different texture filters.
proc ToggleFilter {} {
incr ::filter
if { $::filter > 2 } {
set ::filter 0
}
.fr.toglwin postredisplay
}
# Toggle between the different objects.
proc ToggleObject {} {
incr ::object
if { $::object > 3 } {
set ::object 0
}
.fr.toglwin postredisplay
}
proc ResetRotation {} {
set ::xspeed 0.0
set ::yspeed 0.0
set ::xrot 0.0
set ::yrot 0.0
.fr.toglwin postredisplay
}
proc SetXSpeed { val } {
set ::xspeed [expr $::xspeed + $val]
}
proc SetYSpeed { val } {
set ::yspeed [expr $::yspeed + $val]
}
proc SetZoom { val } {
set ::z [expr $::z + $val]
}
proc LoadImage { imgName numChans } {
if { $numChans != 3 && $numChans != 4 } {
error "Error: Only 3 or 4 channels allowed ($numChans supplied)"
}
set texName [file join $::gDemo(scriptDir) "Data" $imgName]
set retVal [catch {set phImg [image create photo -file $texName]} err1]
if { $retVal != 0 } {
error "Error reading image $texName ($err1)"
} else {
set w [image width $phImg]
set h [image height $phImg]
set texImg [tcl3dVectorFromPhoto $phImg $numChans]
image delete $phImg
}
return [list $texImg $w $h]
}
# Load Bitmaps And Convert To Textures
proc LoadGLTextures {} {
# Load The Background Texture
set imgInfo [LoadImage "BG.bmp" 3]
set imgData(0) [lindex $imgInfo 0]
set imgWidth(0) [lindex $imgInfo 1]
set imgHeight(0) [lindex $imgInfo 2]
# Load The Reflection Texture
set imgInfo [LoadImage "Reflect.bmp" 3]
set imgData(1) [lindex $imgInfo 0]
set imgWidth(1) [lindex $imgInfo 1]
set imgHeight(1) [lindex $imgInfo 2]
glGenTextures 6 $::texture ; # Create Three Textures For Each Image
for { set i 0 } { $i < 2 } { incr i } {
# Gen Tex 0 and 1
glBindTexture GL_TEXTURE_2D [$::texture get $i]
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_NEAREST
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_NEAREST
glTexImage2D GL_TEXTURE_2D 0 3 $imgWidth($i) $imgHeight($i) \
0 GL_RGB GL_UNSIGNED_BYTE $imgData($i)
# Gen Tex 2 and 3
glBindTexture GL_TEXTURE_2D [$::texture get [expr $i +2]]
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_LINEAR
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_LINEAR
glTexImage2D GL_TEXTURE_2D 0 3 $imgWidth($i) $imgHeight($i) \
0 GL_RGB GL_UNSIGNED_BYTE $imgData($i)
# Gen Tex 4 and 5
glBindTexture GL_TEXTURE_2D [$::texture get [expr $i +4]]
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_LINEAR
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_LINEAR
gluBuild2DMipmaps GL_TEXTURE_2D 3 $imgWidth($i) $imgHeight($i) \
GL_RGB GL_UNSIGNED_BYTE $imgData($i)
}
# Delete the image data vectors.
for { set i 0 } { $i < 2 } { incr i } {
$imgData($i) delete
}
}
# Resize And Initialize The GL Window
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h ; # Reset The Current Viewport
glMatrixMode GL_PROJECTION ; # Select The Projection Matrix
glLoadIdentity ; # Reset The Projection Matrix
# Calculate The Aspect Ratio Of The Window
gluPerspective 45.0 [expr double($w)/double($h)] 0.1 100.0
glMatrixMode GL_MODELVIEW ; # Select The Modelview Matrix
glLoadIdentity ; # Reset The Modelview Matrix
set ::gDemo(winWidth) $w
set ::gDemo(winHeight) $h
}
# All Setup For OpenGL Goes Here
proc CreateCallback { toglwin } {
LoadGLTextures ; # Jump To Texture Loading Routine
glEnable GL_TEXTURE_2D ; # Enable 2D Texture Mapping
glShadeModel GL_SMOOTH ; # Enable Smooth Shading
glClearColor 0.0 0.0 0.0 0.5 ; # Black Background
glClearDepth 1.0 ; # Depth Buffer Setup
glEnable GL_DEPTH_TEST ; # Enables Depth Testing
glDepthFunc GL_LEQUAL ; # The Type Of Depth Testing To Do
glHint GL_PERSPECTIVE_CORRECTION_HINT GL_NICEST ; # Really Nice Perspective Calculations
glLightfv GL_LIGHT1 GL_AMBIENT $::LightAmbient ; # Set The Ambient Lighting For Light0
glLightfv GL_LIGHT1 GL_DIFFUSE $::LightDiffuse ; # Set The Diffuse Lighting For Light0
glLightfv GL_LIGHT1 GL_POSITION $::LightPosition ; # Set The Position For Light0
glEnable GL_LIGHT1 ; # Enable Light 0
set ::quadric [gluNewQuadric] ; # Create A New Quadratic
gluQuadricNormals $::quadric GLU_SMOOTH ; # Generate Smooth Normals For The Quad
gluQuadricTexture $::quadric GL_TRUE ; # Enable Texture Coords For The Quad
glTexGeni GL_S GL_TEXTURE_GEN_MODE $::GL_SPHERE_MAP ; # Set Up Sphere Mapping
glTexGeni GL_T GL_TEXTURE_GEN_MODE $::GL_SPHERE_MAP ; # Set Up Sphere Mapping
}
# Here's Where We Do All The Drawing
proc DisplayCallback { toglwin } {
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glLoadIdentity ; # Reset The Modelview Matrix
glTranslatef 0.0 0.0 $::z
glEnable GL_TEXTURE_GEN_S ; # Enable Texture Coord Generation For S (NEW)
glEnable GL_TEXTURE_GEN_T ; # Enable Texture Coord Generation For T (NEW)
# This Will Select The Sphere Map
set ind [expr {$::filter+($::filter+1)}]
glBindTexture GL_TEXTURE_2D [$::texture get $ind]
glPushMatrix
glRotatef $::xrot 1.0 0.0 0.0
glRotatef $::yrot 0.0 1.0 0.0
switch -exact -- $::object {
0 {
tcl3dCube 0.0 0.0 0.0 2.0
}
1 {
# A Cylinder With A Radius Of 0.5 And A Height Of 2
glTranslatef 0.0 0.0 -1.5 ; # Center The Cylinder
gluCylinder $::quadric 1.0 1.0 3.0 32 32
}
2 {
# Draw A Sphere With A Radius Of 1 And 16 Longitude And 16 Latitude Segments
gluSphere $::quadric 1.3 32 32
}
3 {
# A Cone With A Bottom Radius Of .5 And A Height Of 2
glTranslatef 0.0 0.0 -1.5 ; # Center The Cone
gluCylinder $::quadric 1.0 0.0 3.0 32 32
}
}
glPopMatrix
glDisable GL_TEXTURE_GEN_S
glDisable GL_TEXTURE_GEN_T
# This Will Select The BG Maps...
glBindTexture GL_TEXTURE_2D [$::texture get [expr {$::filter*2}]]
glPushMatrix
glTranslatef 0.0 0.0 -24.0
glBegin GL_QUADS
glNormal3f 0.0 0.0 1.0
glTexCoord2f 0.0 0.0 ; glVertex3f -13.3 -10.0 10.0
glTexCoord2f 1.0 0.0 ; glVertex3f 13.3 -10.0 10.0
glTexCoord2f 1.0 1.0 ; glVertex3f 13.3 10.0 10.0
glTexCoord2f 0.0 1.0 ; glVertex3f -13.3 10.0 10.0
glEnd
glPopMatrix
set ::xrot [expr {$::xrot + $::xspeed}]
set ::yrot [expr {$::yrot + $::yspeed}]
$toglwin swapbuffers
}
proc Animate {} {
.fr.toglwin postredisplay
set ::animateId [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
if { ! [info exists ::animateId] } {
Animate
}
}
proc StopAnimation {} {
if { [info exists ::animateId] } {
after cancel $::animateId
unset ::animateId
}
}
proc Cleanup {} {
if { [info exists ::quadric] } {
gluDeleteQuadric $::quadric
}
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
frame .fr
pack .fr -expand 1 -fill both
# Create Our OpenGL Window
togl .fr.toglwin -width $::gDemo(winWidth) -height $::gDemo(winHeight) \
-double true -depth true -alpha true \
-swapinterval 1 \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::listFont -height 10
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

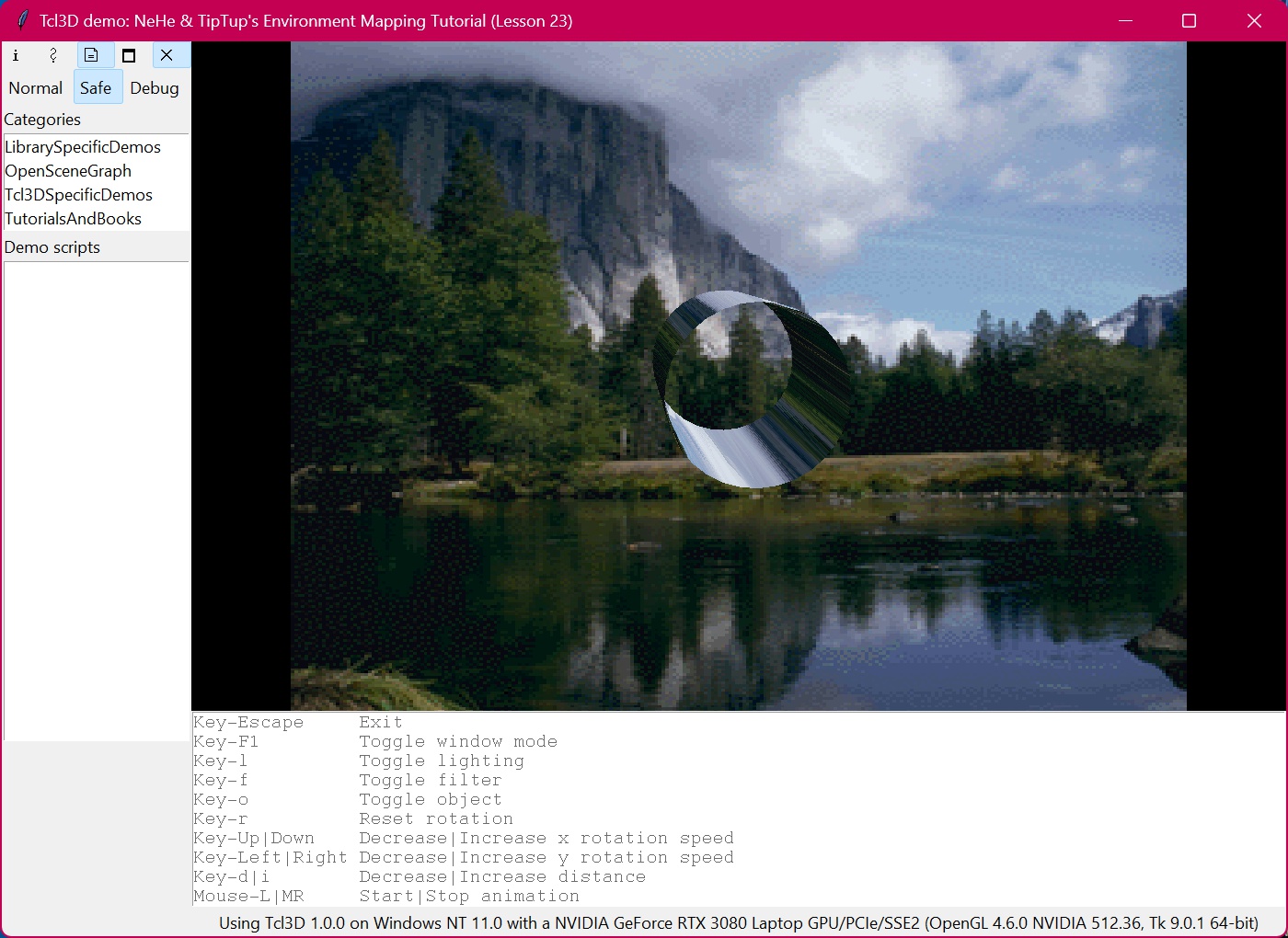

wm title . "Tcl3D demo: NeHe & TipTup's Environment Mapping Tutorial (Lesson 23)"
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-F1> "ToggleWindowMode"
bind . <Key-l> "ToggleLighting"
bind . <Key-f> "ToggleFilter"
bind . <Key-o> "ToggleObject"
bind . <Key-r> "ResetRotation"
bind . <Key-Up> "SetXSpeed -0.05"
bind . <Key-Down> "SetXSpeed 0.05"
bind . <Key-Left> "SetYSpeed -0.05"
bind . <Key-Right> "SetYSpeed 0.05"
bind . <Key-d> "SetZoom 0.05"
bind . <Key-i> "SetZoom -0.05"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-F1 Toggle window mode"
.fr.usage insert end "Key-l Toggle lighting"
.fr.usage insert end "Key-f Toggle filter"
.fr.usage insert end "Key-o Toggle object"
.fr.usage insert end "Key-r Reset rotation"
.fr.usage insert end "Key-Up|Down Decrease|Increase x rotation speed"
.fr.usage insert end "Key-Left|Right Decrease|Increase y rotation speed"
.fr.usage insert end "Key-d|i Decrease|Increase distance"
.fr.usage insert end "Mouse-L|MR Start|Stop animation"
.fr.usage configure -state disabled
}
CreateWindow
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
