# Lesson04.tcl
#
# NeHe's Rotation Tutorial
#
# This Code Was Created By Jeff Molofee 2000
# A HUGE Thanks To Fredric Echols For Cleaning Up
# And Optimizing This Code, Making It More Flexible!
# If You've Found This Code Useful, Please Let Me Know.
# Visit My Site At nehe.gamedev.net
#
# Modified for Tcl3D by Paul Obermeier 2006/01/25
# See www.tcl3d.org for the Tcl3D extension.
package require tcl3d
# Font to be used in the Tk listbox.
set gDemo(listFont) {-family {Courier} -size 10}
# Obtain the name of this script file.
set gDemo(scriptFile) [info script]
# Display mode.
set gDemo(fullScreen) false
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
set gDemo(rtri) 0.0 ; # Angle For The Triangle ( NEW )
set gDemo(rquad) 0.0 ; # Angle For The Quad ( NEW )
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetFullScreenMode { win } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win $sw $sh
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+0" $sw $sh]
wm geometry $win $fmtStr
wm overrideredirect $win 1
focus -force $win
}
proc SetWindowMode { win w h } {
set sh [winfo screenheight $win]
set sw [winfo screenwidth $win]
wm minsize $win 10 10
wm maxsize $win $sw $sh
set fmtStr [format "%dx%d+0+25" $w $h]
wm geometry $win $fmtStr
wm overrideredirect $win 0
focus -force $win
}
# Toggle between windowing and fullscreen mode.
proc ToggleWindowMode {} {
if { $::gDemo(fullScreen) } {
SetFullScreenMode .
set ::gDemo(fullScreen) false
} else {
SetWindowMode . $::gDemo(winWidth) $::gDemo(winHeight)
set ::gDemo(fullScreen) true
}
}
# Resize And Initialize The GL Window
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h ; # Reset The Current Viewport
glMatrixMode GL_PROJECTION ; # Select The Projection Matrix
glLoadIdentity ; # Reset The Projection Matrix
# Calculate The Aspect Ratio Of The Window
gluPerspective 45.0 [expr double($w)/double($h)] 0.1 100.0
glMatrixMode GL_MODELVIEW ; # Select The Modelview Matrix
glLoadIdentity ; # Reset The Modelview Matrix
set ::gDemo(winWidth) $w
set ::gDemo(winHeight) $h
}
# All Setup For OpenGL Goes Here
proc CreateCallback { toglwin } {
glShadeModel GL_SMOOTH ; # Enable Smooth Shading
glClearColor 0.0 0.0 0.0 0.5 ; # Black Background
glClearDepth 1.0 ; # Depth Buffer Setup
glEnable GL_DEPTH_TEST ; # Enables Depth Testing
glDepthFunc GL_LEQUAL ; # The Type Of Depth Testing To Do
glHint GL_PERSPECTIVE_CORRECTION_HINT GL_NICEST ; # Really Nice Perspective Calculations
}
proc Animate {} {
.fr.toglwin postredisplay
set ::animateId [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
if { ! [info exists ::animateId] } {
Animate
}
}
proc StopAnimation {} {
if { [info exists ::animateId] } {
after cancel $::animateId
unset ::animateId
}
}
# Here's Where We Do All The Drawing
proc DisplayCallback { toglwin } {
# Clear Screen And Depth Buffer
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glLoadIdentity ; # Reset The Current Modelview Matrix
glTranslatef -1.5 0.0 -6.0 ; # Move Left 1.5 Units And Into The Screen 6.0
glRotatef $::gDemo(rtri) 0.0 1.0 0.0 ; # Rotate The Triangle On The Y axis ( NEW )
glBegin GL_TRIANGLES ; # Drawing Using Triangles
glColor3f 1.0 0.0 0.0 ; # Set The Color To Red
glVertex3f 0.0 1.0 0.0 ; # Top
glColor3f 0.0 1.0 0.0 ; # Set The Color To Green
glVertex3f -1.0 -1.0 0.0 ; # Bottom Left
glColor3f 0.0 0.0 1.0 ; # Set The Color To Blue
glVertex3f 1.0 -1.0 0.0 ; # Bottom Right
glEnd ; # Finished Drawing The Triangle
glLoadIdentity ; # Reset The Current Modelview Matrix
glTranslatef 1.5 0.0 -6.0 ; # Move Right 1.5 Units And Into The Screen 6.0
glRotatef $::gDemo(rquad) 1.0 0.0 0.0 ; # Rotate The Quad On The X axis ( NEW )
glColor3f 0.5 0.5 1.0 ; # Set The Color To Blue One Time Only
glBegin GL_QUADS ; # Draw A Quad
glVertex3f -1.0 1.0 0.0 ; # Top Left
glVertex3f 1.0 1.0 0.0 ; # Top Right
glVertex3f 1.0 -1.0 0.0 ; # Bottom Right
glVertex3f -1.0 -1.0 0.0 ; # Bottom Left
glEnd
set ::gDemo(rtri) [expr $::gDemo(rtri) + 0.2] ; # Increase The Rotation Variable For The Triangle ( NEW )
set ::gDemo(rquad) [expr $::gDemo(rquad) -0.15] ; # Decrease The Rotation Variable For The Quad ( NEW )
$toglwin swapbuffers
}
proc Cleanup {} {
uplevel #0 unset gDemo
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create a PDF file of the window contents.
proc CreatePdf { toglwin } {
if { [tcl3dHaveGl2ps] } {
set fileName [format "%s.%s" [file rootname $::gDemo(scriptFile)] "pdf"]
# Create a name on the file system, if running from within a Starpack.
set fileName [tcl3dGenExtName $fileName]
tcl3dGl2psCreatePdf $toglwin $fileName "[wm title .]"
} else {
tk_messageBox -icon info -type ok -title "Info" \
-message "PDF creation needs the gl2ps extension.\n\
Available in Tcl3D versions greater than 0.3."
}
$toglwin postredisplay
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
frame .fr
pack .fr -expand 1 -fill both
# Create Our OpenGL Window
togl .fr.toglwin -width $::gDemo(winWidth) -height $::gDemo(winHeight) \
-swapinterval 1 \
-double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::gDemo(listFont) -height 4
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

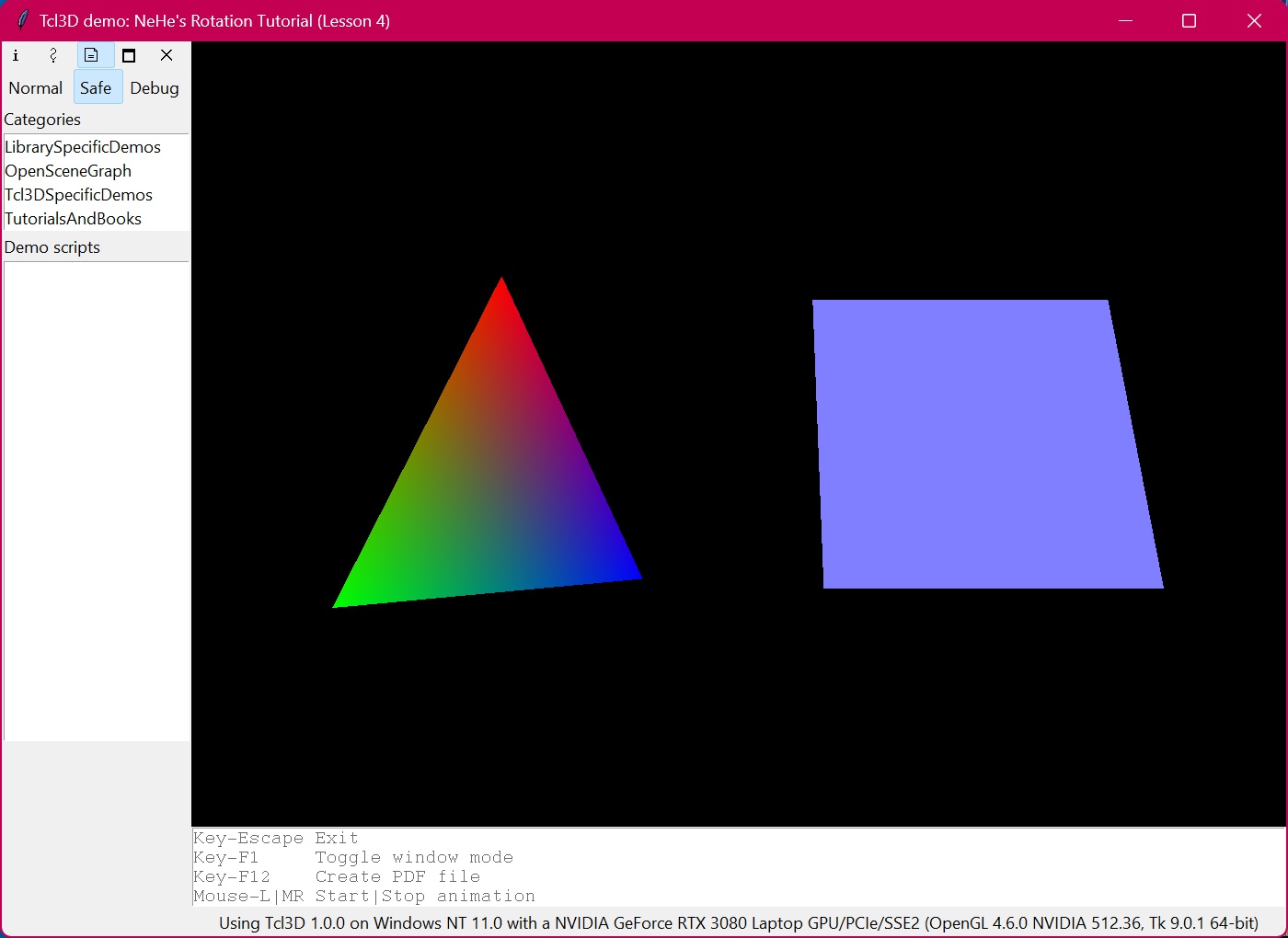

wm title . "Tcl3D demo: NeHe's Rotation Tutorial (Lesson 4)"
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-F1> "ToggleWindowMode"
bind . <Key-F12> "CreatePdf .fr.toglwin"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-F1 Toggle window mode"
.fr.usage insert end "Key-F12 Create PDF file"
.fr.usage insert end "Mouse-L|MR Start|Stop animation"
.fr.usage configure -state disabled
}
CreateWindow
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
