# Name: ogl_polygon_offset.cpp
# Author: Kevin Harris (kevin@codesampler.com)
# Last Modified: 02/01/05

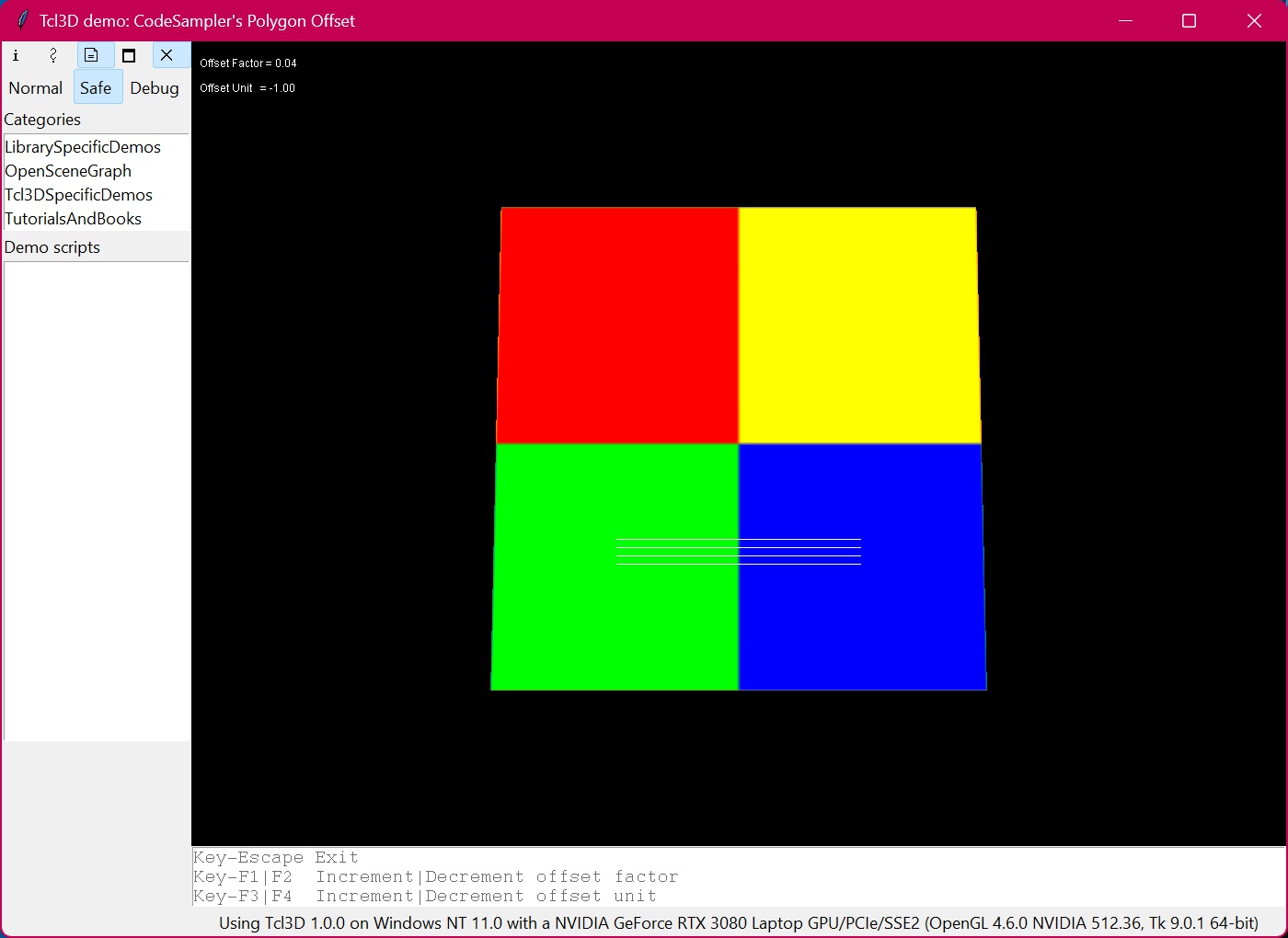

# Description: This sample demonstrates how to eliminate z-fighting when
# rendering polygons directly on top of other polygons.
#
# Control Keys: Left Mouse Button - Spin the view
# F1 - Increase Offset Factor
# F2 - Decrease Offset Factor
# F3 - Increase Offset Unit
# F4 - Decrease Offset Unit
#-----------------------------------------------------------------------------
#
# Original C++ code by Kevin Harris (kevin@codesampler.com)
# See www.codesampler.com for the original files
# OpenGL samples page 5: Polygon Offset
#
# Modified for Tcl3D by Paul Obermeier 2007/03/05
# See www.tcl3d.org for the Tcl3D extension.
#
# See http://www.opengl.org/sdk/docs/man/xhtml/glPolygonOffset.xml
# for the glPolygonOffset command.
package require Tk
package require Img
package require tcl3d
# Font to be used in the Tk listbox.
set g_listFont {-family {Courier} -size 10}
set g_WinWidth 640
set g_WinHeight 480
set g_OffsetFactor 0.04
set g_OffsetUnit -1.0
set g_LastMousePosX(1) 0
set g_LastMousePosY(1) 0
set g_fSpinX(1) 0.0
set g_fSpinY(1) 5.0
# Array of texture coordinates and vertices (GL_T2F_V3F) for glInterleavedArrays call.
set g_quadVertices [tcl3dVectorFromArgs GLfloat \
0.0 0.0 -1.0 -1.0 0.0 \
1.0 0.0 1.0 -1.0 0.0 \
1.0 1.0 1.0 1.0 0.0 \
0.0 1.0 -1.0 1.0 0.0 \
]
# Determine the directory of this script.
set g_scriptDir [file dirname [info script]]
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetOffsetFactor { toglwin val } {
set ::g_OffsetFactor [expr {$::g_OffsetFactor + $val}]
$toglwin postredisplay
}
proc SetOffsetUnit { toglwin val } {
set ::g_OffsetUnit [expr {$::g_OffsetUnit + $val}]
$toglwin postredisplay
}
proc SetMouseInput { btn x y } {
set ::g_LastMousePosX($btn) $x
set ::g_LastMousePosY($btn) $y
}
proc GetMouseInput { btn x y } {
set nXDiff [expr ($x - $::g_LastMousePosX($btn))]
set nYDiff [expr ($y - $::g_LastMousePosY($btn))]
set ::g_fSpinX($btn) [expr $::g_fSpinX($btn) - $nXDiff]
set ::g_fSpinY($btn) [expr $::g_fSpinY($btn) - $nYDiff]
set ::g_LastMousePosX($btn) $x
set ::g_LastMousePosY($btn) $y
.fr.toglwin postredisplay
}
proc LoadTexture {} {
set texName [file join $::g_scriptDir "checker.bmp"]
set retVal [catch {set phImg [image create photo -file $texName]} err1]
if { $retVal != 0 } {
error "Error reading image $texName ($err1)"
} else {
set w [image width $phImg]
set h [image height $phImg]
set n [tcl3dPhotoChans $phImg]
set pTextureImage [tcl3dVectorFromPhoto $phImg]
image delete $phImg
}
set ::g_textureID [tcl3dVector GLuint 1]
glGenTextures 1 $::g_textureID
glBindTexture GL_TEXTURE_2D [$::g_textureID get 0]
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_LINEAR
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_LINEAR
if { $n == 3 } {
set type $::GL_RGB
} else {
set type $::GL_RGBA
}
glTexImage2D GL_TEXTURE_2D 0 $n $w $h 0 $type GL_UNSIGNED_BYTE $pTextureImage
$pTextureImage delete
}
#-----------------------------------------------------------------------------
# Name: BeginRenderText
# Desc: Utility function for using the bitmap-based character fonts defined
# above. Call this function to begin rendering text. Call the function
# EndRenderText to stop.
#-----------------------------------------------------------------------------
proc BeginRenderText { toglwin nWindowWidth nWindowHeight } {
set ::FontBase [$toglwin loadbitmapfont]
# Push back and cache the current state of pixel alignment.
glPushClientAttrib GL_CLIENT_PIXEL_STORE_BIT
glPixelStorei GL_UNPACK_SWAP_BYTES $::GL_FALSE
glPixelStorei GL_UNPACK_LSB_FIRST $::GL_FALSE
glPixelStorei GL_UNPACK_ROW_LENGTH 0
glPixelStorei GL_UNPACK_SKIP_ROWS 0
glPixelStorei GL_UNPACK_SKIP_PIXELS 0
glPixelStorei GL_UNPACK_ALIGNMENT 1
# Push back and cache the current state of depth testing and lighting
# and then disable them.
glPushAttrib [expr $::GL_TEXTURE_BIT | $::GL_DEPTH_TEST | $::GL_LIGHTING]
glDisable GL_TEXTURE_2D
glDisable GL_DEPTH_TEST
glDisable GL_LIGHTING
# Push back the current matrices and go orthographic for text rendering.
glMatrixMode GL_PROJECTION
glPushMatrix
glLoadIdentity
glOrtho 0 $nWindowWidth $nWindowHeight 0 -1 1
glMatrixMode GL_MODELVIEW
glPushMatrix
glLoadIdentity
}
#-----------------------------------------------------------------------------
# Name: EndRenderText
# Desc: Utility function for using the bitmap-based character fonts defined
# above. Call this function to stop rendering text. The call to
# BeginRenderText should come first and be paired with this function.
#-----------------------------------------------------------------------------
proc EndRenderText { toglwin } {
$toglwin unloadbitmapfont $::FontBase
unset ::FontBase
# Pop everything back to what ever it was set to before we started
# rendering text to the screen.
glMatrixMode GL_PROJECTION
glPopMatrix
glMatrixMode GL_MODELVIEW
glPopMatrix
glPopClientAttrib
glPopAttrib
}
#-----------------------------------------------------------------------------
# Name: RenderText
# Desc: Utility function for using the bitmap-based character fonts defined
# above. This function must be called in between a call to
# BeginRenderText and EndRenderText. See the example below:
#
# BeginRenderText $toglwin $nWindowWidth $nWindowHeight
# RenderText 5 10 "This is a test!"
# EndRenderText $toglwin
#
#-----------------------------------------------------------------------------
proc RenderText { x y str } {
set len [string length $str]
if { $len > 0 } {
glRasterPos2f $x $y
glListBase $::FontBase
set sa [tcl3dVectorFromString GLubyte $str]
glCallLists $len GL_UNSIGNED_BYTE $sa
$sa delete
}
}
proc CreateCallback { toglwin } {
LoadTexture
glClearColor 0.0 0.0 0.0 1.0
glEnable GL_TEXTURE_2D
glEnable GL_DEPTH_TEST
glMatrixMode GL_PROJECTION
glLoadIdentity
gluPerspective 45.0 [expr double($::g_WinWidth)/double($::g_WinHeight)] \
0.1 100.0
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
glMatrixMode GL_PROJECTION
glLoadIdentity
gluPerspective 45.0 [expr double($w)/double($h)] 0.1 100.0
}
proc DisplayCallback { toglwin } {
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
# Set up the model-view matrix for spinning the quads about and render the
# larger textured quad first.
glMatrixMode GL_MODELVIEW
glLoadIdentity
glTranslatef 0.0 0.0 -4.0
glRotatef [expr {-1.0 * $::g_fSpinY(1)}] 1.0 0.0 0.0
glRotatef [expr {-1.0 * $::g_fSpinX(1)}] 0.0 1.0 0.0
glBindTexture GL_TEXTURE_2D [$::g_textureID get 0]
glInterleavedArrays GL_T2F_V3F 0 $::g_quadVertices
glDrawArrays GL_QUADS 0 4
# Now, for the second quad, scale it down a bit but use the same
# translation and rotation matrices so we render it right on top of the
# first quad. This will, of course, cause some z-fighting issues, which
# we will fix via glPolygonOffset and GL_POLYGON_OFFSET_FILL.
# Use polygon offset
glEnable GL_POLYGON_OFFSET_FILL
glPolygonOffset $::g_OffsetFactor $::g_OffsetUnit
glScalef 0.5 0.5 0.0
glDisable GL_TEXTURE_2D
glInterleavedArrays GL_T2F_V3F 0 $::g_quadVertices
glDrawArrays GL_QUADS 0 4
glEnable GL_TEXTURE_2D
# Turn off polygon offset
glPolygonOffset 0.0 0.0
glDisable GL_POLYGON_OFFSET_FILL
# Output the current settings...
set strOffsetFactor [format "Offset Factor = %1.2f" $::g_OffsetFactor]
set strOffsetunit [format "Offset Unit = %1.2f" $::g_OffsetUnit]
BeginRenderText $toglwin $::g_WinWidth $::g_WinHeight
glColor3f 1.0 1.0 1.0
RenderText 5 15 $strOffsetFactor
RenderText 5 30 $strOffsetunit
EndRenderText $toglwin
$toglwin swapbuffers
}
proc Cleanup {} {
if { [info exists ::g_textureID] } {
glDeleteTextures 1 [$::g_textureID get 0]
$::g_textureID delete
}
$::g_quadVertices delete
foreach var [info globals g_*] {
uplevel #0 unset $var
}
}
proc ExitProg {} {
exit
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width $g_WinWidth -height $g_WinHeight \
-double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::g_listFont -height 3
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1
set appTitle "Tcl3D demo: CodeSampler's Polygon Offset"
wm title . $appTitle
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-F1> "SetOffsetFactor .fr.toglwin 0.005"
bind . <Key-F2> "SetOffsetFactor .fr.toglwin -0.005"
bind . <Key-F3> "SetOffsetUnit .fr.toglwin 0.05"
bind . <Key-F4> "SetOffsetUnit .fr.toglwin -0.05"
bind .fr.toglwin <1> "SetMouseInput 1 %x %y"
bind .fr.toglwin <B1-Motion> "GetMouseInput 1 %x %y"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-F1|F2 Increment|Decrement offset factor"
.fr.usage insert end "Key-F3|F4 Increment|Decrement offset unit"
.fr.usage configure -state disabled
PrintInfo [tcl3dOglGetInfoString]
|
