Demo 14 of 19 in category CodeSampler
 |
#-----------------------------------------------------------------------------
# Name: ogl_planar_shadow.cpp
# Author: Kevin Harris (kevin@codesampler.com)
# Last Modified: 02/01/05

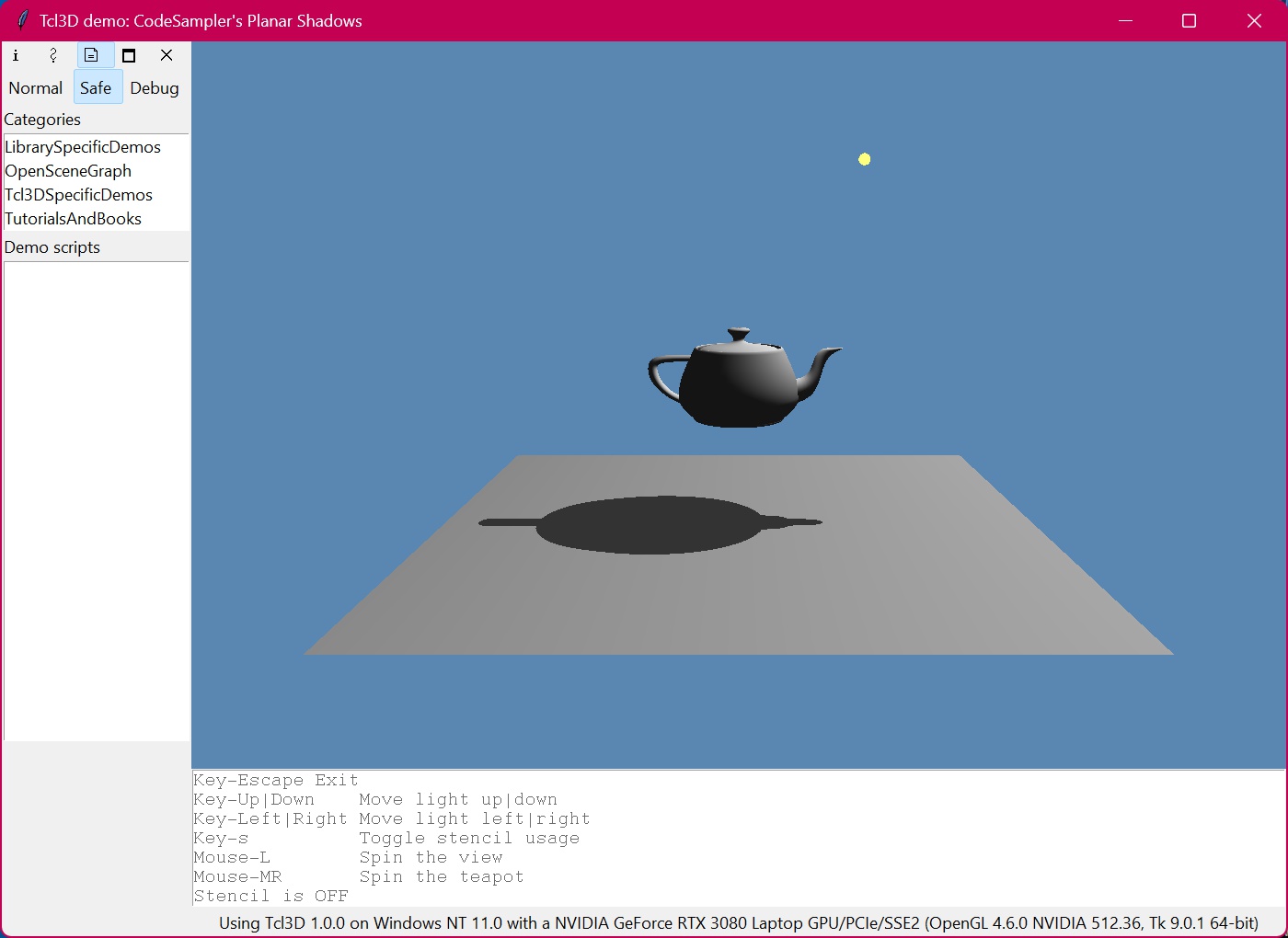

# Description: This sample demonstrates how to create planar shadows under
# OpenGL.
#
# Planar shadows are created by building a special projection
# matrix which flattens an object's geometry into a plane when
# rendered.
#
# If the plane, which the geometry is flattened into, matches
# up with another planar surface like a floor or a wall, the
# flattened geometry can be made to resemble a shadow on that
# surface.
#
# Control Keys: Up - Light moves up
# Down - Light moves down
# Left - Light moves left
# Right - Light moves right
#
# Left Mouse Button - Spin the view
# Right Mouse Button - Spin the teapot
#-----------------------------------------------------------------------------
#
# Original C++ code by Kevin Harris (kevin@codesampler.com)
# See www.codesampler.com for the original files
# OpenGL samples page 7: Planar Shadows
# http://www.codesampler.com/oglsrc/oglsrc_7.htm#ogl_planar_shadow
#
# Modified for Tcl3D by Paul Obermeier 2008/05/02
# See www.tcl3d.org for the Tcl3D extension.
package require Tk
package require tcl3d
# Font to be used in the Tk listbox.
set g_listFont {-family {Courier} -size 10}
set g_WinWidth 640
set g_WinHeight 480
set g_LastMousePosX(1) 0
set g_LastMousePosY(1) 0
set g_LastMousePosX(2) 0
set g_LastMousePosY(2) 0
# Spin control: Button 1: View, Button 2: Teapot
set g_fSpinX(1) 0.0
set g_fSpinY(1) -10.0
set g_fSpinX(2) 0.0
set g_fSpinY(2) 0.0
set g_shadowMatrix [tcl3dVector GLfloat 16]
# World position of light source
set g_lightPosition { 2.0 6.0 0.0 1.0 }
set g_bUseStencil false
set X 3
set Y 4
set Z 5
set SIZE 6
# NX NY NZ X Y Z
set g_floorQuad [tcl3dVectorFromArgs GLfloat \
0.0 1.0 0.0 -5.0 0.0 -5.0 \
0.0 1.0 0.0 -5.0 0.0 5.0 \
0.0 1.0 0.0 5.0 0.0 5.0 \
0.0 1.0 0.0 5.0 0.0 -5.0 \
]
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
# Update last line of usage messages.
proc UpdateMsg { msgStr } {
if { [winfo exists .fr.usage] } {
.fr.usage configure -state normal
.fr.usage delete end
.fr.usage insert end $msgStr
.fr.usage configure -state disabled
}
}
proc SetMouseInput { btn x y } {
set ::g_LastMousePosX($btn) $x
set ::g_LastMousePosY($btn) $y
}
proc GetMouseInput { btn x y } {
set nXDiff [expr ($x - $::g_LastMousePosX($btn))]
set nYDiff [expr ($y - $::g_LastMousePosY($btn))]
set ::g_fSpinX($btn) [expr $::g_fSpinX($btn) - $nXDiff]
set ::g_fSpinY($btn) [expr $::g_fSpinY($btn) - $nYDiff]
set ::g_LastMousePosX($btn) $x
set ::g_LastMousePosY($btn) $y
.fr.toglwin postredisplay
}
proc ToggleStencil {} {
set ::g_bUseStencil [expr ! $::g_bUseStencil]
if { $::g_bUseStencil } {
UpdateMsg "Stencil is ON"
} else {
UpdateMsg "Stencil is OFF"
}
.fr.toglwin postredisplay
}
proc ChangeLightPos { posInd off } {
lset ::g_lightPosition $posInd \
[expr {[lindex $::g_lightPosition $posInd] + $off}]
.fr.toglwin postredisplay
}
# float fMatrix[16], list fLightPos[4], float fPlane[4]
proc BuildShadowMatrix { fMatrix fLightPos fPlane } {
# Calculate the dot-product between the plane and the light's position
set dotp [expr [$fPlane get 0] * [lindex $fLightPos 0] + \
[$fPlane get 1] * [lindex $fLightPos 1] + \
[$fPlane get 1] * [lindex $fLightPos 2] + \
[$fPlane get 3] * [lindex $fLightPos 3]]
# First column
set mat(0) [expr {$dotp - [lindex $fLightPos 0] * [$fPlane get 0]}]
set mat(4) [expr {0.0 - [lindex $fLightPos 0] * [$fPlane get 1]}]
set mat(8) [expr {0.0 - [lindex $fLightPos 0] * [$fPlane get 2]}]
set mat(12) [expr {0.0 - [lindex $fLightPos 0] * [$fPlane get 3]}]
# Second column
set mat(1) [expr {0.0 - [lindex $fLightPos 1] * [$fPlane get 0]}]
set mat(5) [expr {$dotp - [lindex $fLightPos 1] * [$fPlane get 1]}]
set mat(9) [expr {0.0 - [lindex $fLightPos 1] * [$fPlane get 2]}]
set mat(13) [expr {0.0 - [lindex $fLightPos 1] * [$fPlane get 3]}]
# Third column
set mat(2) [expr {0.0 - [lindex $fLightPos 2] * [$fPlane get 0]}]
set mat(6) [expr {0.0 - [lindex $fLightPos 2] * [$fPlane get 1]}]
set mat(10) [expr {$dotp - [lindex $fLightPos 2] * [$fPlane get 2]}]
set mat(14) [expr {0.0 - [lindex $fLightPos 2] * [$fPlane get 3]}]
# Fourth column
set mat(3) [expr {0.0 - [lindex $fLightPos 3] * [$fPlane get 0]}]
set mat(7) [expr {0.0 - [lindex $fLightPos 3] * [$fPlane get 1]}]
set mat(11) [expr {0.0 - [lindex $fLightPos 3] * [$fPlane get 2]}]
set mat(15) [expr {$dotp - [lindex $fLightPos 3] * [$fPlane get 3]}]
for { set i 0 } { $i < 16 } { incr i } {
$fMatrix set $i $mat($i)
}
}
# Find the plane equation given 3 points
# GLfloat plane[4], GLfloat v0[3], GLfloat v1[3], GLfloat v2[3]
proc FindPlane { plane v0 v1 v2 } {
# Need 2 vectors to find cross product
set vec0(0) [expr {[$v1 get 0] - [$v0 get 0]}]
set vec0(1) [expr {[$v1 get 1] - [$v0 get 1]}]
set vec0(2) [expr {[$v1 get 2] - [$v0 get 2]}]
set vec1(0) [expr {[$v2 get 0] - [$v0 get 0]}]
set vec1(1) [expr {[$v2 get 1] - [$v0 get 1]}]
set vec1(2) [expr {[$v2 get 2] - [$v0 get 2]}]
# Find cross product to get A, B, and C of plane equation
$plane set 0 [expr { $vec0(1) * $vec1(2) - $vec0(2) * $vec1(1)}]
$plane set 1 [expr {-($vec0(0) * $vec1(2) - $vec0(2) * $vec1(0))}]
$plane set 2 [expr { $vec0(0) * $vec1(1) - $vec0(1) * $vec1(0)}]
$plane set 3 [expr {-([$plane get 0] * [$v0 get 0] + \
[$plane get 1] * [$v0 get 1] + \
[$plane get 2] * [$v0 get 2])}]
}
proc RenderFloor {} {
glColor3f 1.0 1.0 1.0
glInterleavedArrays GL_N3F_V3F 0 $::g_floorQuad
glDrawArrays GL_QUADS 0 4
}
proc CreateCallback { toglwin } {
glClearColor 0.35 0.53 0.7 1.0
glEnable GL_LIGHTING
glEnable GL_LIGHT0
glEnable GL_DEPTH_TEST
glMatrixMode GL_PROJECTION
glLoadIdentity
gluPerspective 45.0 [expr double($::g_WinWidth)/double($::g_WinHeight)] \
0.1 100.0
# Enable a single OpenGL light.
set lightAmbient {0.2 0.2 0.2 1.0}
set lightDiffuse {1.0 1.0 1.0 1.0}
set lightSpecular {1.0 1.0 1.0 1.0}
glLightfv GL_LIGHT0 GL_DIFFUSE $lightDiffuse
glLightfv GL_LIGHT0 GL_SPECULAR $lightSpecular
glLightfv GL_LIGHT0 GL_AMBIENT $lightAmbient
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
glMatrixMode GL_PROJECTION
glLoadIdentity
gluPerspective 45.0 [expr double($w)/double($h)] 0.1 100.0
}
proc DisplayCallback { toglwin } {
# Define the plane of the planar surface that we want to cast a shadow on...
set shadowPlane [tcl3dVector GLfloat 4]
set v0 [tcl3dVector GLfloat 3]
set v1 [tcl3dVector GLfloat 3]
set v2 [tcl3dVector GLfloat 3]
# To define a plane that matches the floor, we need to 3 vertices from it
$v0 set 0 [$::g_floorQuad get [expr {0 * $::SIZE + $::X}]]
$v0 set 1 [$::g_floorQuad get [expr {0 * $::SIZE + $::Y}]]
$v0 set 2 [$::g_floorQuad get [expr {0 * $::SIZE + $::Z}]]
$v1 set 0 [$::g_floorQuad get [expr {1 * $::SIZE + $::X}]]
$v1 set 1 [$::g_floorQuad get [expr {1 * $::SIZE + $::Y}]]
$v1 set 2 [$::g_floorQuad get [expr {1 * $::SIZE + $::Z}]]
$v2 set 0 [$::g_floorQuad get [expr {2 * $::SIZE + $::X}]]
$v2 set 1 [$::g_floorQuad get [expr {2 * $::SIZE + $::Y}]]
$v2 set 2 [$::g_floorQuad get [expr {2 * $::SIZE + $::Z}]]
FindPlane $shadowPlane $v0 $v1 $v2
# Build a shadow matrix using the light's current position and the plane
BuildShadowMatrix $::g_shadowMatrix $::g_lightPosition $shadowPlane
if { $::g_bUseStencil } {
glClear [expr $::GL_COLOR_BUFFER_BIT | \
$::GL_DEPTH_BUFFER_BIT | \
$::GL_STENCIL_BUFFER_BIT]
} else {
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
}
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
# Place the view
glMatrixMode GL_MODELVIEW
glLoadIdentity
glTranslatef 0.0 -2.0 -15.0
glRotatef [expr -1.0 * $::g_fSpinY(1)] 1.0 0.0 0.0
glRotatef [expr -1.0 * $::g_fSpinX(1)] 0.0 1.0 0.0
if { $::g_bUseStencil } {
# Render the floor to the stencil buffer so we can use it later to trim
# the shadow at the floor's edge...
glEnable GL_STENCIL_TEST
# Write a 1 to the stencil buffer everywhere we are about to draw
glStencilFunc GL_ALWAYS 1 0xFFFFFFFF
# If a 1 is written to the stencil buffer - simply replace the
# current value stored there with the 1.
glStencilOp GL_REPLACE GL_REPLACE GL_REPLACE
# Disable writing to the color buffer
glColorMask GL_FALSE GL_FALSE GL_FALSE GL_FALSE
# Disable writing to the depth buffer
glDepthMask GL_FALSE
RenderFloor
# Re-enable writing to the color buffer
glColorMask GL_TRUE GL_TRUE GL_TRUE GL_TRUE
# Re-enable writing to the depth buffer
glDepthMask GL_TRUE
glDisable GL_STENCIL_TEST
}
# Render the floor...
RenderFloor
# Create a shadow by rendering the teapot using the shadow matrix.
glDisable GL_DEPTH_TEST
glDisable GL_LIGHTING
if { $::g_bUseStencil } {
# Use our stencil to keep the shadow from running off the floor.
glEnable GL_STENCIL_TEST
# Only write to areas where the stencil buffer has a 1.
glStencilFunc GL_EQUAL 1 0xFFFFFFFF
# Don't modify the contents of the stencil buffer
glStencilOp GL_KEEP GL_KEEP GL_KEEP
glEnable GL_BLEND
}
glColor3f 0.2 0.2 0.2 ; # Shadow's color
glPushMatrix
set shadowMatAsList [tcl3dVectorToList $::g_shadowMatrix 16]
glMultMatrixf $shadowMatAsList
# Teapot's position & orientation (needs to use the same
# transformations used to render the actual teapot)
glTranslatef 0.0 2.5 0.0
glRotatef [expr -1.0 * $::g_fSpinY(2)] 1.0 0.0 0.0
glRotatef [expr -1.0 * $::g_fSpinX(2)] 0.0 1.0 0.0
glutSolidTeapot 1.0
glPopMatrix
glEnable GL_DEPTH_TEST
glEnable GL_LIGHTING
if { $::g_bUseStencil } {
glDisable GL_BLEND
glDisable GL_STENCIL_TEST
}
# Render the light's position as a sphere...
glDisable GL_LIGHTING
glPushMatrix
# Place the light...
glLightfv GL_LIGHT0 GL_POSITION $::g_lightPosition
# Place a sphere to represent the light
glTranslatef [lindex $::g_lightPosition 0] \
[lindex $::g_lightPosition 1] \
[lindex $::g_lightPosition 2]
glColor3f 1.0 1.0 0.5
glutSolidSphere 0.1 8 8
glPopMatrix
glEnable GL_LIGHTING
# Render normal teapot
glPushMatrix
# Teapot's position & orientation
glTranslatef 0.0 2.5 0.0
glRotatef [expr -1.0 * $::g_fSpinY(2)] 1.0 0.0 0.0
glRotatef [expr -1.0 * $::g_fSpinX(2)] 0.0 1.0 0.0
glutSolidTeapot 1.0
glPopMatrix
$shadowPlane delete
$v0 delete
$v1 delete
$v2 delete
$toglwin swapbuffers
}
proc Cleanup {} {
$::g_floorQuad delete
$::g_shadowMatrix delete
foreach var [info globals g_*] {
uplevel #0 unset $var
}
}
proc ExitProg {} {
exit
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width $g_WinWidth -height $g_WinHeight \
-stencil true \
-double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::g_listFont -height 7
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1
set appTitle "Tcl3D demo: CodeSampler's Planar Shadows"
wm title . $appTitle
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-Up> "ChangeLightPos 1 0.1"
bind . <Key-Down> "ChangeLightPos 1 -0.1"
bind . <Key-Left> "ChangeLightPos 0 -0.1"
bind . <Key-Right> "ChangeLightPos 0 0.1"
bind . <Key-s> "ToggleStencil"
bind .fr.toglwin <1> "SetMouseInput 1 %x %y"
bind .fr.toglwin <B1-Motion> "GetMouseInput 1 %x %y"
bind .fr.toglwin <2> "SetMouseInput 2 %x %y"
bind .fr.toglwin <B2-Motion> "GetMouseInput 2 %x %y"
bind .fr.toglwin <3> "SetMouseInput 2 %x %y"
bind .fr.toglwin <B3-Motion> "GetMouseInput 2 %x %y"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-Up|Down Move light up|down"
.fr.usage insert end "Key-Left|Right Move light left|right"
.fr.usage insert end "Key-s Toggle stencil usage"
.fr.usage insert end "Mouse-L Spin the view"
.fr.usage insert end "Mouse-MR Spin the teapot"
.fr.usage insert end "Stencil messages"
.fr.usage configure -state disabled
UpdateMsg "Stencil is OFF"
DisplayCallback .fr.toglwin
PrintInfo [tcl3dOglGetInfoString]
|
