# Name: ogl_color_tracking.cpp
# Author: Kevin Harris (kevin@codesampler.com)
# Last Modified: 04/28/05
# Description: This sample demonstrates color-tracking and two-sided
# lighting in OpenGL.
#
# Color tracking allows us to substitute the color of our
# vertices for one or more of the material colors used by
# OpenGL's lighting equation. This feature is typically not
# used much anymore as since modelers today use textures to
# color their geometry - not vertex colors. Of course, this
# technique is alive and kicking in a billion lines of legacy
# code so it's good to understand this technique just in case
# you run across it.
#
# Two-sided lighting basically means that we want OpenGL to
# light both sides of our geometry instead of just the front
# faces. Again, this feature is typically not used much
# anymore since it's very inefficient to light both sides of
# every triangle but there are some cases where this is
# helpful to know.
#
# Control Keys: c - Toggle between a material color or color tracking the
# vertices
# l - Toggle two-sided lighting
#-----------------------------------------------------------------------------
#
# Original C++ code by Kevin Harris (kevin@codesampler.com)
# See www.codesampler.com for the original files
# OpenGL samples page 5: Color Tracking and Two-Sided lighting
# http://www.codesampler.com/oglsrc/oglsrc_5.htm#ogl_color_tracking
#
# Modified for Tcl3D by Paul Obermeier 2008/05/01
# See www.tcl3d.org for the Tcl3D extension.
package require Tk
package require Img
package require tcl3d
# Font to be used in the Tk listbox.
set g_listFont {-family {Courier} -size 10}
set g_WinWidth 640
set g_WinHeight 480
set g_bColorTracking false
set g_bTwoSidedLighting true
set g_fSpinX(1) 0.0
set g_fSpinY(1) 0.0
# For testing purposes create a simple quad whose vertices are colored
# pure green.
# Use GL_T2F_C4F_N3F_V3F for glInterleavedArrays
# tu tv r g b a nx ny nz x y z
set g_quadVertices [tcl3dVectorFromArgs GLfloat \
0.0 0.0 0.0 1.0 0.0 1.0 0.0 0.0 1.0 -1.0 -1.0 0.0 \
1.0 0.0 0.0 1.0 0.0 1.0 0.0 0.0 1.0 1.0 -1.0 0.0 \
1.0 1.0 0.0 1.0 0.0 1.0 0.0 0.0 1.0 1.0 1.0 0.0 \
0.0 1.0 0.0 1.0 0.0 1.0 0.0 0.0 1.0 -1.0 1.0 0.0 \
]
# Determine the directory of this script.
set g_scriptDir [file dirname [info script]]
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc SetMouseInput { btn x y } {
set ::g_LastMousePosX($btn) $x
set ::g_LastMousePosY($btn) $y
}
proc GetMouseInput { btn x y } {
set nXDiff [expr ($x - $::g_LastMousePosX($btn))]
set nYDiff [expr ($y - $::g_LastMousePosY($btn))]
set ::g_fSpinX($btn) [expr $::g_fSpinX($btn) - $nXDiff]
set ::g_fSpinY($btn) [expr $::g_fSpinY($btn) - $nYDiff]
set ::g_LastMousePosX($btn) $x
set ::g_LastMousePosY($btn) $y
.fr.toglwin postredisplay
}
proc ToggleColorTracking {} {
set ::g_bColorTracking [expr ! $::g_bColorTracking]
.fr.toglwin postredisplay
}
proc ToggleTwoSidedLighting {} {
set ::g_bTwoSidedLighting [expr ! $::g_bTwoSidedLighting]
.fr.toglwin postredisplay
}
proc LoadTexture {} {
set texName [file join $::g_scriptDir "test.bmp"]
set retVal [catch {set phImg [image create photo -file $texName]} err1]
if { $retVal != 0 } {
error "Error reading image $texName ($err1)"
} else {
set w [image width $phImg]
set h [image height $phImg]
set n [tcl3dPhotoChans $phImg]
set pTextureImage [tcl3dVectorFromPhoto $phImg]
image delete $phImg
}
set ::g_textureID [tcl3dVector GLuint 1]
glGenTextures 1 $::g_textureID
glBindTexture GL_TEXTURE_2D [$::g_textureID get 0]
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_LINEAR
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_LINEAR
if { $n == 3 } {
set type $::GL_RGB
} else {
set type $::GL_RGBA
}
glTexImage2D GL_TEXTURE_2D 0 $n $w $h 0 $type GL_UNSIGNED_BYTE $pTextureImage
$pTextureImage delete
}
proc CreateCallback { toglwin } {
glEnable GL_LIGHTING
glEnable GL_TEXTURE_2D
glEnable GL_DEPTH_TEST
LoadTexture
glClearColor 0.0 0.0 0.0 1.0
glMatrixMode GL_PROJECTION
glLoadIdentity
gluPerspective 45.0 [expr double($::g_WinWidth)/double($::g_WinHeight)] \
0.1 100.0
# Set up some lighting...
glEnable GL_LIGHTING
glEnable GL_LIGHT0
# Set light 0 to be a pure white directional light
set diffuse_light0 { 1.0 1.0 1.0 1.0 }
set specular_light0 { 1.0 1.0 1.0 1.0 }
set position_light0 { 0.0 0.0 1.0 0.0 }
glLightfv GL_LIGHT0 GL_DIFFUSE $diffuse_light0
glLightfv GL_LIGHT0 GL_SPECULAR $specular_light0
glLightfv GL_LIGHT0 GL_POSITION $position_light0
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
glMatrixMode GL_PROJECTION
glLoadIdentity
gluPerspective 45.0 [expr double($w)/double($h)] 0.1 100.0
}
proc DisplayCallback { toglwin } {
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Viewport command is not really needed, but has been inserted for
# Mac OSX. Presentation framework (Tk) does not send a reshape event,
# when switching from one demo to another.
glViewport 0 0 [$toglwin width] [$toglwin height]
glMatrixMode GL_MODELVIEW
glLoadIdentity
glTranslatef 0.0 0.0 -4.0
glRotatef [expr {-1.0 * $::g_fSpinY(1)}] 1.0 0.0 0.0
glRotatef [expr {-1.0 * $::g_fSpinX(1)}] 0.0 1.0 0.0
# Enable or disable color tracking...
if { $::g_bColorTracking } {
# Instead of having a material provide the ambient and diffuse colors
# for the lighting equation, we'll use color-tracking to use the
# vertex color. Our test quad has green vertices so if we set color
# tracking while rendering it, the quad will be considered green for
# lighting.
glEnable GL_COLOR_MATERIAL
# Now, tell OpenGL which material properties will be set to the vertex
# color.
#
# Note: If you don't use a vertex array to store your geometry data,
# a call to glColor will do the same thing.
glColorMaterial GL_FRONT_AND_BACK GL_AMBIENT
glColorMaterial GL_FRONT_AND_BACK GL_DIFFUSE
} else {
# Stop using the quad's vertex colors in the lighting equation and use
# the colors assigned via a material instead.
glDisable GL_COLOR_MATERIAL
# Set up a red material for the front side of the quad
set ambient_mtrl_front { 1.0 0.0 0.0 1.0 }
set diffuse_mtrl_front { 1.0 0.0 0.0 1.0 }
glMaterialfv GL_FRONT GL_AMBIENT $ambient_mtrl_front
glMaterialfv GL_FRONT GL_DIFFUSE $diffuse_mtrl_front
# Set up a blue material for the backside of the quad
set ambient_mtrl_back { 0.0 0.0 1.0 1.0 }
set diffuse_mtrl_back { 0.0 0.0 1.0 1.0 }
glMaterialfv GL_BACK GL_AMBIENT $ambient_mtrl_back
glMaterialfv GL_BACK GL_DIFFUSE $diffuse_mtrl_back
}
# Enable or disable two-sided lighting...
if { $::g_bTwoSidedLighting } {
glLightModeli GL_LIGHT_MODEL_TWO_SIDE $::GL_TRUE
} else {
glLightModeli GL_LIGHT_MODEL_TWO_SIDE $::GL_FALSE
}
glBindTexture GL_TEXTURE_2D [$::g_textureID get 0]
glInterleavedArrays GL_T2F_C4F_N3F_V3F 0 $::g_quadVertices
glDrawArrays GL_QUADS 0 4
$toglwin swapbuffers
}
proc Cleanup {} {
if { [info exists ::g_textureID] } {
glDeleteTextures 1 [$::g_textureID get 0]
$::g_textureID delete
}
$::g_quadVertices delete
foreach var [info globals g_*] {
uplevel #0 unset $var
}
}
proc ExitProg {} {
exit
}
frame .fr
pack .fr -expand 1 -fill both
togl .fr.toglwin -width $g_WinWidth -height $g_WinHeight \
-double true -depth true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::g_listFont -height 4
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

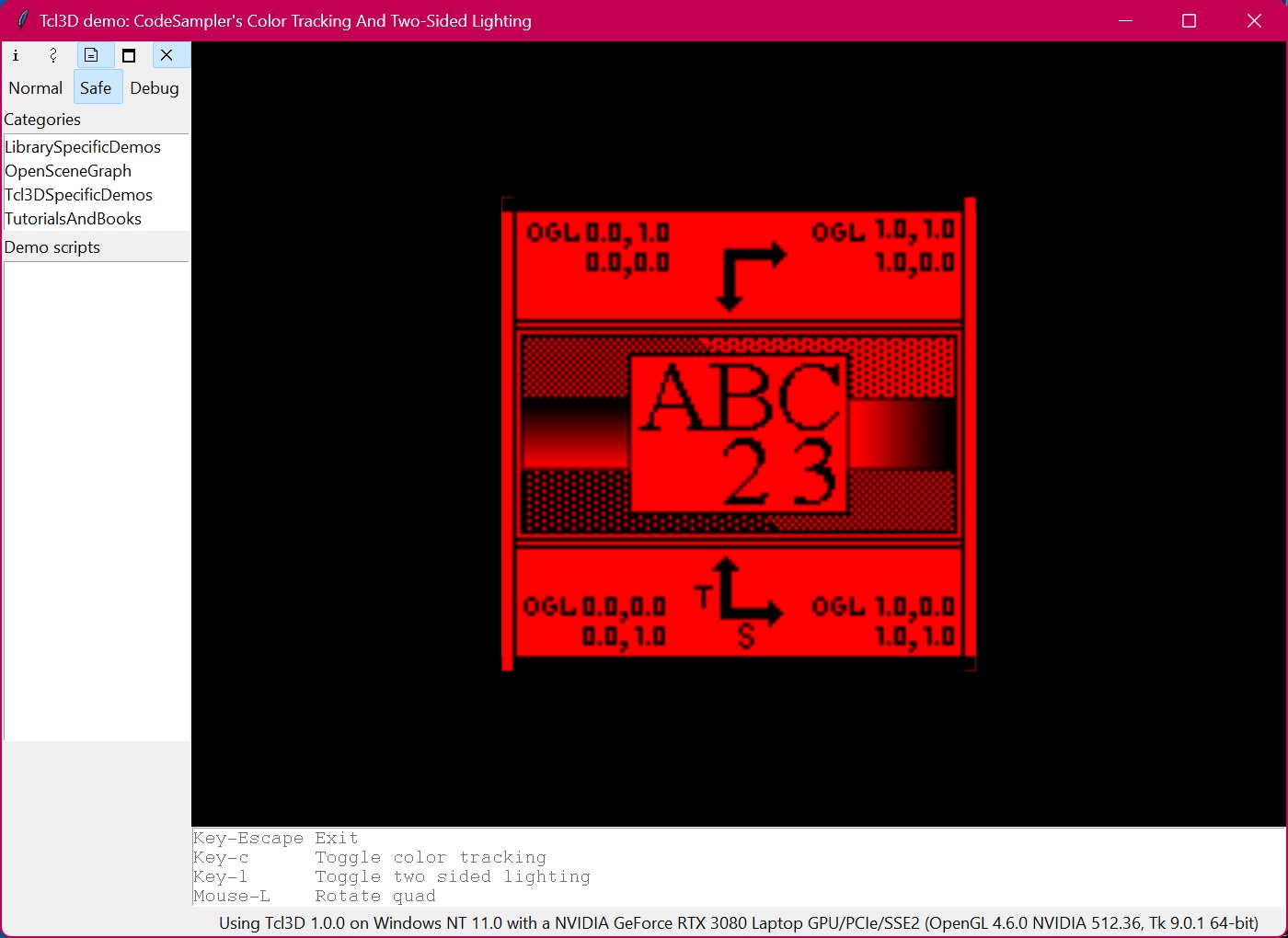

set appTitle "Tcl3D demo: CodeSampler's Color Tracking And Two-Sided Lighting"
wm title . $appTitle
# Watch For ESC Key And Quit Messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-c> "ToggleColorTracking"
bind . <Key-l> "ToggleTwoSidedLighting"
bind .fr.toglwin <1> "SetMouseInput 1 %x %y"
bind .fr.toglwin <B1-Motion> "GetMouseInput 1 %x %y"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-c Toggle color tracking"
.fr.usage insert end "Key-l Toggle two sided lighting"
.fr.usage insert end "Mouse-L Rotate quad"
.fr.usage configure -state disabled
PrintInfo [tcl3dOglGetInfoString]
|
