# NPS04_TestState.tcl
#
# Original C++ code by Joseph Sullivan.
# See http://www.openscenegraph.org/projects/osg/wiki/Support/Tutorials
# for the original files.
#
# Modified for Tcl3D by Paul Obermeier 2009/03/20.
# See www.tcl3d.org for the Tcl3D extension.
package require tcl3d
if { ! [tcl3dHaveOsg] } {
tk_messageBox -icon error -type ok -title "Missing Tcl3D module" \
-message "Demo needs the tcl3dOSG module."
proc Cleanup {} {}
exit 1
return
}
# Font to be used in the Tk listbox.
set gDemo(listFont) {-family {Courier} -size 10}
# Window size.
set gDemo(winWidth) 640
set gDemo(winHeight) 480
# Determine the directory and filename of this script.
set gDemo(scriptFile) [info script]
set gDemo(scriptDir) [file dirname $gDemo(scriptFile)]
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
puts "Error: $msg\n\n$::errorInfo"
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
ExitProg
}
# Print info message into widget a the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
# Idle callback to redisplay the scene.
proc Animate {} {
.fr.toglwin postredisplay
set ::animateId [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
if { ! [info exists ::animateId] } {
Animate
}
}
proc StopAnimation {} {
if { [info exists ::animateId] } {
after cancel $::animateId
unset ::animateId
}
}
proc CreateCallback { toglwin } {
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
# Propagate resize event to embedded OSG window.
tcl3dOsgWindowResize $toglwin [tcl3dOsgGetOsgWin] $w $h
}
proc DisplayCallback { toglwin } {
if { [viewer valid] } {
viewer frame
}
$toglwin swapbuffers
}
proc Cleanup {} {
uplevel #0 unset gDemo
viewer -delete
}
proc ExitProg {} {
exit
}
proc SaveOsgToFile {} {
global gDemo
set osgRoot [viewer getSceneData]
set outFile [format "%s.osgt" [file rootname $gDemo(scriptFile)]]
# Create a name on the file system, if running from within a Starpack.
set outFile [tcl3dGenExtName $outFile]
puts "Saving scenegraph to file $outFile"
if { ! [osgDB::writeNodeFile $osgRoot $outFile] } {
puts "Failed to write scenegraph to file $outFile"
}
}
proc CreateWidgets { osgwin } {
global gDemo
frame .fr
pack .fr -expand 1 -fill both
set toglwin .fr.toglwin
togl $toglwin -width $gDemo(winWidth) -height $gDemo(winHeight) \
-double true -depth true -alpha true \
-createcommand CreateCallback \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $::gDemo(listFont) -height 3
label .fr.info
grid $toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1

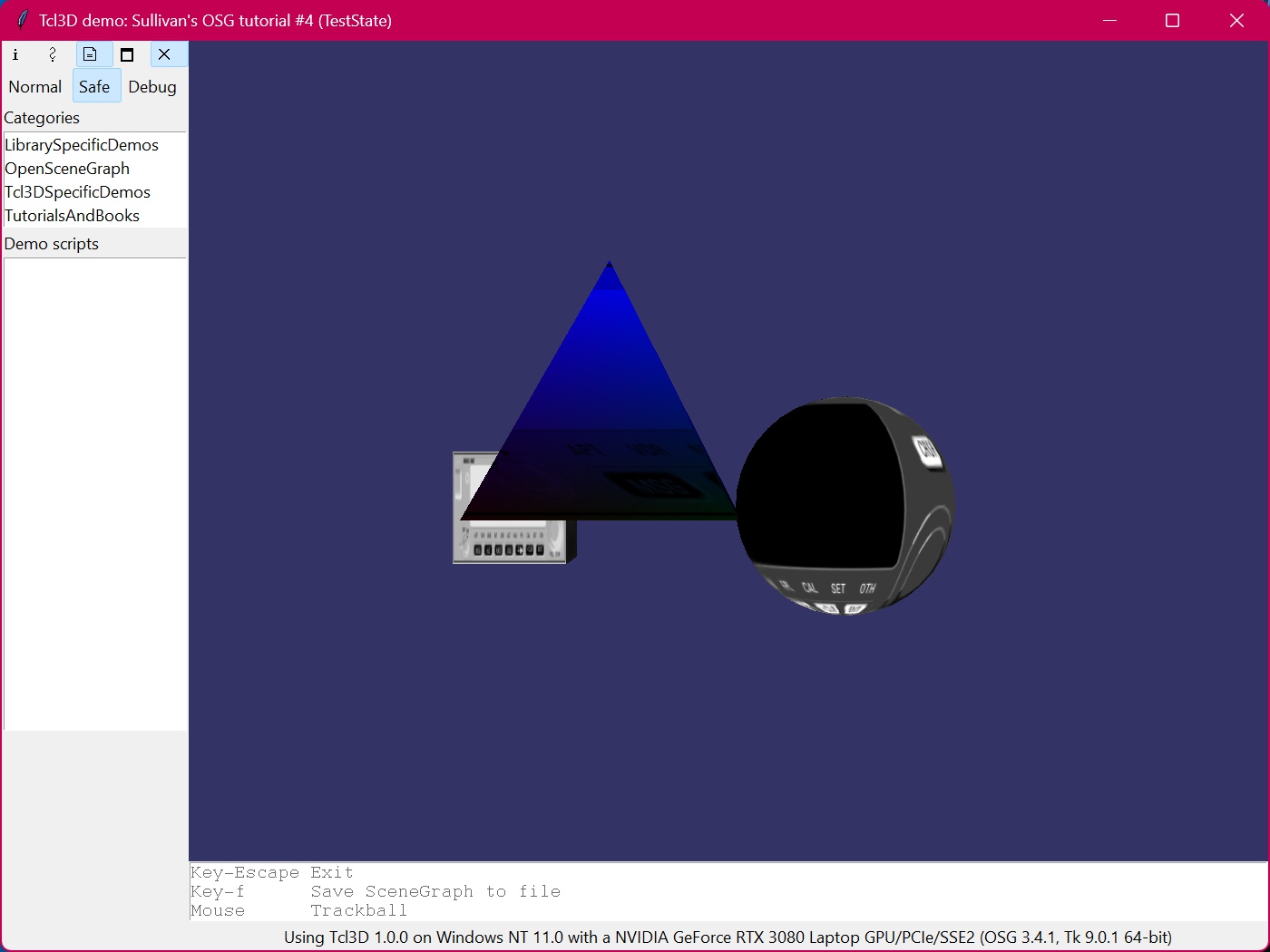

wm title . "Tcl3D demo: Sullivan's OSG tutorial #4 (TestState)"
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-Escape> "ExitProg"
bind . <Key-f> "SaveOsgToFile"
# Propagate key and mouse events to embedded OSG window.
bind . <KeyPress> "tcl3dOsgKeyPress $toglwin $osgwin %N"
tcl3dOsgAddTrackballBindings $toglwin $osgwin
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-f Save SceneGraph to file"
.fr.usage insert end "Mouse Trackball"
.fr.usage configure -state disabled
}
#
# Start of tutorial specific code.
#
proc createPyramid {} {
osg::Geode pyramidGeode
osg::Geometry pyramidGeometry
pyramidGeode addDrawable pyramidGeometry
# Specify the vertices
osg::Vec3Array pyramidVertices
pyramidVertices push [osg::Vec3 p1 0 0 0] ; # front left
pyramidVertices push [osg::Vec3 p2 2 0 0] ; # front right
pyramidVertices push [osg::Vec3 p3 2 2 0] ; # back right
pyramidVertices push [osg::Vec3 p4 0 2 0] ; # back left
pyramidVertices push [osg::Vec3 p5 1 1 2] ; # peak
# Associate this set of vertices with the geometry associated with the
# geode we added to the scene.
pyramidGeometry setVertexArray pyramidVertices
osg::DrawElementsUInt pyramidBase $::osg::PrimitiveSet_QUADS 0
pyramidBase push 3
pyramidBase push 2
pyramidBase push 1
pyramidBase push 0
pyramidGeometry addPrimitiveSet pyramidBase
# Repeat the same for each of the four sides. Again, vertices are
# specified in counter-clockwise order.
osg::DrawElementsUInt pyramidFaceOne $::osg::PrimitiveSet_TRIANGLES 0
pyramidFaceOne push 0
pyramidFaceOne push 1
pyramidFaceOne push 4
pyramidGeometry addPrimitiveSet pyramidFaceOne
osg::DrawElementsUInt pyramidFaceTwo $::osg::PrimitiveSet_TRIANGLES 0
pyramidFaceTwo push 1
pyramidFaceTwo push 2
pyramidFaceTwo push 4
pyramidGeometry addPrimitiveSet pyramidFaceTwo
osg::DrawElementsUInt pyramidFaceThree $::osg::PrimitiveSet_TRIANGLES 0
pyramidFaceThree push 2
pyramidFaceThree push 3
pyramidFaceThree push 4
pyramidGeometry addPrimitiveSet pyramidFaceThree
osg::DrawElementsUInt pyramidFaceFour $::osg::PrimitiveSet_TRIANGLES 0
pyramidFaceFour push 3
pyramidFaceFour push 0
pyramidFaceFour push 4
pyramidGeometry addPrimitiveSet pyramidFaceFour
osg::Vec4Array colors
colors push [osg::Vec4f col1 1.0 0.0 0.0 1.0] ; # index 0 red
colors push [osg::Vec4f col2 0.0 1.0 0.0 1.0] ; # index 1 green
colors push [osg::Vec4f col3 0.0 0.0 1.0 1.0] ; # index 2 blue
colors push [osg::Vec4f col4 1.0 1.0 1.0 1.0] ; # index 3 white
colors setBinding $::osg::Geometry_BIND_PER_VERTEX
pyramidGeometry setColorArray colors
osg::Vec2Array texcoords 5
texcoords set 0 [osg::Vec2 v1 0.00 0.0] ; # tex coord for vertex 0
texcoords set 1 [osg::Vec2 v2 0.25 0.0] ; # tex coord for vertex 1
texcoords set 2 [osg::Vec2 v3 0.50 0.0] ; # ""
texcoords set 3 [osg::Vec2 v4 0.75 0.0] ; # ""
texcoords set 4 [osg::Vec2 v5 0.50 1.0] ; # ""
pyramidGeometry setTexCoordArray 0 texcoords
return pyramidGeode
}
# We have the geometry ready. Now create the viewer and the Tk widgets.
osgViewer::ViewerRef viewer [osgViewer::Viewer]
# Declare a group to act as root node of a scene.
osg::Group root
# Declare a box class (derived from shape class) instance
# This constructor takes an osg::Vec3 to define the center
# and a float to define the height, width and depth.
# (an overloaded constructor allows you to specify unique
# height, width and height values.)
osg::Box unitCube [osg::Vec3 v1 0 0 0] 1.0
unitCube setDataVariance $::osg::Object_DYNAMIC
# Declare an instance of the shape drawable class and initialize
# it with the unitCube shape we created above.
# This class is derived from 'drawable' so instances of this
# class can be added to Geode instances.
osg::ShapeDrawable unitCubeDrawable unitCube
# Declare a instance of the geode class:
osg::Geode basicShapesGeode
# Add the unit cube drawable to the geode:
basicShapesGeode addDrawable unitCubeDrawable
# Add the goede to the scene:
root addChild basicShapesGeode
osg::Sphere unitSphere [osg::Vec3 v2 0 0 0] 1.0
osg::ShapeDrawable unitSphereDrawable unitSphere
unitSphereDrawable setColor [osg::Vec4 v3 0.1 0.1 0.1 0.1]
osg::PositionAttitudeTransform unitSphereXForm
unitSphereXForm setPosition [osg::Vec3d v4 3.0 0 0]
osg::Geode unitSphereGeode
root addChild unitSphereXForm
unitSphereXForm addChild unitSphereGeode
unitSphereGeode addDrawable unitSphereDrawable
set pyramidGeode [createPyramid]
osg::PositionAttitudeTransform pyramidXForm
pyramidXForm setPosition [osg::Vec3d v5 0 -3.0 0]
root addChild pyramidXForm
pyramidXForm addChild pyramidGeode
osg::Texture2D KLN89FaceTexture
# protect from being optimized away as static state:
KLN89FaceTexture setDataVariance $::osg::Object_DYNAMIC
set imgFile [file join $::gDemo(scriptDir) "Data/Textures/KLN89FaceB.tga"]
set klnFace [osgDB::readImageFile $imgFile]
if { $klnFace eq "NULL" } {
puts " couldn't find texture, quitting."
exit -1
}
KLN89FaceTexture setImage $klnFace
# Declare a state set for 'BLEND' texture mode
osg::StateSet blendStateSet
# Declare a TexEnv instance, set the mode to 'BLEND'
osg::TexEnv blendTexEnv
blendTexEnv setMode $::osg::TexEnv_BLEND
# Turn the attribute of texture 0 'ON'
blendStateSet setTextureAttributeAndModes 0 KLN89FaceTexture $::osg::StateAttribute_ON
# Set the texture texture environment for texture 0 to the
# texture envirnoment we declared above:
blendStateSet setTextureAttribute 0 blendTexEnv
osg::StateSet decalStateSet
osg::TexEnv decalTexEnv
decalTexEnv setMode $::osg::TexEnv_DECAL
decalStateSet setTextureAttributeAndModes 0 KLN89FaceTexture $::osg::StateAttribute_ON
decalStateSet setTextureAttribute 0 decalTexEnv
root setStateSet blendStateSet
unitSphereGeode setStateSet decalStateSet
viewer setSceneData root
viewer setCameraManipulator [osgGA::TrackballManipulator]
if { $argc >= 1 && [lindex $argv 0] eq "-viewer" } {
# Only use the standard OSG viewer window without any Tk widgets.
viewer setUpViewInWindow 50 50 500 400
viewer run
exit 0
}
# Use the OSG viewer inside a Togl widget.
set osgwin [viewer setUpViewerAsEmbeddedInWindow 50 50 500 400]
tcl3dOsgSetOsgWin $osgwin
viewer realize
CreateWidgets $osgwin
PrintInfo [tcl3dOsgGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
