# Simple compute shader example.
#
# An OpenGL 4.3 context, a texture for the compute shader to write
# and the fragment shader to read, and two program objects are created.
# One object is for the compute shader and the other is for rendering
# (vertex + fragment shaders).
# After that we go into a loop where we update a counter in the compute shader,
# fill in the texture (as image2D), and blit the texture onto the screen.
#
# Author: Ville Timonen (http://wili.cc/blog/opengl-cs.html) 2012
#
# Modified and extended for Tcl3D by Paul Obermeier 2018/07/30
# See www.tcl3d.org for the Tcl3D extension.
package require Tk
package require tcl3d
# Font to be used in the Tk listbox.
set g_Demo(listFont) {-family {Courier} -size 10}
# Window size.
set g_Demo(winWidth) 512
set g_Demo(winHeight) 512

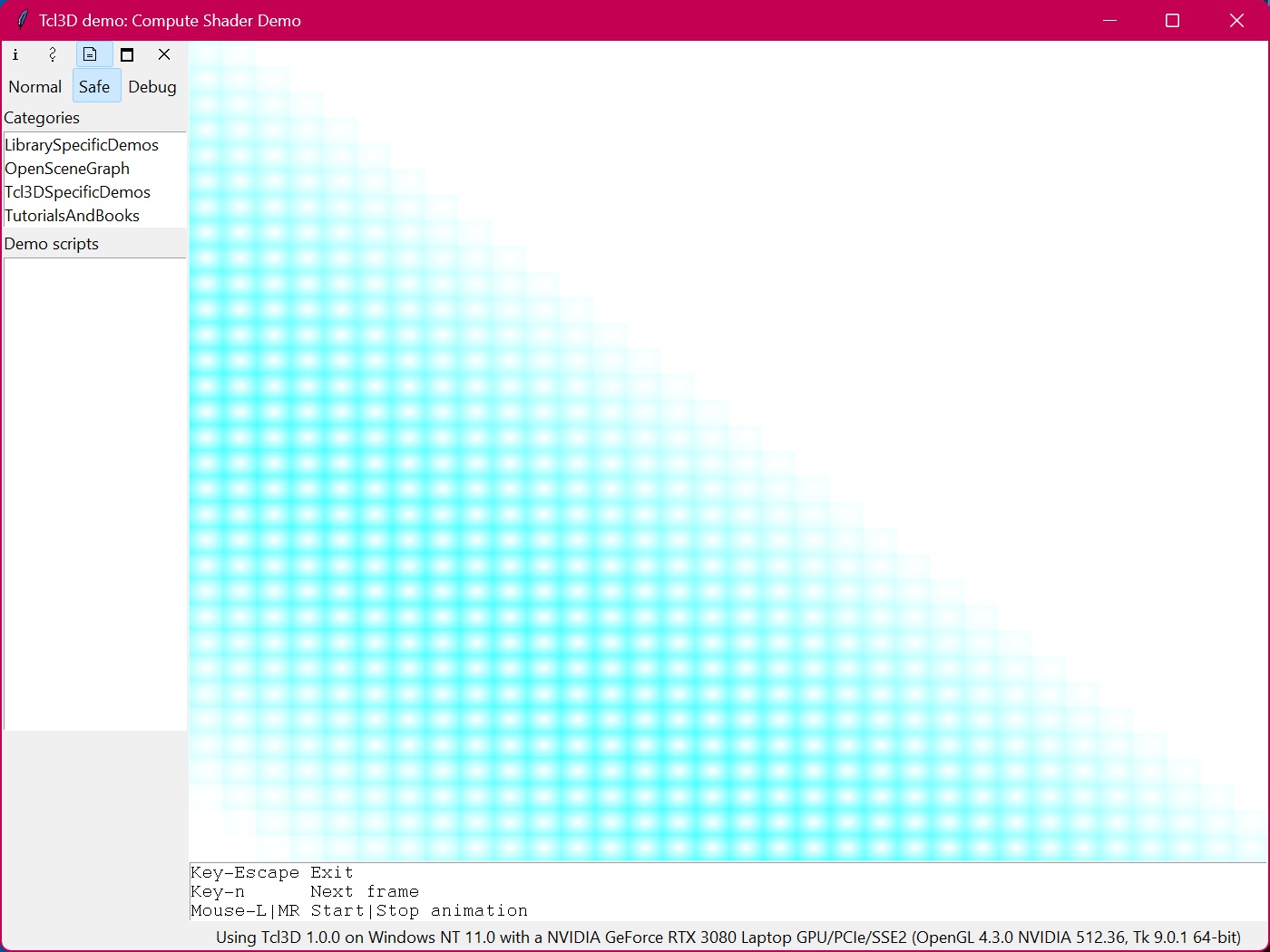

set g_Demo(appName) "Tcl3D demo: Compute Shader Demo"
# Show errors occuring in the Togl callbacks.
proc bgerror { msg } {
tk_messageBox -icon error -type ok -message "Error: $msg\n\n$::errorInfo"
exit
}
# Print info message into widget at the bottom of the window.
proc PrintInfo { msg } {
if { [winfo exists .fr.info] } {
.fr.info configure -text $msg
}
}
proc NextFrame {} {
.fr.toglwin postredisplay
}
proc Animate {} {
global g_Demo
.fr.toglwin postredisplay
set g_Demo(animateId) [tcl3dAfterIdle Animate]
}
proc StartAnimation {} {
global g_Demo
if { ! [info exists g_Demo(animateId)] } {
Animate
}
}
proc StopAnimation {} {
global g_Demo
if { [info exists g_Demo(animateId)] } {
after cancel $g_Demo(animateId)
unset g_Demo(animateId)
}
}
proc CheckGLErrors { msg } {
set errMsg [tcl3dOglGetError]
if { $errMsg eq "" } {
return
}
puts "$msg: $errMsg"
}
proc GenTexture {} {
# We create a single float channel 512^2 texture
set texHandle [tcl3dVector GLuint 1]
glGenTextures 1 $texHandle
glActiveTexture GL_TEXTURE0
glBindTexture GL_TEXTURE_2D [$texHandle get 0]
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MIN_FILTER $::GL_LINEAR
glTexParameteri GL_TEXTURE_2D GL_TEXTURE_MAG_FILTER $::GL_LINEAR
glTexImage2D GL_TEXTURE_2D 0 $::GL_R32F 512 512 0 GL_RED GL_FLOAT "NULL"
# Because we're also using this tex as an image (in order to write to it),
# we bind it to an image unit as well
glBindImageTexture 0 [$texHandle get 0] 0 GL_FALSE 0 GL_WRITE_ONLY $::GL_R32F
CheckGLErrors "Gen texture"
}
proc GenRenderProg {} {
set progHandle [glCreateProgram]
set vp [glCreateShader GL_VERTEX_SHADER]
set fp [glCreateShader GL_FRAGMENT_SHADER]
set vpSrc "
#version 430
in vec2 pos;
out vec2 texCoord;
void main() {
texCoord = pos*0.5f + 0.5f;
gl_Position = vec4(pos.x, pos.y, 0.0, 1.0);
}
"
set fpSrc "
#version 430
uniform sampler2D srcTex;
in vec2 texCoord;
out vec4 color;
void main() {
float c = texture(srcTex, texCoord).x;
color = vec4(c, 1.0, 1.0, 1.0);
}
"
tcl3dOglShaderSource $vp $vpSrc
tcl3dOglShaderSource $fp $fpSrc
glCompileShader $vp
set rvalue [tcl3dOglGetShaderState $vp GL_COMPILE_STATUS]
if { ! $rvalue } {
puts stderr "Error in compiling vp"
exit 30
}
glAttachShader $progHandle $vp
glCompileShader $fp
set rvalue [tcl3dOglGetShaderState $fp GL_COMPILE_STATUS]
if { ! $rvalue } {
puts stderr "Error in compiling fp"
exit 31
}
glAttachShader $progHandle $fp
glBindFragDataLocation $progHandle 0 "color"
glLinkProgram $progHandle
set rvalue [tcl3dOglGetProgramState $progHandle GL_LINK_STATUS]
if { ! $rvalue } {
puts stderr "Error in linking sp"
exit 32
}
glUseProgram $progHandle
glUniform1i [glGetUniformLocation $progHandle "srcTex"] 0
set vertArray [tcl3dVector GLuint 1]
glGenVertexArrays 1 $vertArray
glBindVertexArray [$vertArray get 0]
set posBuf [tcl3dVector GLuint 1]
glGenBuffers 1 $posBuf
glBindBuffer GL_ARRAY_BUFFER [$posBuf get 0]
set dataList [list \
-1.0 -1.0 \
-1.0 1.0 \
1.0 -1.0 \
1.0 1.0 \
]
set dataVec [tcl3dVectorFromList GLfloat $dataList]
set dataVecSize [expr [llength $dataList] * [$dataVec elemsize]]
glBufferData GL_ARRAY_BUFFER $dataVecSize $dataVec GL_STREAM_DRAW
set posPtr [glGetAttribLocation $progHandle "pos"]
glVertexAttribPointer $posPtr 2 GL_FLOAT GL_FALSE 0 "NULL"
glEnableVertexAttribArray $posPtr
CheckGLErrors "Render shaders"
return $progHandle
}
proc GenComputeProg {} {
# Creating the compute shader, and the program object containing the shader
set progHandle [glCreateProgram]
set cs [glCreateShader GL_COMPUTE_SHADER]
# In order to write to a texture, we have to introduce it as image2D.
# local_size_x/y/z layout variables define the work group size.
# gl_GlobalInvocationID is a uvec3 variable giving the global ID of the thread,
# gl_LocalInvocationID is the local index within the work group, and
# gl_WorkGroupID is the work group's index
set csSrc "
#version 430
uniform float roll;
layout (binding=0, r32f) uniform image2D destTex;
layout (local_size_x = 16, local_size_y = 16) in;
void main() {
ivec2 storePos = ivec2(gl_GlobalInvocationID.xy);
float localCoef = length(vec2(ivec2(gl_LocalInvocationID.xy)-8)/8.0);
float globalCoef = sin(float(gl_WorkGroupID.x+gl_WorkGroupID.y)*0.1 + roll)*0.5;
imageStore(destTex, storePos, vec4(1.0-globalCoef*localCoef, 0.0, 0.0, 0.0));
}
"
tcl3dOglShaderSource $cs $csSrc
glCompileShader $cs
set rvalue [tcl3dOglGetShaderState $cs GL_COMPILE_STATUS]
if { ! $rvalue } {
puts stderr "Error in compiling cs"
puts "Compiler log: [tcl3dOglGetShaderInfoLog $cs]"
exit 40
}
glAttachShader $progHandle $cs
glLinkProgram $progHandle
set rvalue [tcl3dOglGetProgramState $progHandle GL_LINK_STATUS]
if { ! $rvalue } {
puts stderr "Error in linking cs"
puts "Compiler log: [tcl3dOglGetShaderInfoLog $cs]"
exit 42
}
glUseProgram $progHandle
glUniform1i [glGetUniformLocation $progHandle "destTex"] 0
CheckGLErrors "Compute shader"
return $progHandle
}
proc Init {} {
global g_Demo
GenTexture
set g_Demo(renderHandle) [GenRenderProg]
set g_Demo(computeHandle) [GenComputeProg]
set g_Demo(curFrame) 0
}
proc CreateCallback { toglwin } {
global g_Demo
}
proc ReshapeCallback { toglwin { w -1 } { h -1 } } {
set w [$toglwin width]
set h [$toglwin height]
glViewport 0 0 $w $h
}
proc DisplayCallback { toglwin } {
global g_Demo
glClear [expr $::GL_COLOR_BUFFER_BIT | $::GL_DEPTH_BUFFER_BIT]
# Update texture
glUseProgram $g_Demo(computeHandle)
glUniform1f [glGetUniformLocation $g_Demo(computeHandle) "roll"] [expr $g_Demo(curFrame)*0.01]
# 512^2 threads in blocks of 16^2
glDispatchCompute [expr 512/16] [expr 512/16] 1
CheckGLErrors "Dispatch compute shader"
# Draw screen
glUseProgram $g_Demo(renderHandle)
glDrawArrays GL_TRIANGLE_STRIP 0 4
CheckGLErrors "Draw screen"
$toglwin swapbuffer
incr g_Demo(curFrame)
}
proc Cleanup {} {
global g_Demo
if { [info exists g_Program] } {
tcl3dOglDestroyProgram $g_Program
}
foreach var [info globals g_*] {
uplevel #0 unset $var
}
}
# Put all exit related code here.
proc ExitProg {} {
exit
}
# Create the OpenGL window and some Tk helper widgets.
proc CreateWindow {} {
global g_Demo
frame .fr
pack .fr -expand 1 -fill both
set retVal [catch { togl .fr.toglwin \
-width $g_Demo(winWidth) -height $g_Demo(winHeight) \
-double true -depth true \
-createcommand CreateCallback \
-coreprofile true -major 4 -minor 3 } errMsg]
if { $retVal != 0 } {
tk_messageBox -icon error -type ok -title "Missing Togl feature" \
-message "Demo needs core profile: $errMsg"
proc ::Cleanup {} {}
exit 1
return
}
Init
.fr.toglwin configure \
-reshapecommand ReshapeCallback \
-displaycommand DisplayCallback
listbox .fr.usage -font $g_Demo(listFont) -height 3
label .fr.status
label .fr.info
grid .fr.toglwin -row 0 -column 0 -sticky news
grid .fr.usage -row 1 -column 0 -sticky news
grid .fr.info -row 2 -column 0 -sticky news
grid rowconfigure .fr 0 -weight 1
grid columnconfigure .fr 0 -weight 1
wm title . $g_Demo(appName)
# Watch for Esc key and Quit messages
wm protocol . WM_DELETE_WINDOW "ExitProg"
bind . <Key-n> "NextFrame"
bind . <Key-Escape> "ExitProg"
bind .fr.toglwin <1> "StartAnimation"
bind .fr.toglwin <2> "StopAnimation"
bind .fr.toglwin <3> "StopAnimation"
bind .fr.toglwin <Control-Button-1> "StopAnimation"
.fr.usage insert end "Key-Escape Exit"
.fr.usage insert end "Key-n Next frame"
.fr.usage insert end "Mouse-L|MR Start|Stop animation"
}
CreateWindow
PrintInfo [tcl3dOglGetInfoString]
if { [file tail [info script]] eq [file tail $::argv0] } {
# If started directly from tclsh or wish, then start animation.
update
StartAnimation
}
|
